Fuel Level Sensor Assembly Mounted Sender

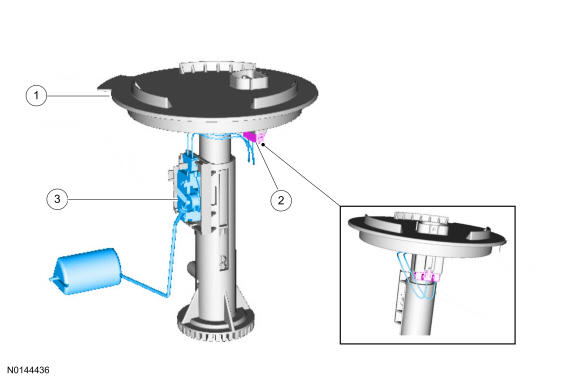

GFD322085Courtesy of FORD MOTOR COMPANY
Item Part Number Description
1 9275 Fuel level sensor assembly
2 -- Fuel level sender electrical connector (part of 9A299)
3 9A299 Fuel level sender
