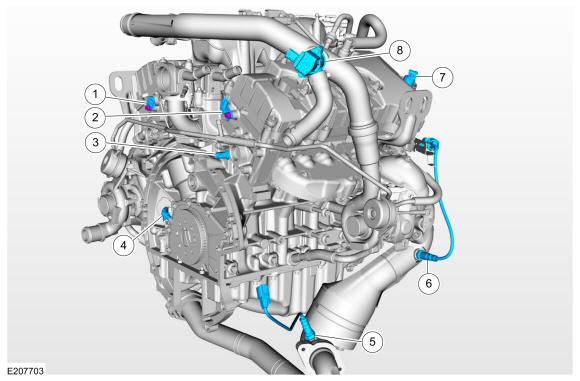

Electronic Engine Controls- RH

GFD415065Courtesy of FORD MOTOR COMPANY
Item Description
1 Left hand CMP sensor
2 Right hand CMP sensor
3 CHT sensor
4 CKP sensor
5 Right hand catalyst monitor sensor
6 Right hand HO2S
7 Right hand VCT oil control solenoid
8 Turbocharger bypass valve
