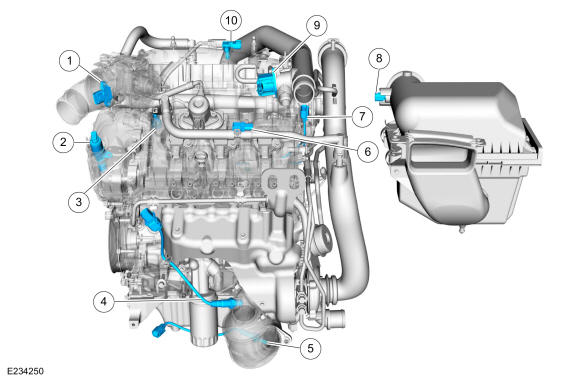

Electronic Engine Controls- LH

GFD415066Courtesy of FORD MOTOR COMPANY
Item Description
1 Turbocharger boost pressure sensor
2 Left hand VCT oil control solenoid
3 FRP sensor
4 Left handHO2S sensor
5 Left hand catalyst monitor sensor
6 Crankshaft pressure sensor
7 KS sensors
8 IAT sensor
9 Turbocharger bypass valve
10 MAPT sensor
