Front Brake Disc: Removal
WARNING: This page is about a different car, the 2017 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the wheel and tire. Refer to: Wheel and Tire .
-
NOTE: Make sure that no load is placed on the brake hose.

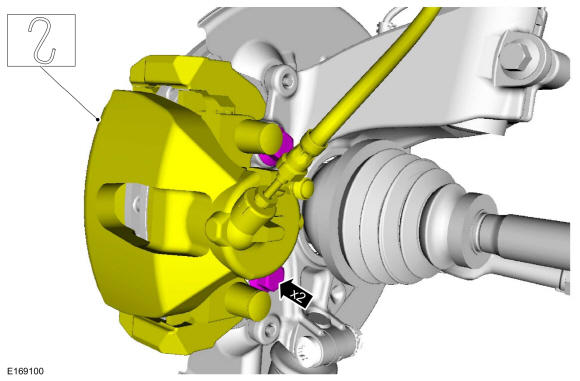

Remove the bolts and position the brake caliper and anchor plate aside.
Torque: 129 lb.ft (175 Nm)

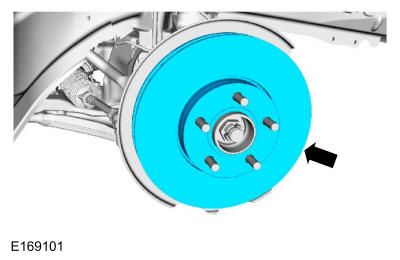

- Remove the brake disc.
