Driver Door Module (DDM): Removal

WARNING: This page is about a different car, the 2018 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: If available as a selection on the diagnostic scan tool, this step is required.

NOTE: If installing a new DDM, it is necessary to upload the module configuration information to the scan tool prior to removing the DDM. This information must be downloaded into the new DDM after installation.

If installing a new DDM, upload the module configuration information from the DDM into the scan tool by following the scan tool on screen instructions.
Remove the front door trim panel. Refer to: Front Door Trim Panel .

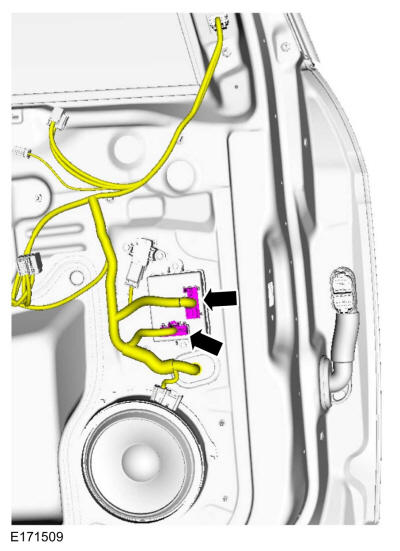

Disconnect the electrical connectors.

Courtesy of FORD MOTOR COMPANY

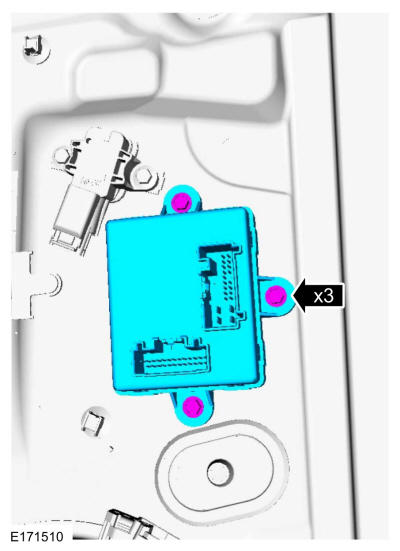

Remove the retainers and the DDM.

Courtesy of FORD MOTOR COMPANY
