Cruise Control Module (CCM): Removal

Cruise Control Module (CCM)

1. NOTE: If installing a new CCM, it is necessary to upload the module configuration information to the scan tool prior to removing the module. This information must be downloaded into the new CCM after installation.

   Using a diagnostic scan tool, begin the PMI process for the CCM following the onscreen instructions.

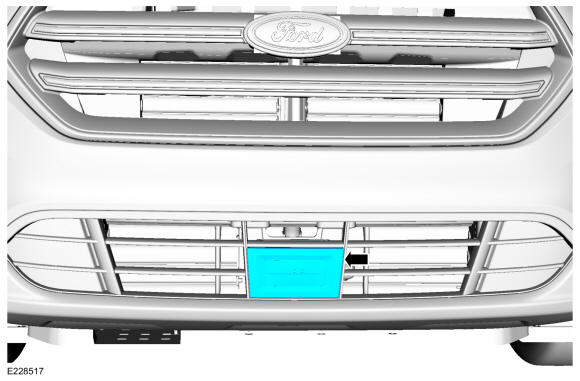

2. Remove the CCM cover.

   Courtesy of FORD MOTOR COMPANY

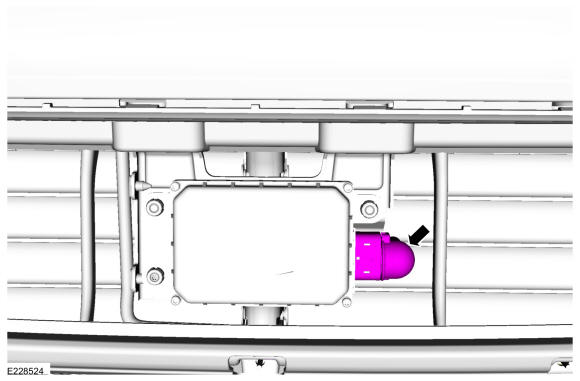

3. Disconnect the CCM electrical connector.

   Courtesy of FORD MOTOR COMPANY

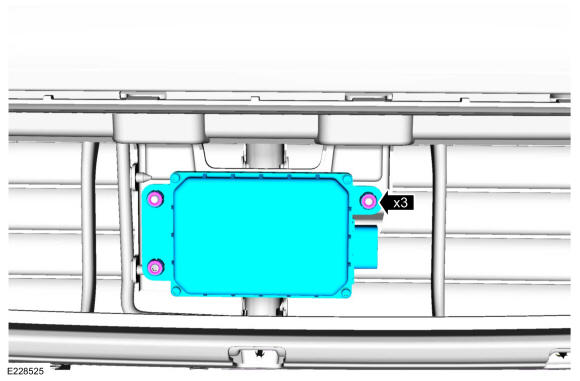

4. Release the grommets from the ballstuds and remove the CCM.

   Courtesy of FORD MOTOR COMPANY

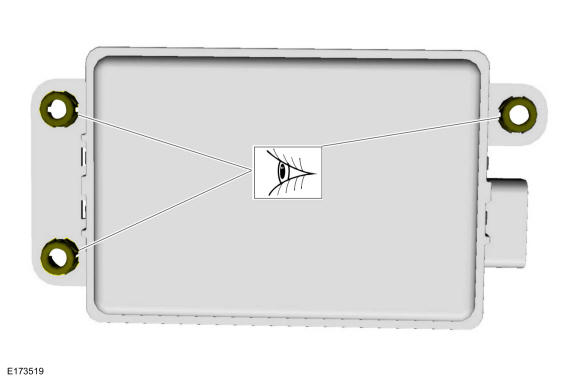

5. NOTE: Replace any damaged CCM grommets.

   Inspect the CCM grommets for damage.

   Courtesy of FORD MOTOR COMPANY

   Cruise Control Module (CCM) Bracket

6. Remove the active grille shutter. Refer to: Active Grille Shutter .
7. Disconnect the CCM electrical connector and separate the wiring harness retainers.

   Courtesy of FORD MOTOR COMPANY

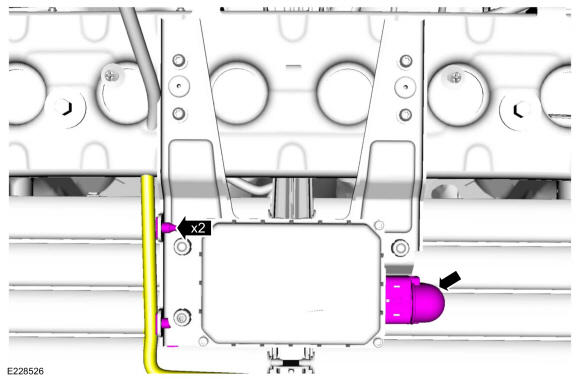

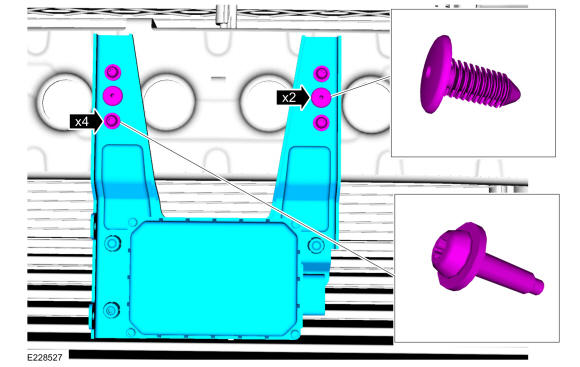

8. Remove the screws, the pushpins and the CCM bracket.

Courtesy of FORD MOTOR COMPANY
