OEM Electrical Wiring Diagram Introduction: Introduction

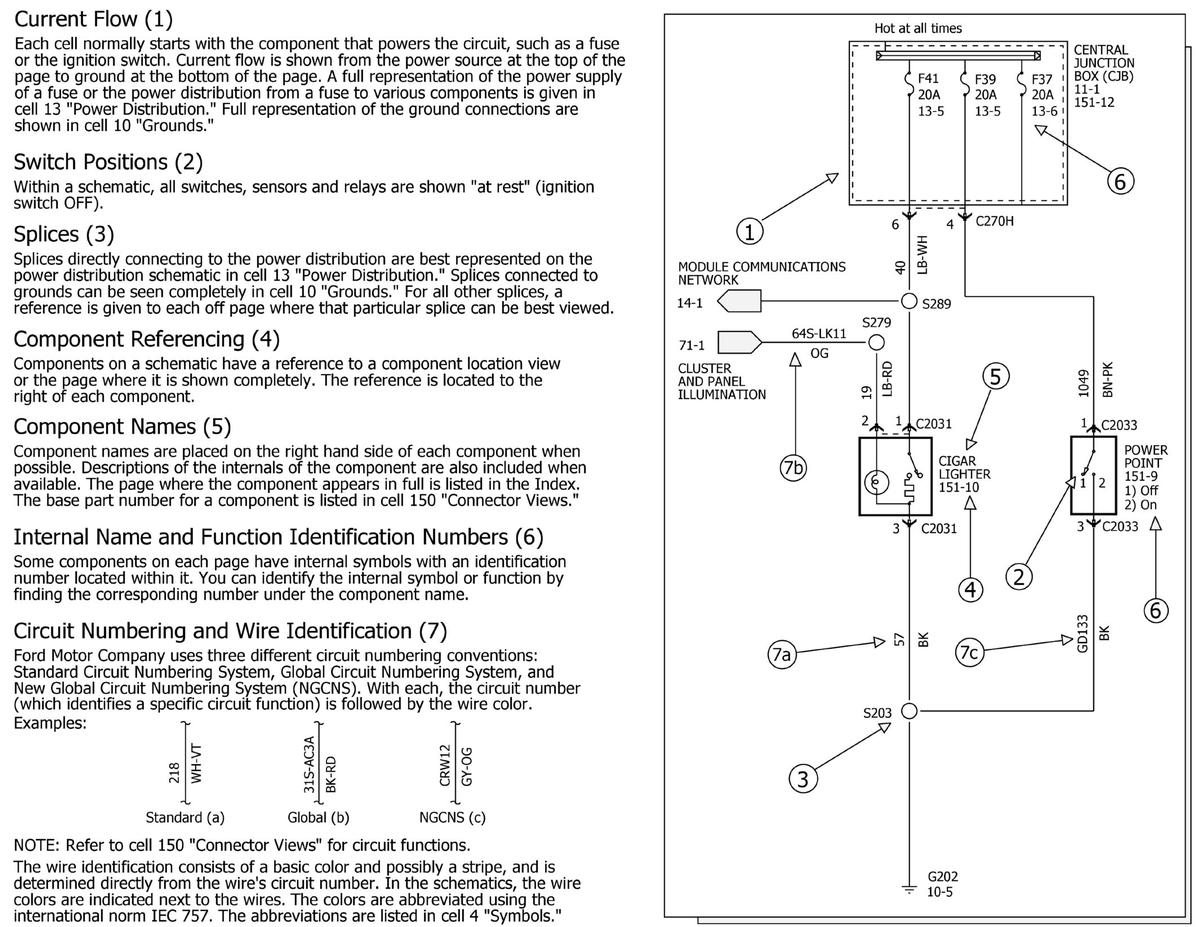

Fig 1: Locating Electrical Components (Current Flow, Switch Positions, etc.)
GFDWR52033Courtesy of FORD MOTOR COMPANY

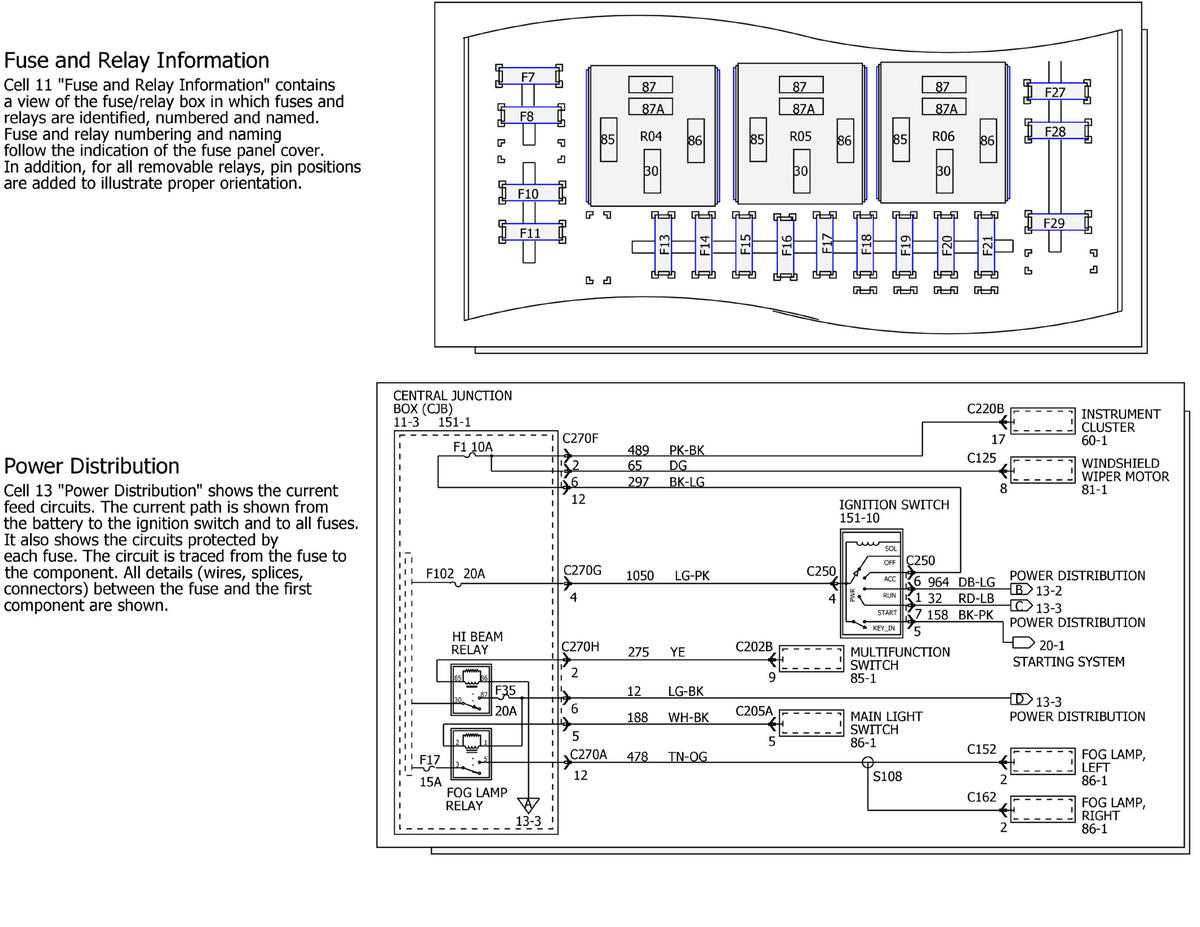

Fig 2: Fuse & Relay Information and Power Distribution
GFDWR52034Courtesy of FORD MOTOR COMPANY

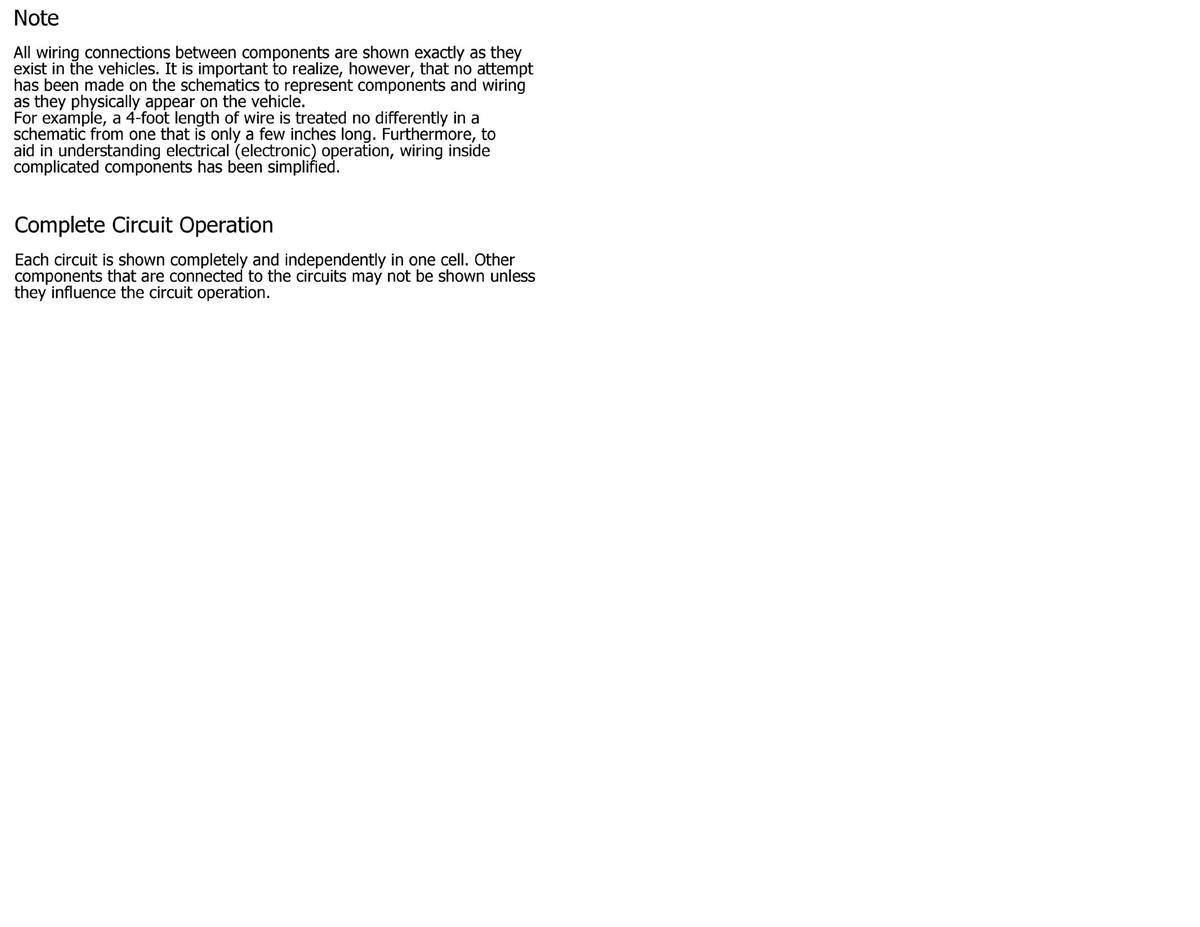

Fig 3: Note and Complete Circuit Operation
GFDWR52035Courtesy of FORD MOTOR COMPANY

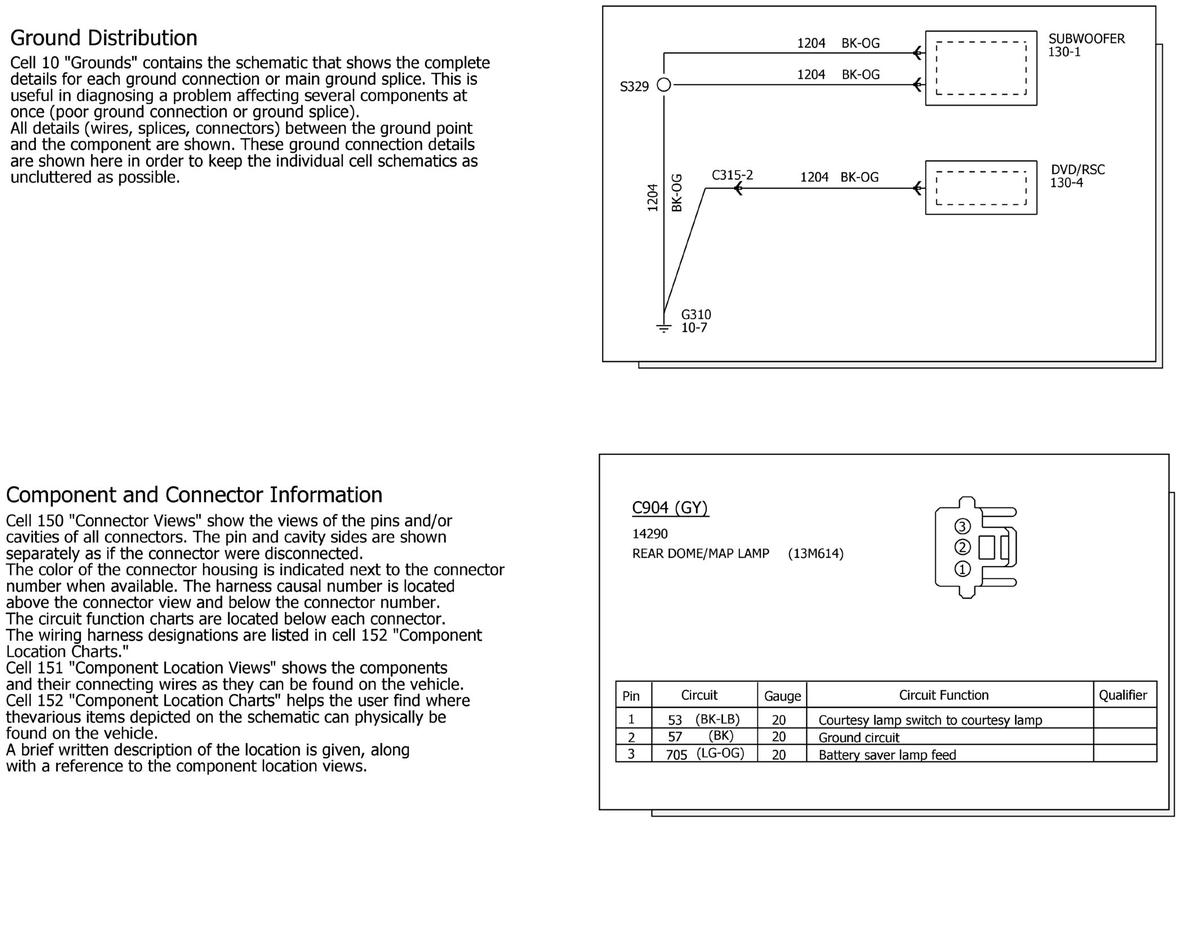

Fig 4: Ground Distribution and Component & Connector Information
GFDWR52036Courtesy of FORD MOTOR COMPANY

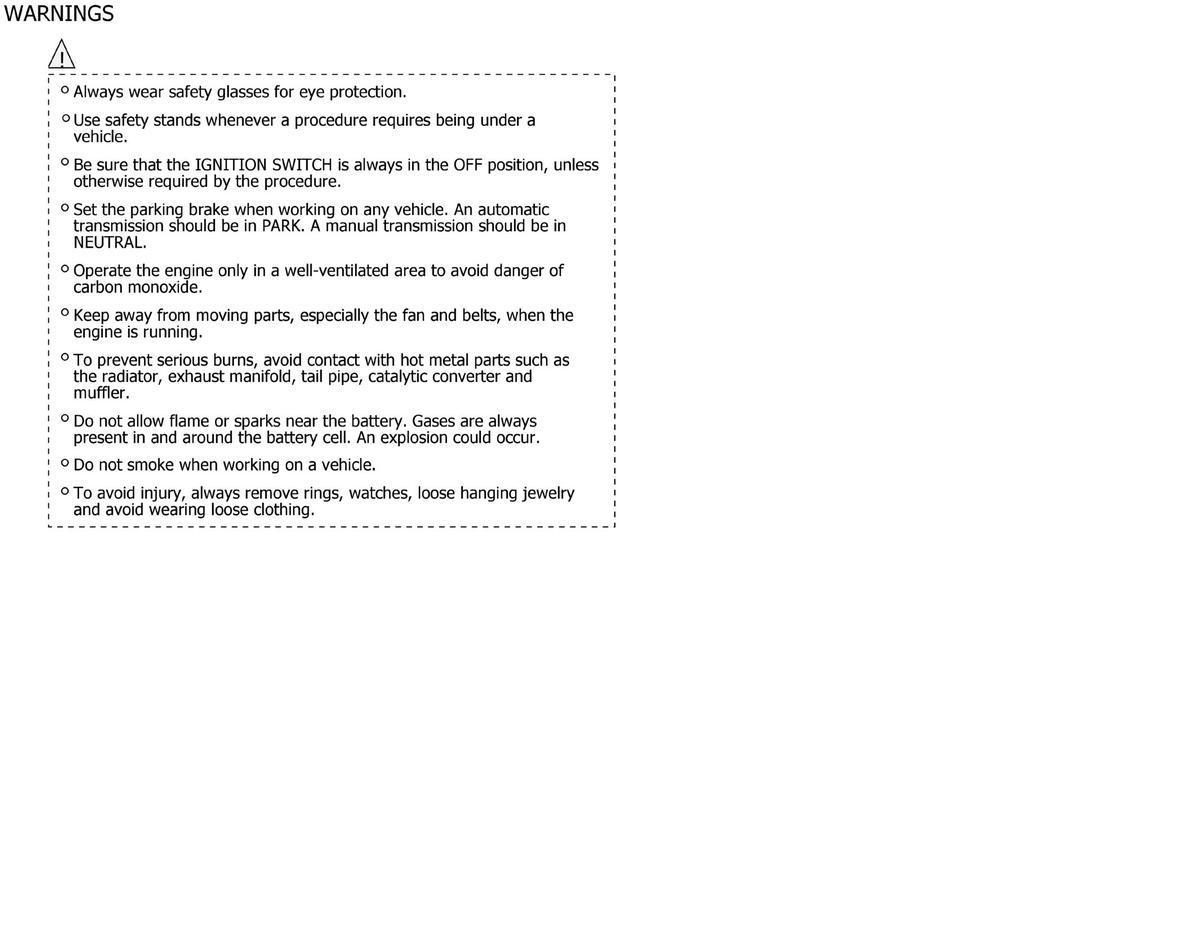

Fig 5: Warning
GFDWR52037Courtesy of FORD MOTOR COMPANY
