Occupant Classification System (OCS) Sensor: Removal

WARNING: This page is about a different car, the 2018 Ford Police Interceptor Utility and 2018 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: WARNING: The following procedure prescribes critical repair steps required for correct restraint system operation during a crash. Follow all notes and steps carefully. Failure to follow step instructions may result in incorrect operation of the restraint system and increases the risk of serious personal injury or death in a crash.
NOTE: To prevent system failure, carry out the OCS (occupant classification system) reset when a front passenger seat cushion is disassembled, a new trim cover or heater mat is installed or an OCS (occupant classification system) service kit is installed. Use a diagnostic scan tool to carry out the OCS (occupant classification system) reset command.
NOTE: OCS (occupant classification system) components (seat cushion foam, bladder with OCSM (occupant classification system module)) are calibrated to each other and are serviced as an assembly with an OCS (occupant classification system) service kit. If a new OCS (occupant classification system) or seat cushion foam are needed, a new OCS (occupant classification system) service kit must be installed. The heater mat can be serviced separately.
NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the front passenger seat. Refer to: Front Seat .

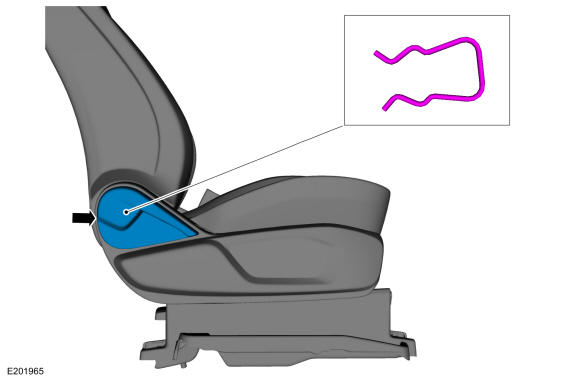

  2. If equipped. Remove the clip and the recliner handle.
    GFD336446Courtesy of FORD MOTOR COMPANY

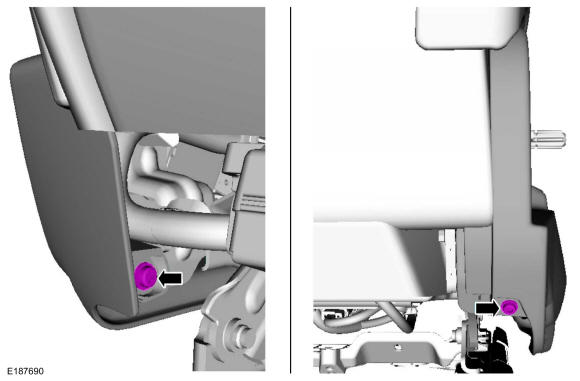

  3. Remove the side shield screws.
    GFD336447Courtesy of FORD MOTOR COMPANY

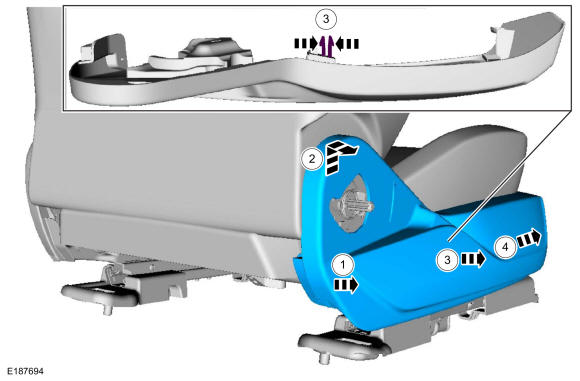

  4. Passenger manual seat. Remove the side shield.

    1. Pull the rear of the side shield out.
    2. Firmly grasp the side shield, lift up and out, separating the side shield from the recliner bracket.
    3. From underneath, squeeze the retainers together and pull out on the side shield.
    4. Slide the side shield forward.

    GFD335698Courtesy of FORD MOTOR COMPANY

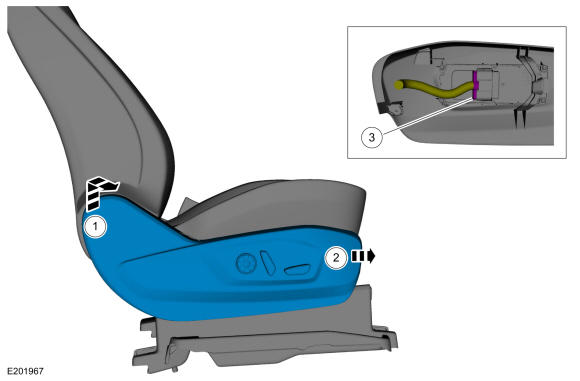

  5. NOTE: 10-way seat control switch shown, 6-way seat control switch similar.

    Passenger power seat. Remove the side shield.

    1. Lift up on the rear of the side shield and pull outward.
    2. Push the side shield forward.
    3. Disconnect the electrical connector.

    GFD336448Courtesy of FORD MOTOR COMPANY

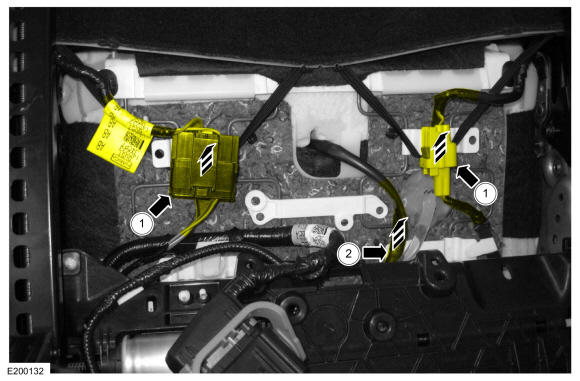

    1. Detach the electrical connector retainer(s).
    2. If equipped. Detach the cushion heater mat pigtail and position aside.
    GFD336449Courtesy of FORD MOTOR COMPANY

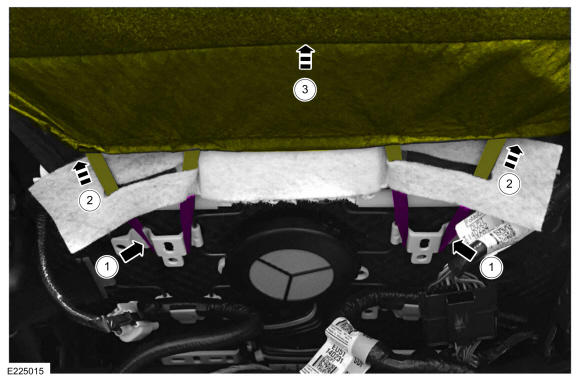

    1. Detach the backrest cover straps.
    2. If equipped. Route the backrest cover straps through the backrest blower motor snorkel.
    3. Position the backrest cover upward.
    GFD335634Courtesy of FORD MOTOR COMPANY

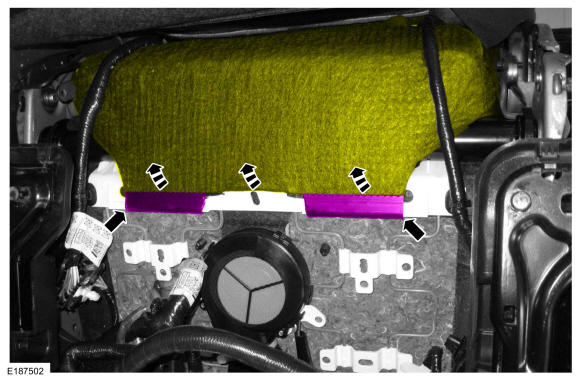

  8. Detach the cushion cover J-clips and position the cushion cover aside.
    GFD335700Courtesy of FORD MOTOR COMPANY

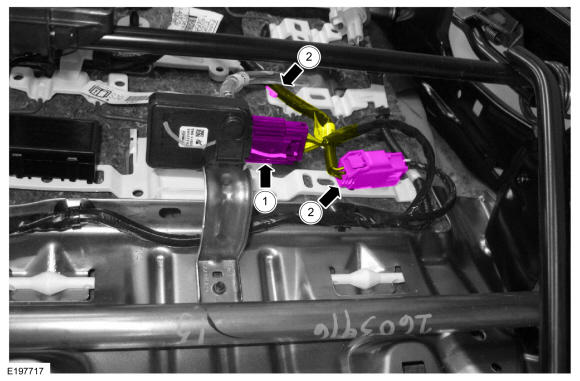

    1. Disconnect the OCS sensor.
    2. If equipped. Disconnect the cushion heater mat electrical connector and detach the wire harness retainer.
    GFD336450Courtesy of FORD MOTOR COMPANY

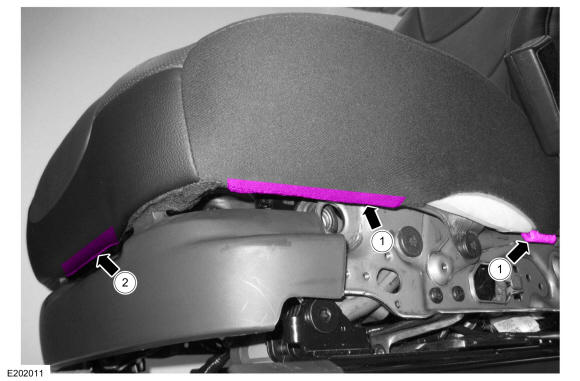

  10. Detach the seat cushion cover J-clips.

    1. On both sides. Detach the cushion cover side J-clips.
    2. Detach the cushion cover front J-clip.

    GFD336451Courtesy of FORD MOTOR COMPANY

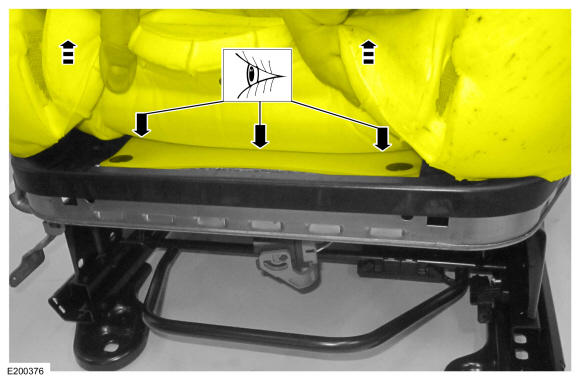

  11. NOTE: When equipped with an OCS (occupant classification system) service kit, the OCS (occupant classification system) is adhered to the bottom of the front seat cushion foam. This requires the cushion cover, foam and OCS (occupant classification system) to be positioned aside as an assembly.

    Lift the cushion foam. If the cushion foam and OCS are adhered together, then the OCS is a service kit. If nothing is adhered together, then the OCS is original equipment.

    GFD336452Courtesy of FORD MOTOR COMPANY

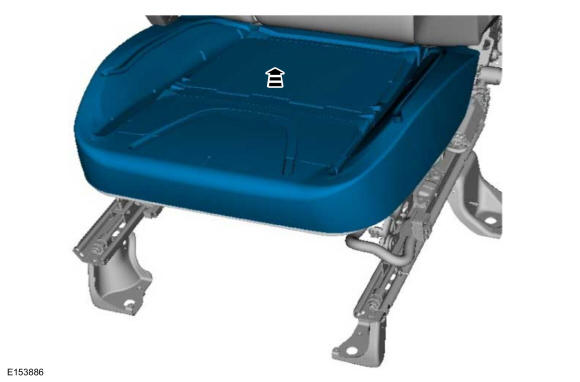

  12. If equipped. With an original equipment OCS, remove the cushion foam and cover as an assembly.
    GFD335704Courtesy of FORD MOTOR COMPANY

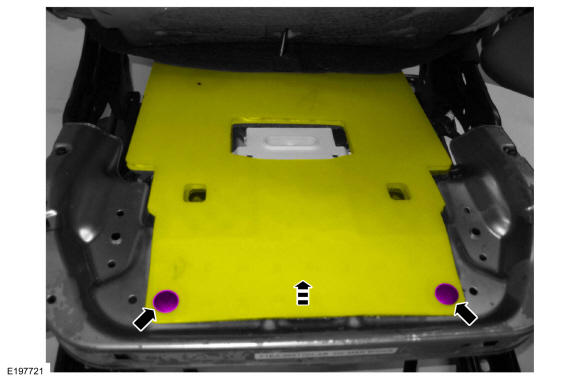

  13. NOTE: Original equipment OCS (occupant classification system) shown, service kit similar.

    Remove the pin-type retainers and raise the front of the OCS bladder.

    GFD335706Courtesy of FORD MOTOR COMPANY

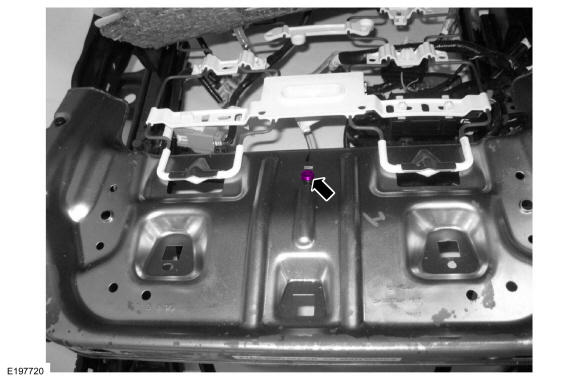

  14. Remove the OCS bracket screw.

    Torque: 44 lb.in (5 Nm)

    GFD335707Courtesy of FORD MOTOR COMPANY

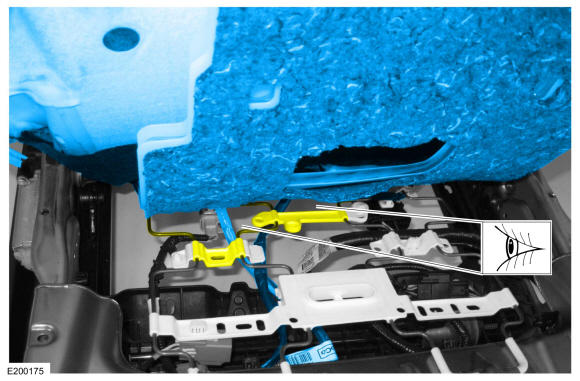

  15. NOTE: Note the location of the OCS (occupant classification system) hose and heater mat pigtail (if equipped) as it passes through the seat cushion support for proper installation.

    Route out the OCS hose, sensor, sensor bracket and heated seat cushion mat wiring pigtail (if equipped) from between the seat cushion support wires and remove the OCS.

    GFD335708Courtesy of FORD MOTOR COMPANY

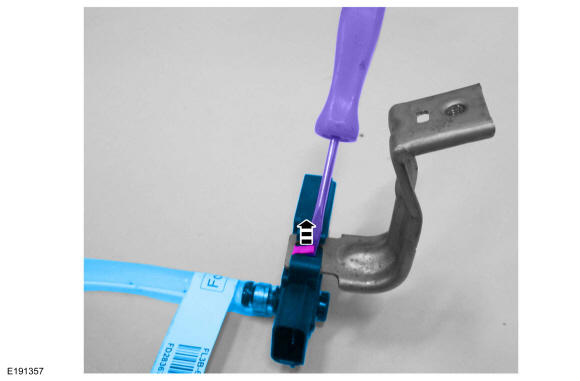

  16. NOTE: Follow the unique instructions or graphic for this step in installation.

    Bend the tab up and slide the OCS sensor off the bracket.

    GFD336453Courtesy of FORD MOTOR COMPANY

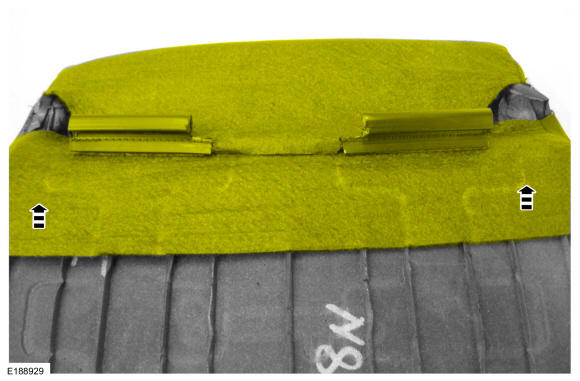

  17. Invert the rear portion of the seat cushion cover.
    GFD335713Courtesy of FORD MOTOR COMPANY
  18. NOTE: Use care when separating the seat cushion from the hook-and-arrow or the hook may be torn from the seat cushion foam.
    NOTE: Use care when separating the seat cushion trim cover from the hook-and-loop strips or the hook-and-loop strips may be torn from the seat cushion foam.

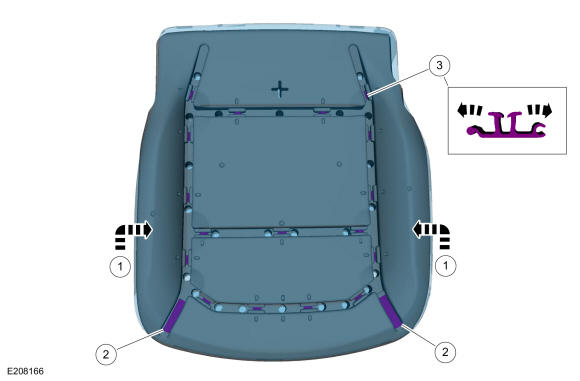

    Remove the seat cushion cover.

    1. Invert the seat cushion cover.
    2. Release the hook-and-loop strips.
    3. Release the hook-and-arrows.

GFD335714Courtesy of FORD MOTOR COMPANY
