Front Strut and Spring Assembly: Removal

WARNING: This page is about a different car, the 2018 Ford Fiesta. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: This step is only necessary when installing a new component to the left-hand side.

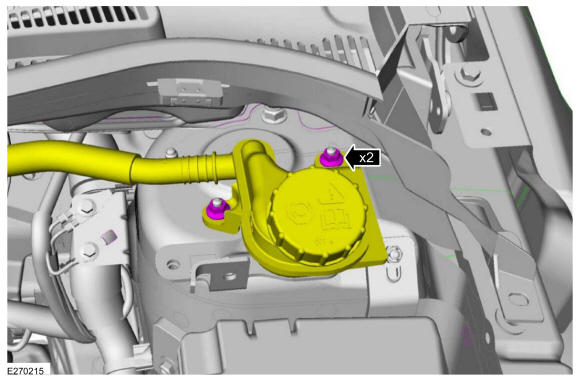

Remove the nuts and position aside the remote brake fluid reservoir.
Torque: 62 lb.in (7 Nm)

Courtesy of FORD MOTOR COMPANY

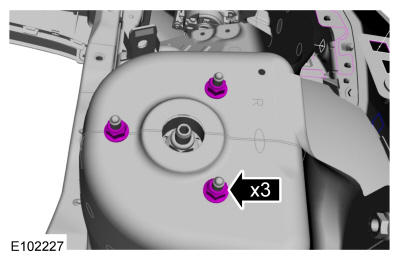

Remove the strut and spring assembly upper mount nuts.
Torque: 22 lb.ft (30 Nm)

Courtesy of FORD MOTOR COMPANY
Remove the wheel and tire. Refer to: Wheel and Tire .

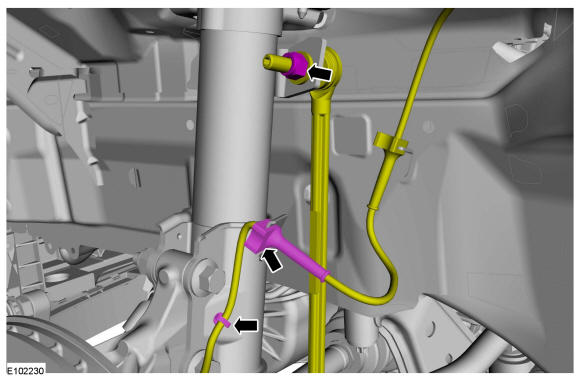

- Detach the retainer and disconnect the wheel speed sensor harness from the strut and spring assembly bracket.
- Remove the stabilizer bar link upper nut and detach the link from the strut.
  Torque: 35 lb.ft (48 Nm)
Courtesy of FORD MOTOR COMPANY
Remove the brake flexible hose bracket bolt and disconnect the hose from the strut and spring assembly.
Torque: 19 lb.ft (26 Nm)

Courtesy of FORD MOTOR COMPANY

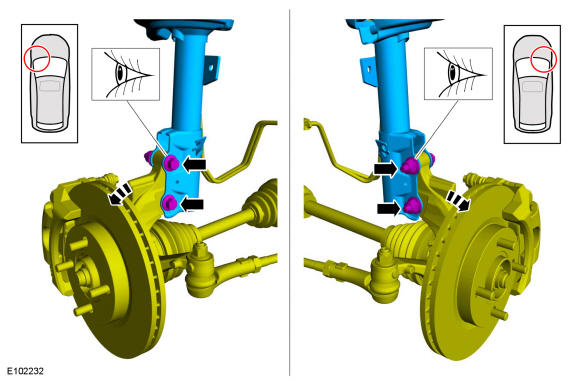

Remove the wheel knuckle-to-strut nuts, bolts and the strut and spring assembly.
Torque: Stage 1: 60 lb.ft (82 Nm) Stage 2: 90°

Courtesy of FORD MOTOR COMPANY
