Front Strut and Spring Assembly: Installation

WARNING: This page is about a different car, the 2018 Ford Fiesta. However, it is still accessible from the selected car via links, so may be relevant.
  1. To install, reverse the removal procedure.

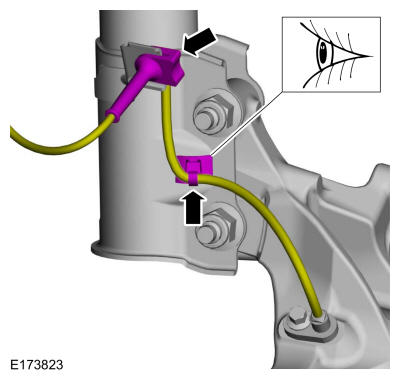

  2. NOTE: Always install a new clip on the new strut due to different design.

    Install the clip and connect the wheel speed sensor harness.

    GFD299490Courtesy of FORD MOTOR COMPANY
  3. Check and if necessary align the front end. Refer to: Front Toe Adjustment .
