Steering Wheel Rotation Sensor: Removal

  1. NOTE: The steering wheel rotation sensor may be attached to the clockspring when the clockspring is removed.

    Remove the clockspring. For additional information, refer to SUPPLEMENTAL RESTRAINT SYSTEM (2 OF 2)

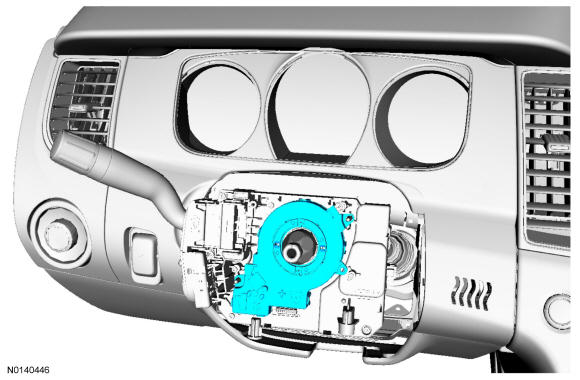

  2. Remove the steering wheel rotation sensor.
GFD319385Courtesy of FORD MOTOR COMPANY
