Bearing Inspection

For information on Ford Color Coded Illustrations refer to OEM Color Coding .

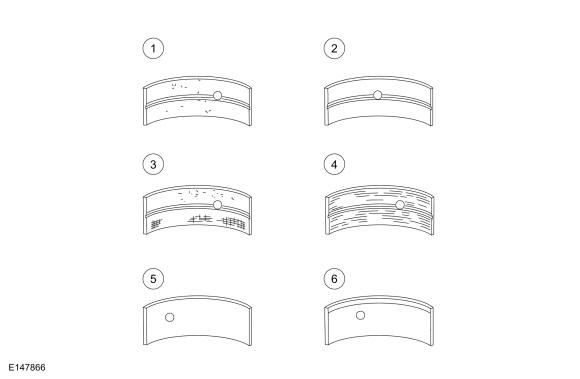

Inspection

    • Cratering - fatigue failure

    • Spot glazing - incorrect seating

    • Scratching - dirty engine oil

    • Base exposed - poor lubrication

    • Both edges worn - journal damaged

    • One edge worn - journal tapered or bearing not seated

GFD299859Courtesy of FORD MOTOR COMPANY
