Electronic Engine Controls - Component Location
WARNING: This page is about a different car, the 2018 Lincoln Continental. However, it is still accessible from the selected car via links, so may be relevant.

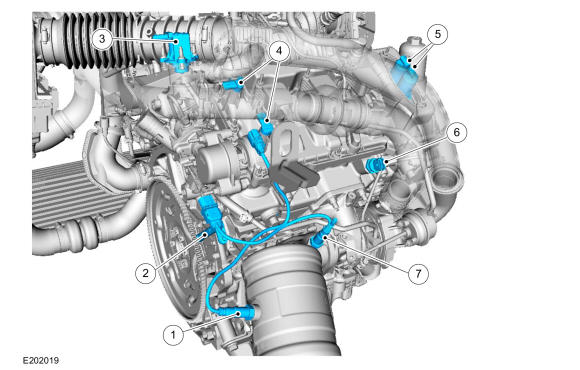

Electronic Engine Controls- RH
| Item | Description |
|---|---|
| 1 | Right hand Catalyst monitor sensor |
| 2 | CKP sensor |
| 3 | Turbocharger bypass valve |
| 4 | Right hand CMP sensors |
| 5 | Right hand VCT oil control solenoids |
| 6 | EOP sensor |
| 7 | Right hand HO2S |

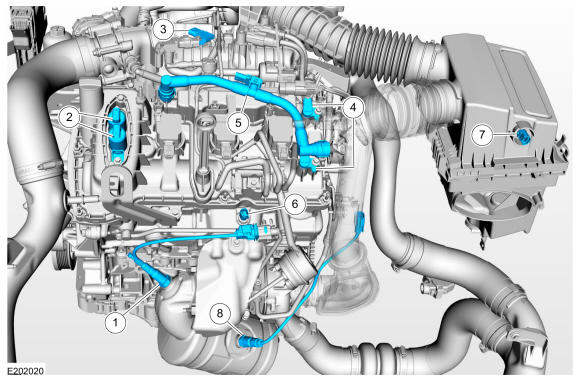

Electronic Engine Controls- LH
| Item | Description |
|---|---|
| 1 | Left hand HO2S |
| 2 | Left hand VCT oil control solenoids |
| 3 | MAP sensor |
| 4 | Left hand CMP sensors |
| 5 | Crankcase pressure sensor |
| 6 | CHT (CHT2) sensor |
| 7 | IAT sensor |
| 8 | Left hand Catalyst monitor sensor |

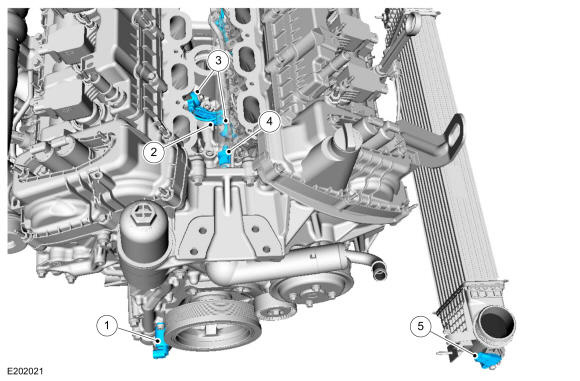

Electronic Engine Controls - Front
| Item | Description |
|---|---|
| 1 | Oil pressure control solenoid |
| 2 | ECT sensor |
| 3 | KS |
| 4 | FRP sensor |
| 5 | Turbocharger boost pressure sensor |

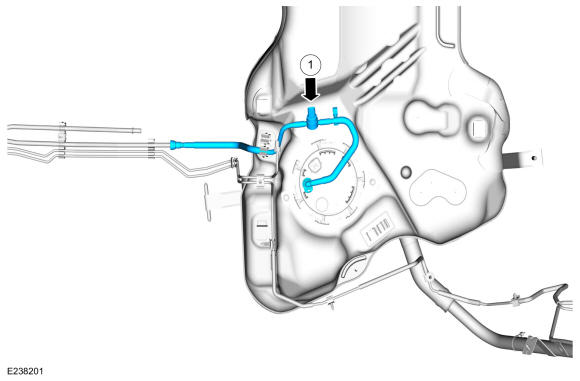

Electronic Engine Controls - Fuel
| Item | Description |
|---|---|
| 1 | Fuel pressure sensor and tube |

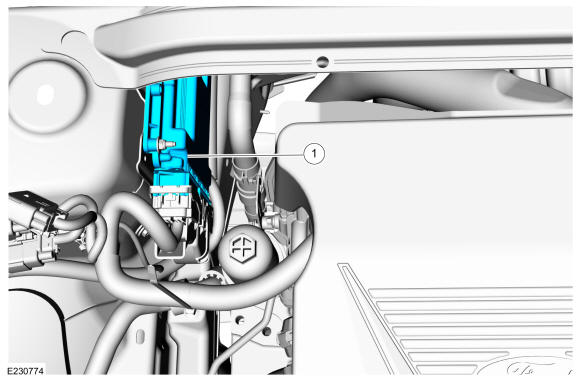

Powertrain Control Module (PCM)
| Item | Description |
|---|---|
| 1 | PCM |
