Rear Wheel Speed Sensor: Removal
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the brake disc shield. Refer to: Brake Disc Shield .

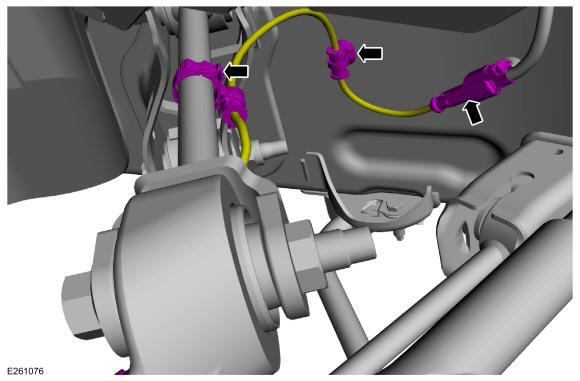

- Disconnect the wheel speed sensor electrical connector and detach the retainers.

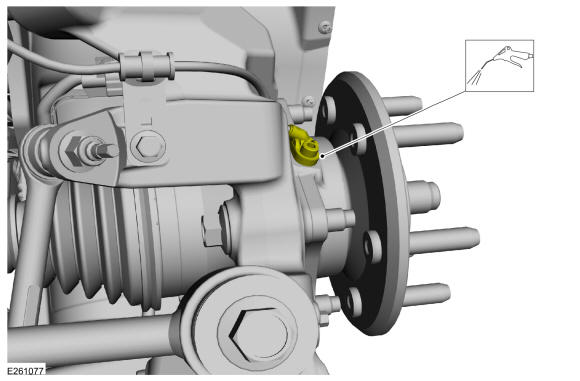

- Using compressed air, clean the area surrounding the rear wheel speed sensor.

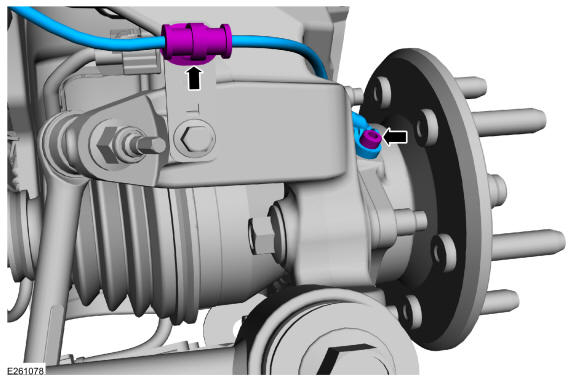

- Detach the wiring retainer, remove the bolt and the rear wheel speed sensor.
Torque: 150 lb.in (17 Nm)
