Rear Gate Trunk Module (RGTM): Removal
WARNING: This page is about a different car, the 2019 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
-
NOTE: This step is only necessary when installing a new component.
The PMI process must begin with the current RGTM installed. If the current RGTM does not respond to the diagnostic scan tool, the tool may prompt for As-Built Data as part of the repair. Using a diagnostic scan tool, begin the PMI process for the RGTM following the on-screen instructions.
- Remove the liftgate trim panel. Refer to: Liftgate Trim Panel .

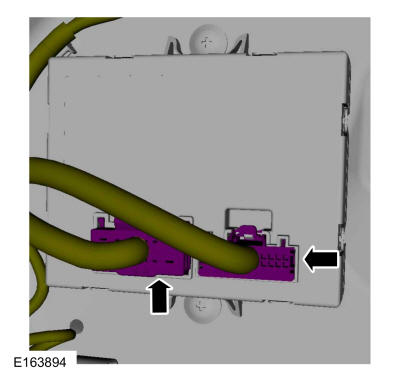

- Disconnect the electrical connectors.

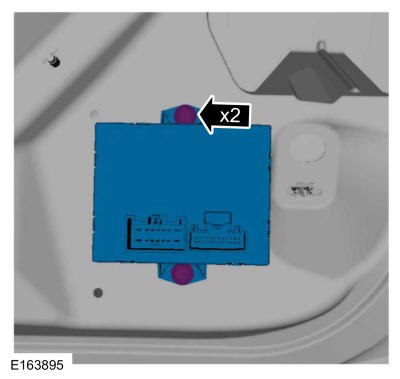

- Remove the bolts and the RGTM.
Torque
: 62 lb.in (7 Nm)
