Front Seat Track Motor: Removal

WARNING: This page is about a different car, the 2017 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: The following procedure prescribes critical repair steps required for correct restraint system operation during a crash. Follow all notes and steps carefully. Failure to follow step instructions may result in incorrect operation of the restraint system and increases the risk of serious personal injury or death in a crash.

WARNING: Wear protective gloves when handling components or parts that have pointed or sharp edges. Failure to follow this instruction may result in serious personal injury.

NOTE: Typical seat shown, others similar.

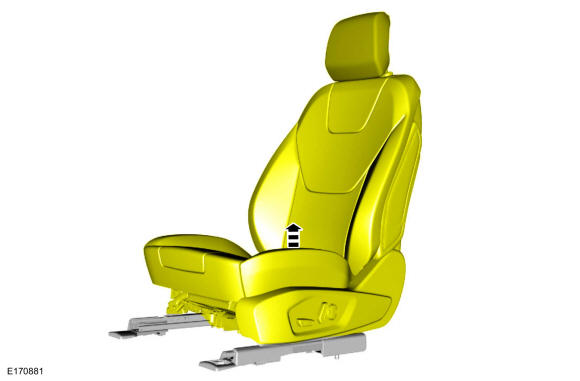

Position the front seat to the full upward position.

Courtesy of FORD MOTOR COMPANY
Remove the front seat. Refer to: Front Seat .
Remove the front seat cushion side shield screws.

Courtesy of FORD MOTOR COMPANY
Position aside the side shield.
1. Pull outward on the side shield.
2. Push the side shield forward.
Courtesy of FORD MOTOR COMPANY
1. Disconnect the seat switch electrical connector.
2. Remove the side shield.
Courtesy of FORD MOTOR COMPANY
Disconnect the front seat track motor (fore-aft) electrical connector, release the retainers and position the wire harness aside.

Courtesy of FORD MOTOR COMPANY
Release the retainers and position the wire harness aside.

Courtesy of FORD MOTOR COMPANY

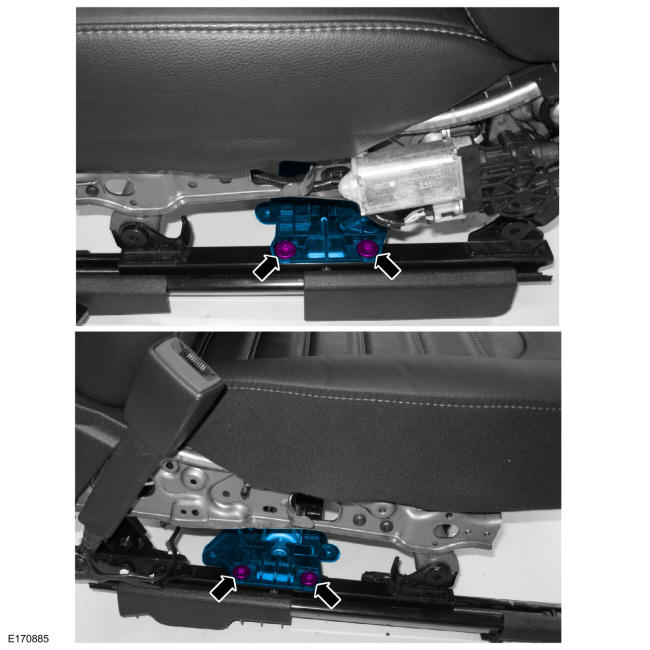

Remove the bolts and the front seat track motor.

Courtesy of FORD MOTOR COMPANY
