Throttle Body: Installation

  1. Inspect the Throttle Body (TB) gasket and replace the Throttle Body (TB) gasket as needed.

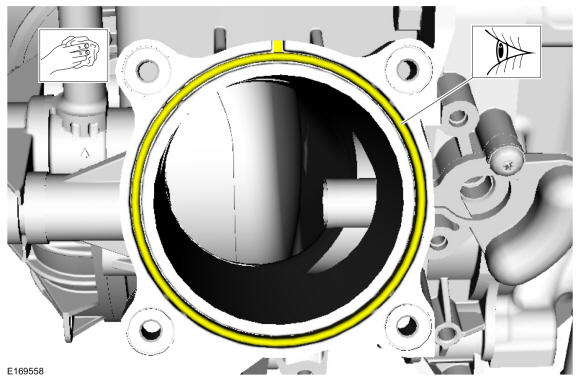

    GFD255208Courtesy of FORD MOTOR COMPANY
  2. NOTE: Make sure that the mating faces are clean and free of foreign material.

    Install the Throttle Body (TB), then install and tighten the Throttle Body (TB) bolts in the sequence shown in illustration.

    Torque

    : 89 lb.in (10 Nm)

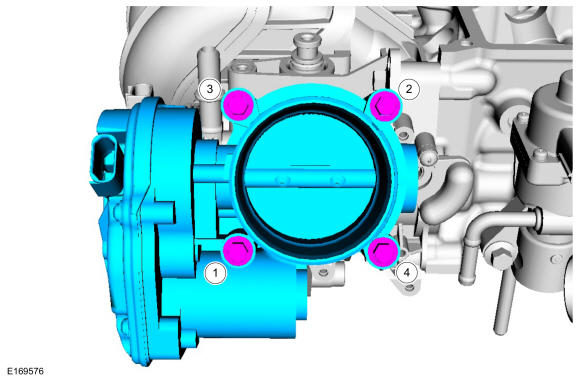

    Fig 1: Tightening Throttle Body (TB) Bolts In Sequence
    GFD255209Courtesy of FORD MOTOR COMPANY
  3. NOTE: When connecting the Throttle Body (TB) electrical connector engage the red connector locking tab after fully installing the Throttle Body (TB) electrical connector. The red tab will not slide forward unless the Throttle Body (TB) electrical connector is fully installed.

    Connect the Throttle Body (TB) electrical connector.

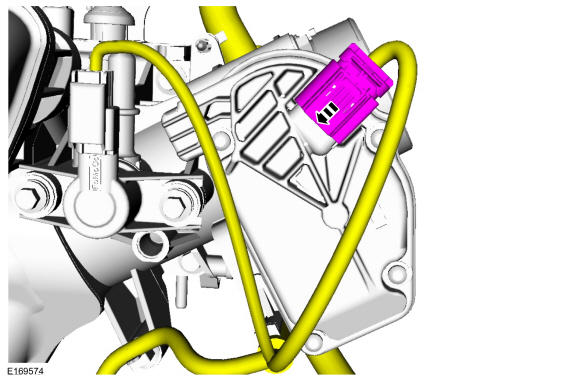

    GFD255210Courtesy of FORD MOTOR COMPANY
  4. Install the air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe .
