Module Communications Network

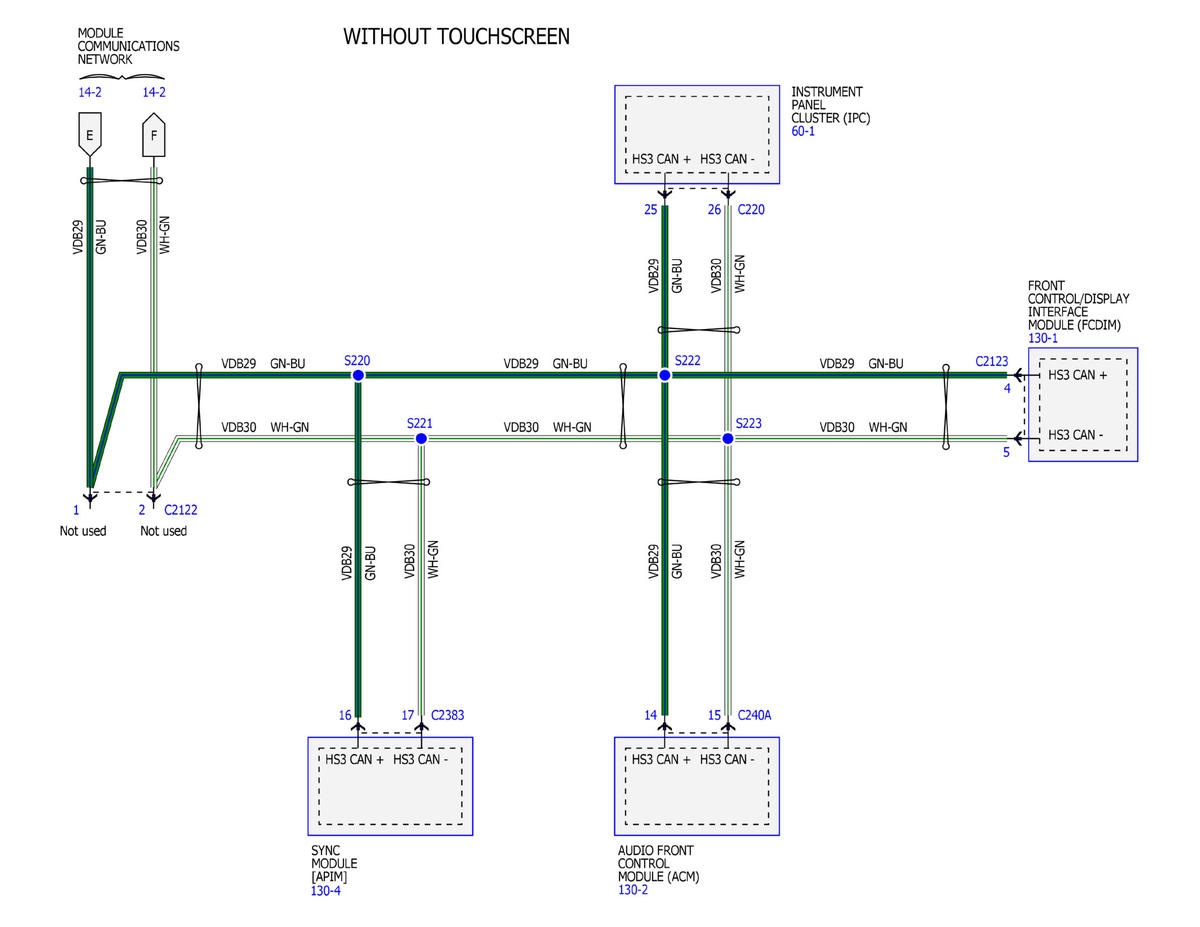

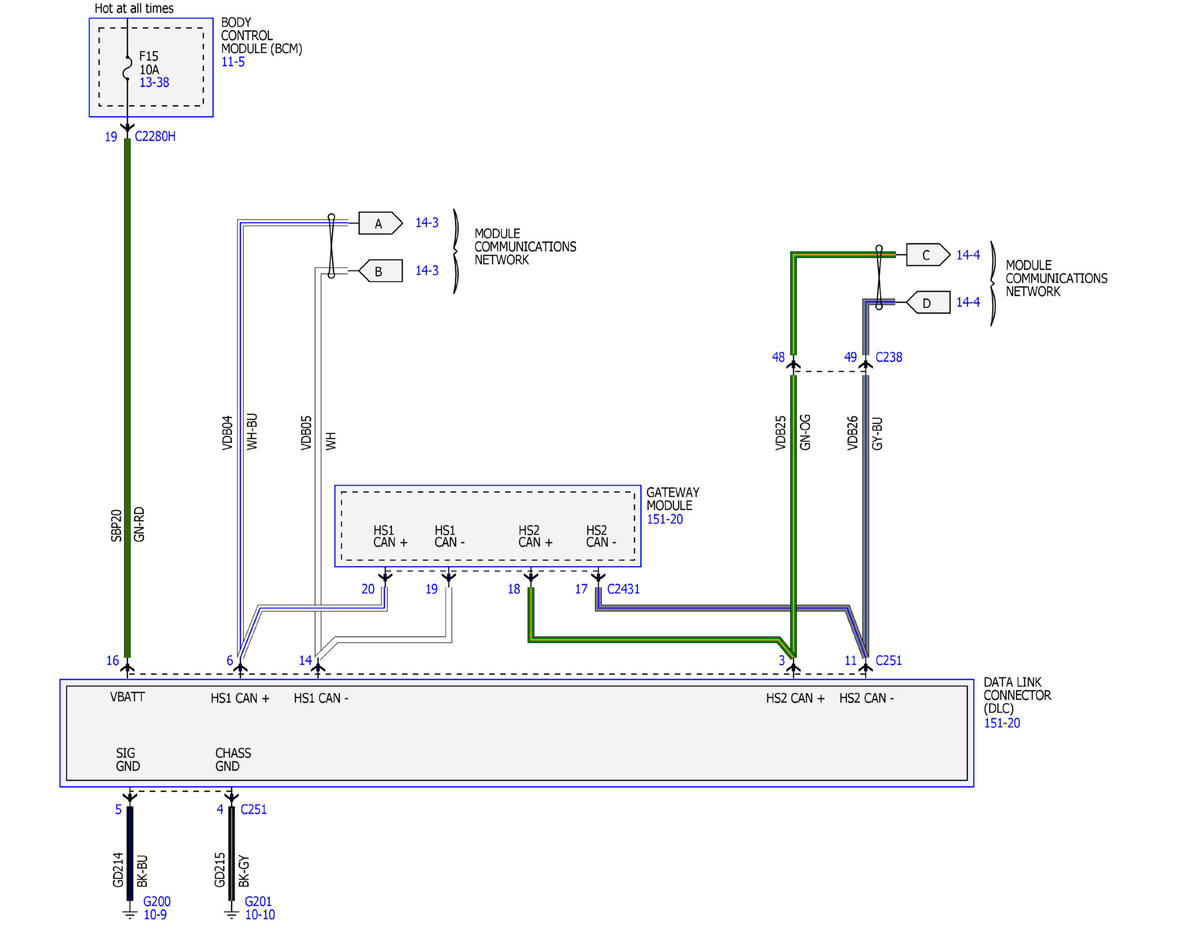

Fig 1: Module Communications Network Wiring Diagrams (1 of 16)

Courtesy of FORD MOTOR COMPANY

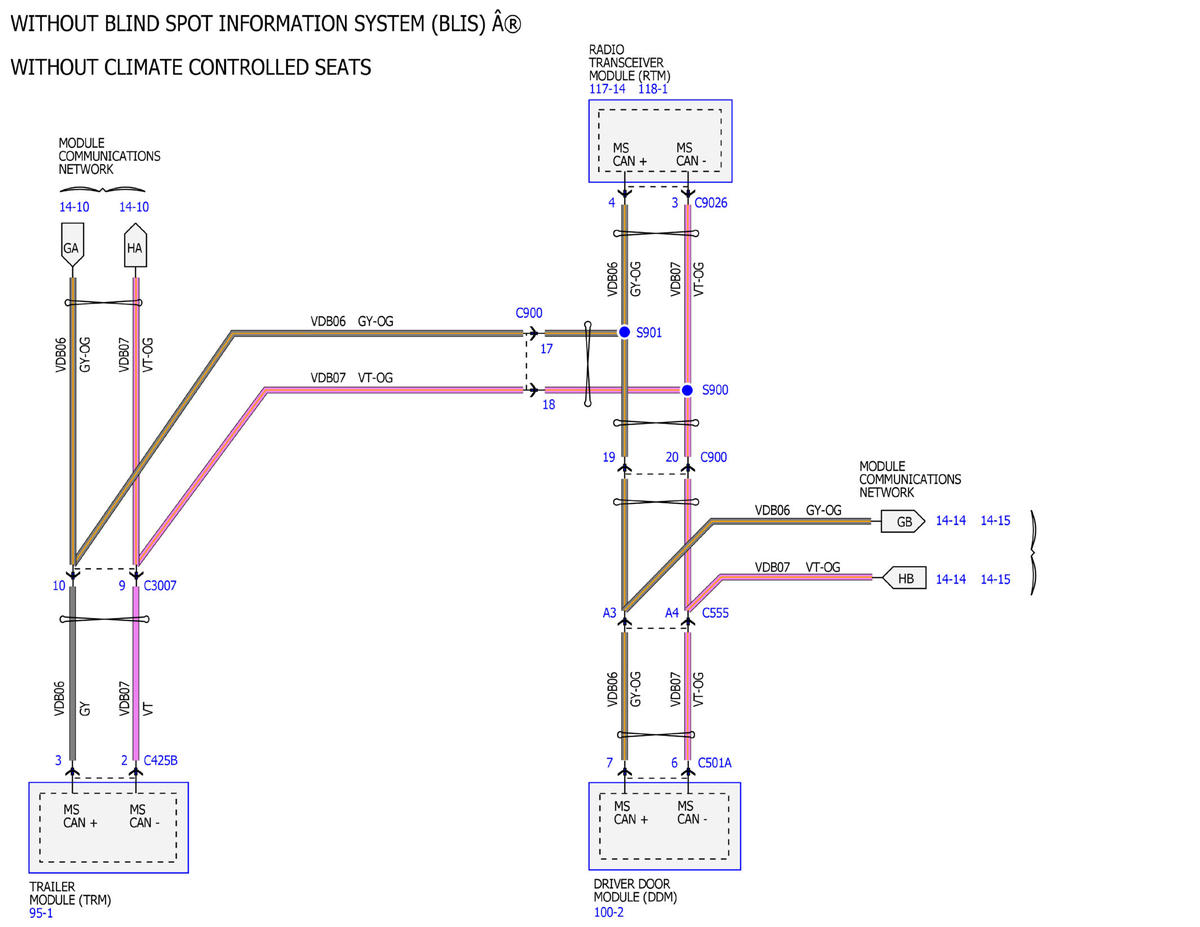

Fig 2: Module Communications Network Wiring Diagrams (2 of 16)

Courtesy of FORD MOTOR COMPANY

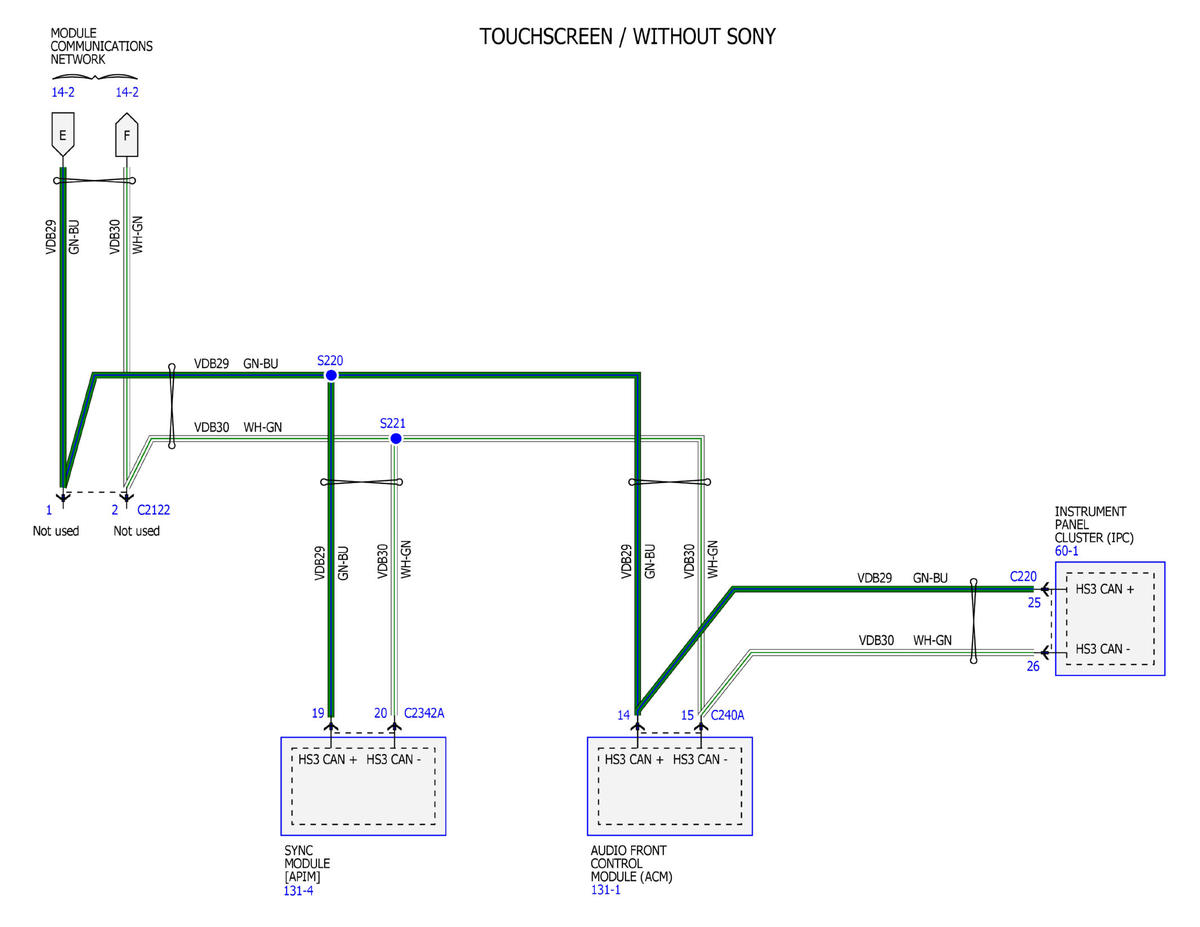

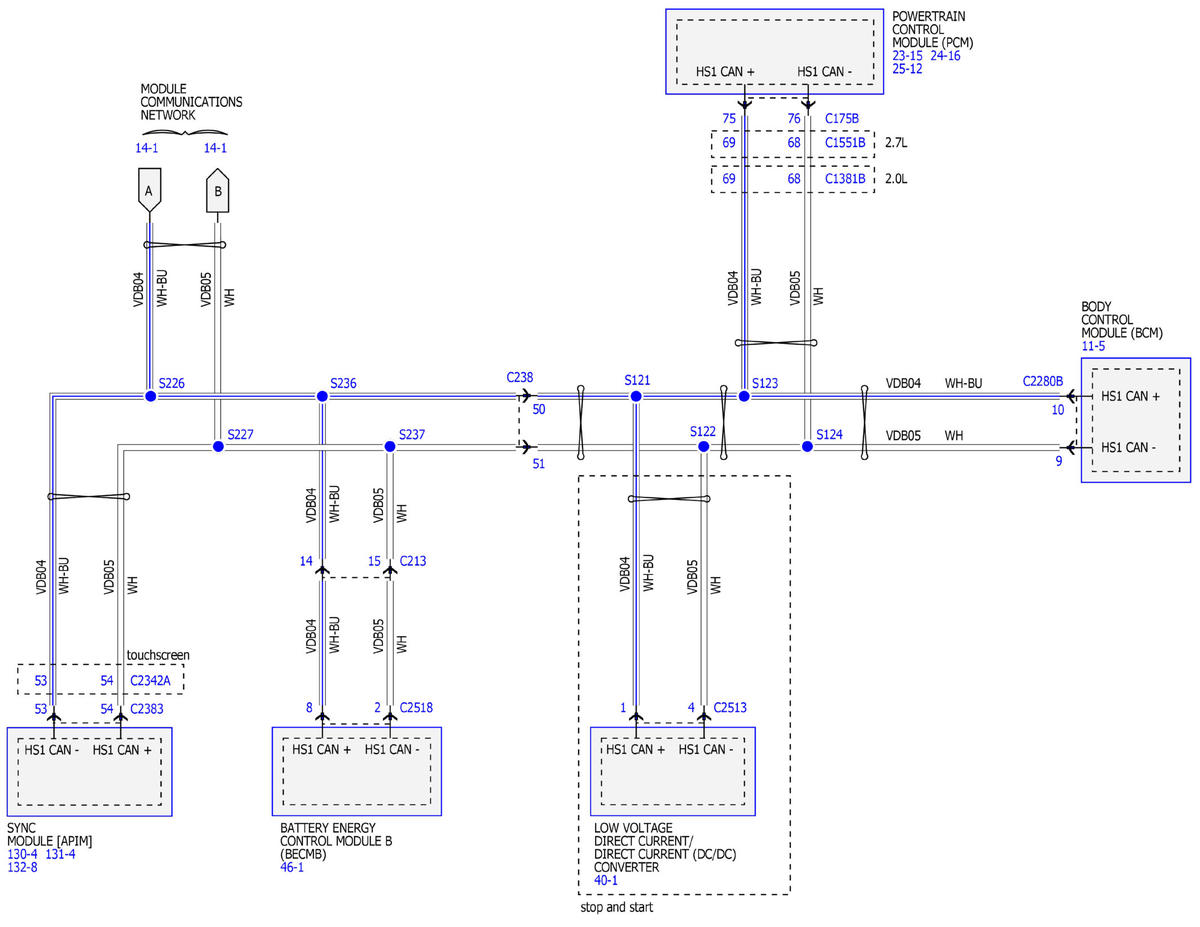

Fig 3: Module Communications Network Wiring Diagrams (3 of 16)

Courtesy of FORD MOTOR COMPANY

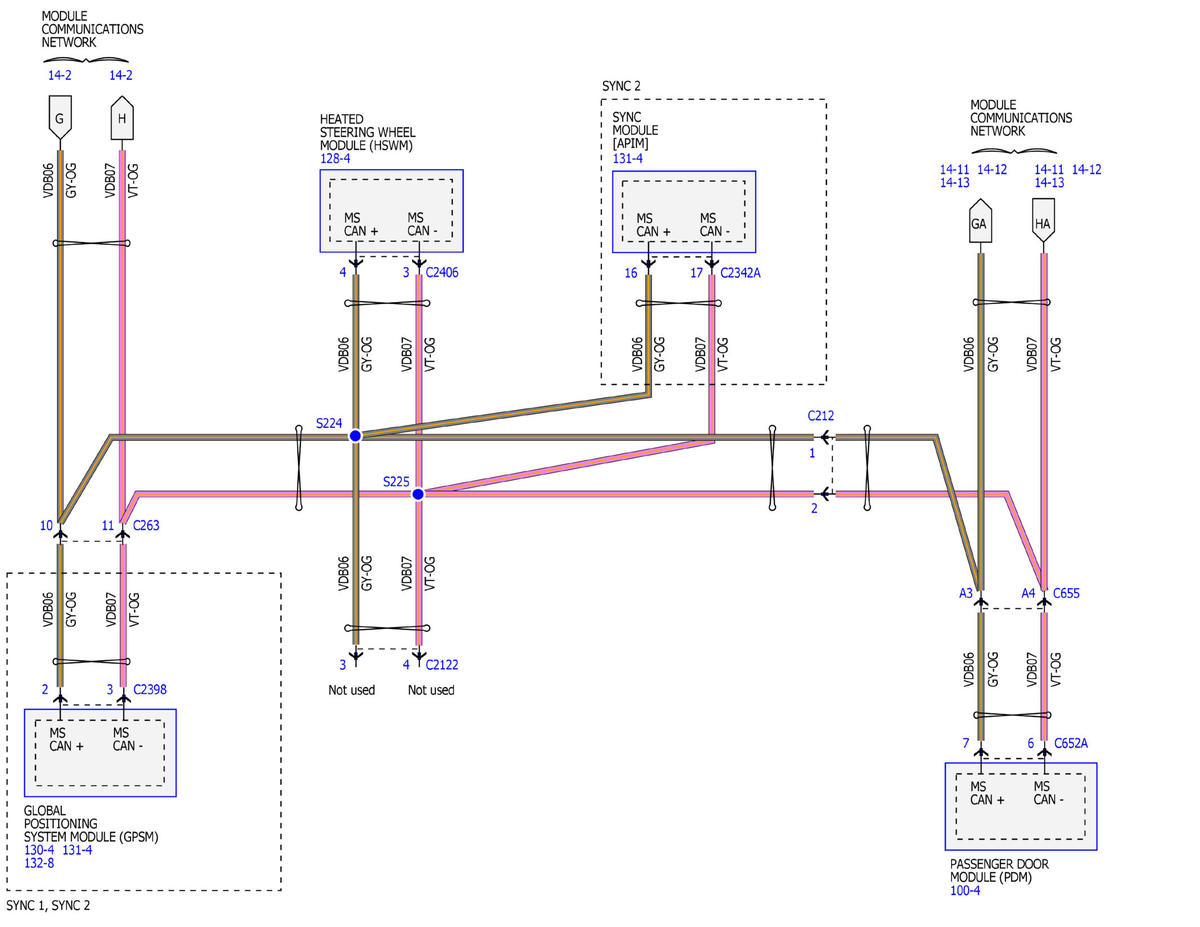

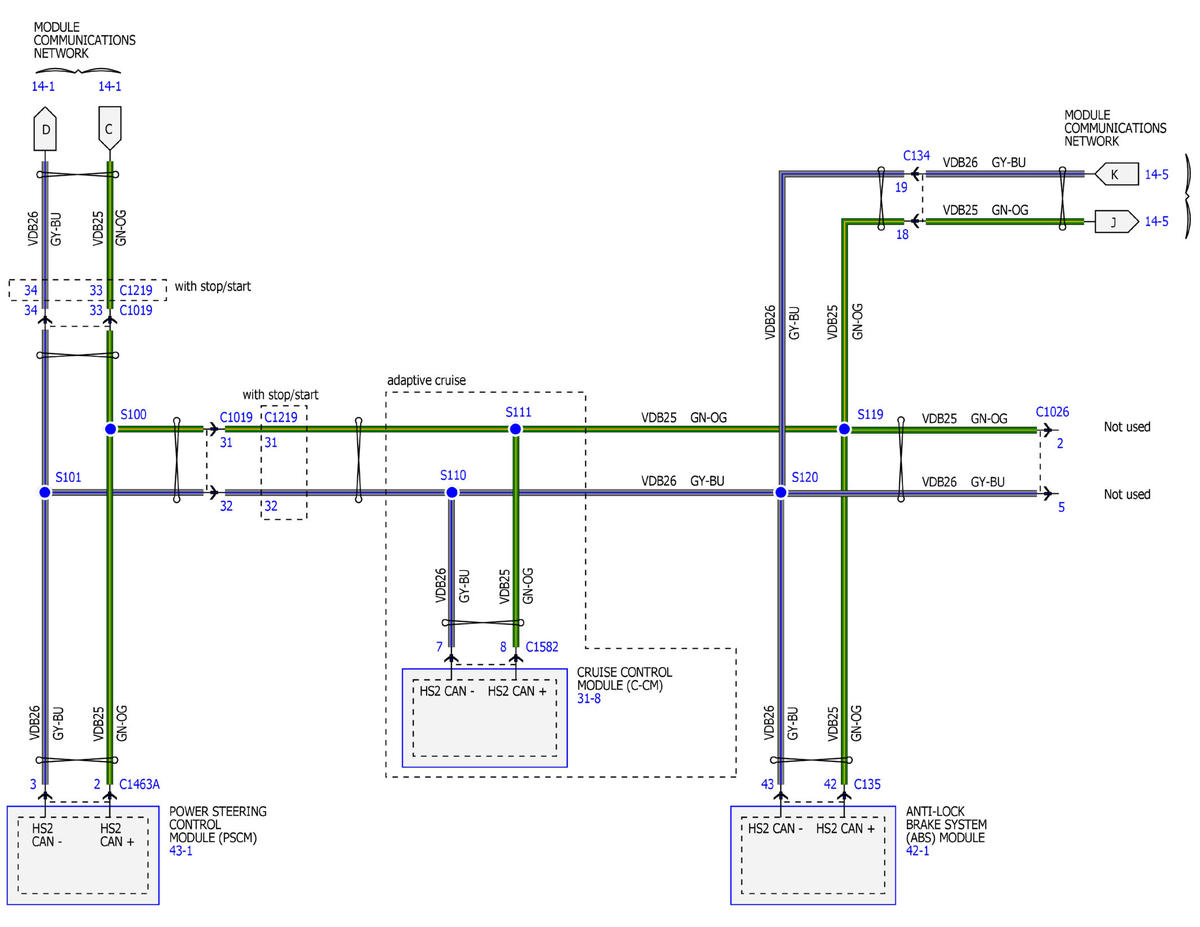

Fig 4: Module Communications Network Wiring Diagrams (4 of 16)

Courtesy of FORD MOTOR COMPANY

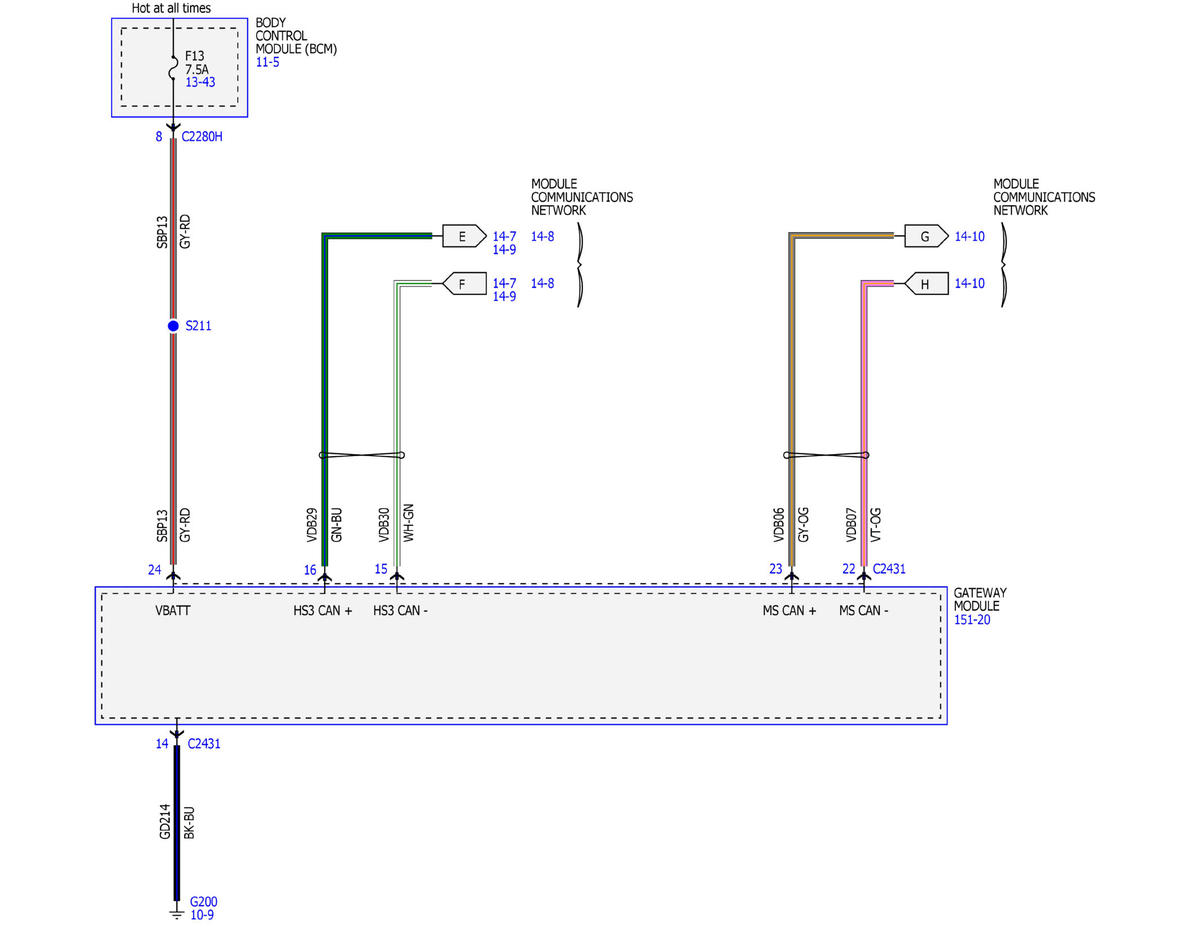

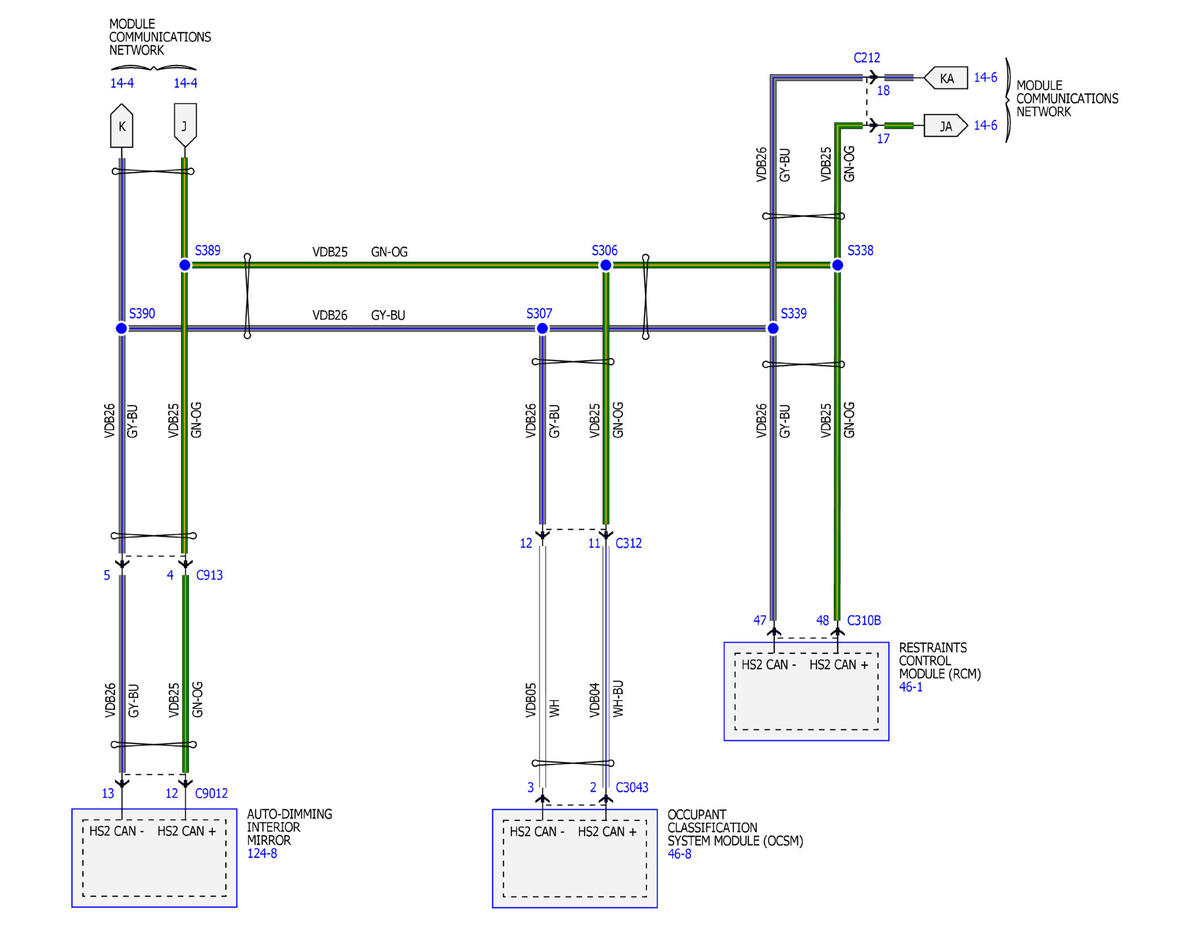

Fig 5: Module Communications Network Wiring Diagrams (5 of 16)

Courtesy of FORD MOTOR COMPANY

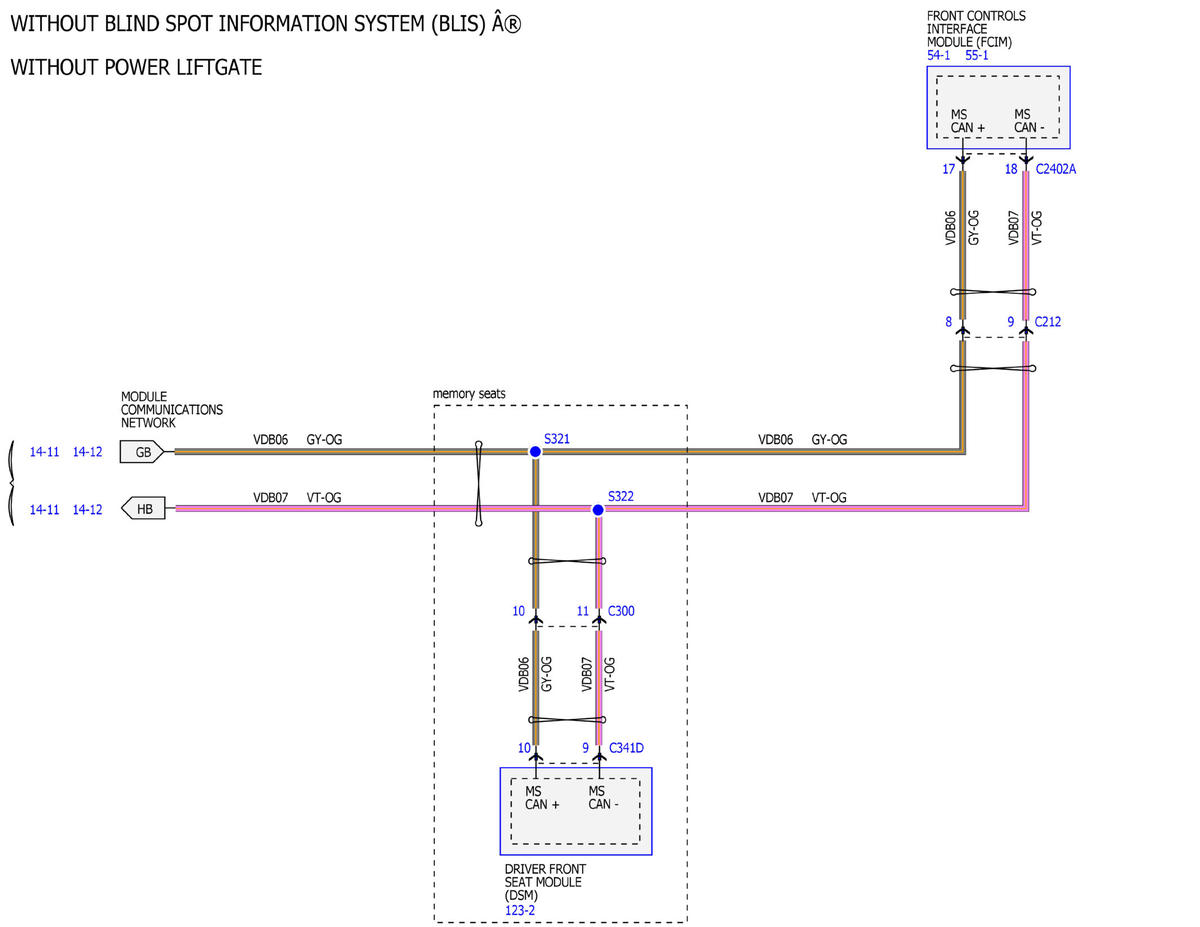

Fig 6: Module Communications Network Wiring Diagrams (6 of 16)

Courtesy of FORD MOTOR COMPANY

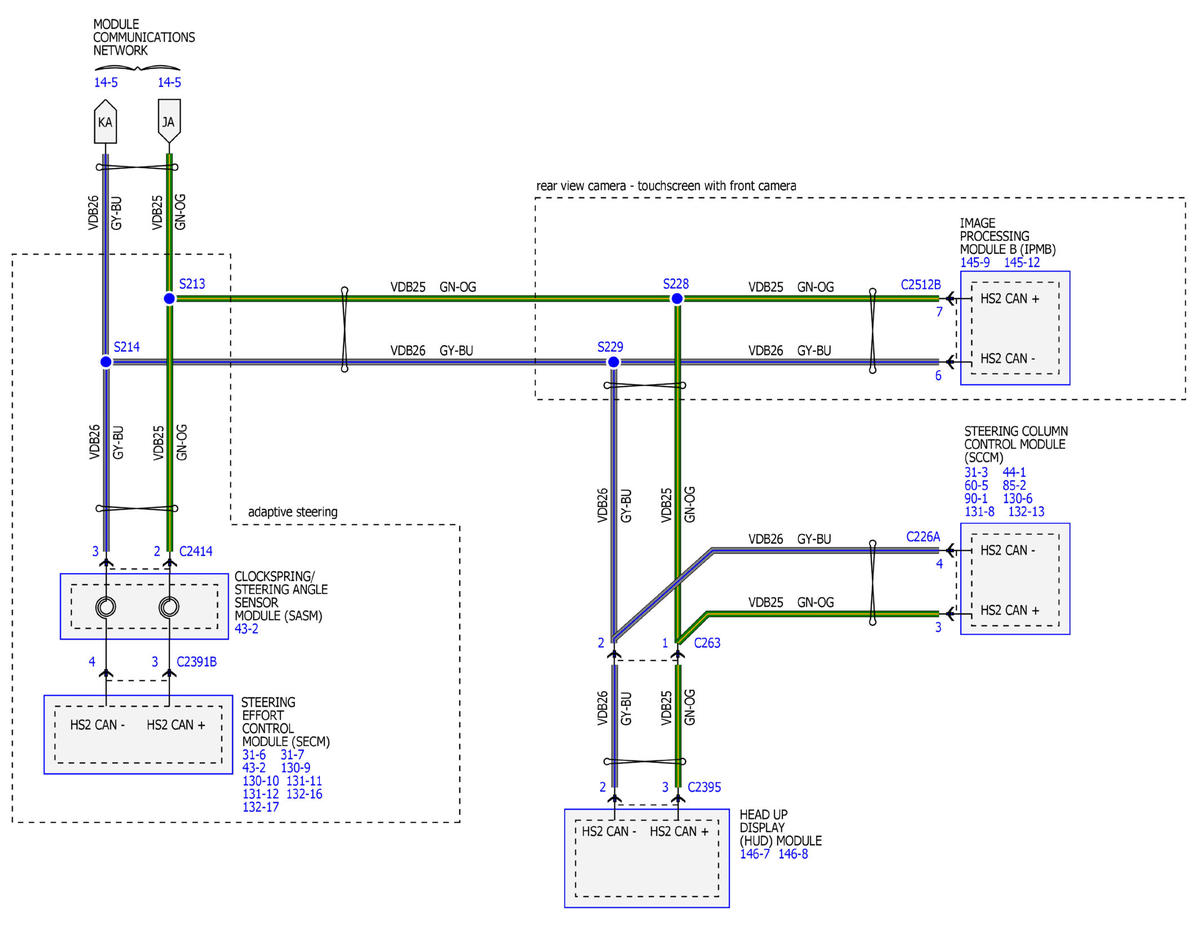

Fig 7: Module Communications Network Wiring Diagrams (7 of 16)

Courtesy of FORD MOTOR COMPANY

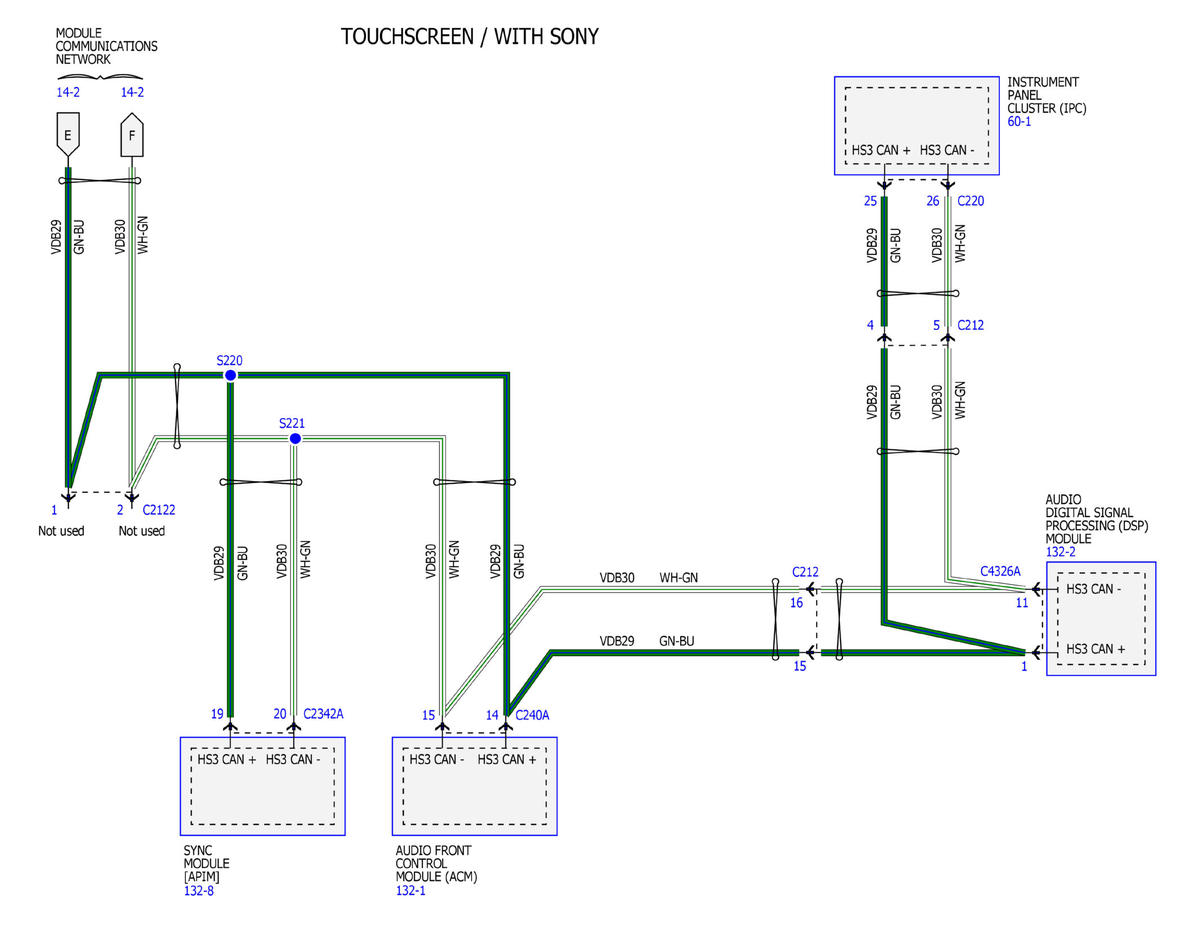

Fig 8: Module Communications Network Wiring Diagrams (8 of 16)

Courtesy of FORD MOTOR COMPANY

Fig 9: Module Communications Network Wiring Diagrams (9 of 16)

Courtesy of FORD MOTOR COMPANY

Fig 10: Module Communications Network Wiring Diagrams (10 of 16)

Courtesy of FORD MOTOR COMPANY

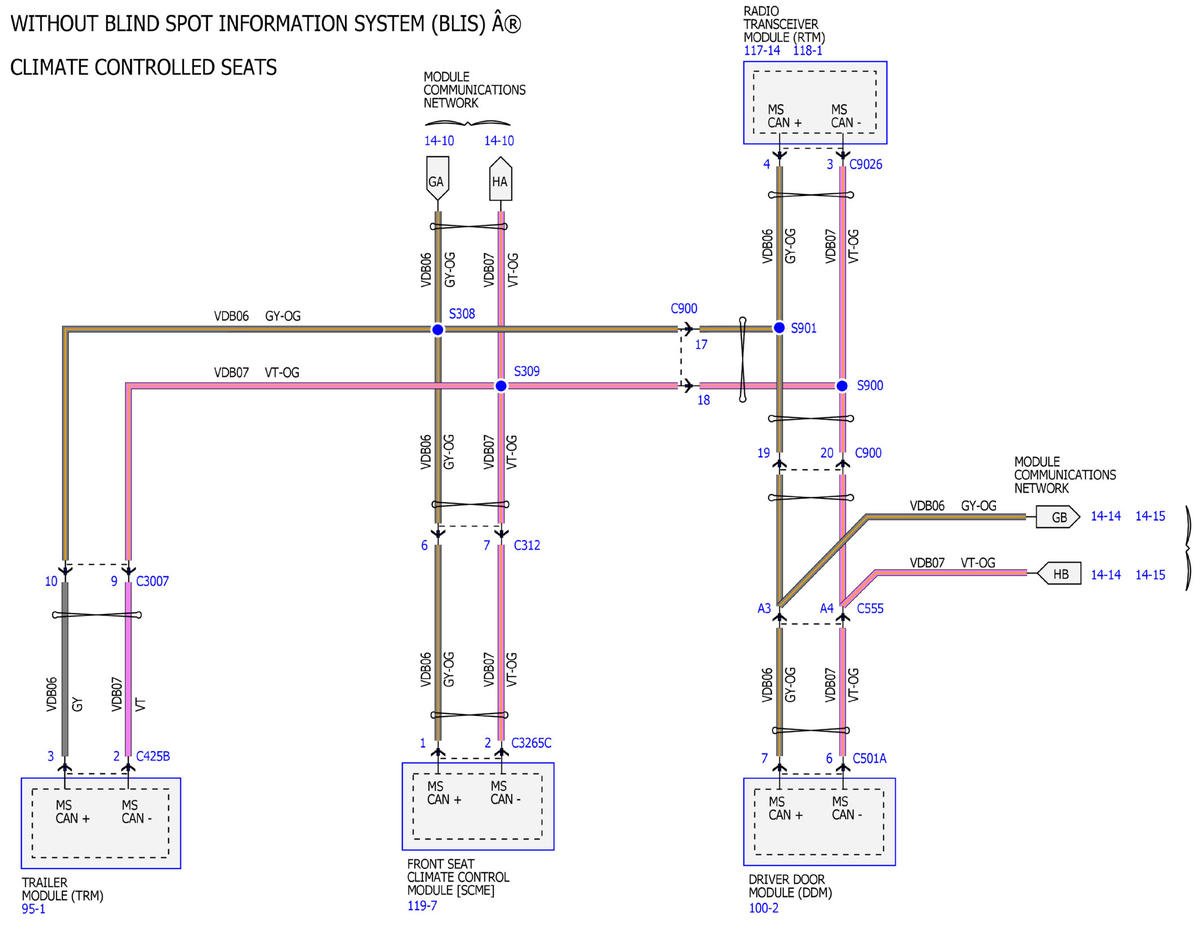

Fig 11: Module Communications Network Wiring Diagrams (11 of 16)

Courtesy of FORD MOTOR COMPANY

Fig 12: Module Communications Network Wiring Diagrams (12 of 16)

Courtesy of FORD MOTOR COMPANY

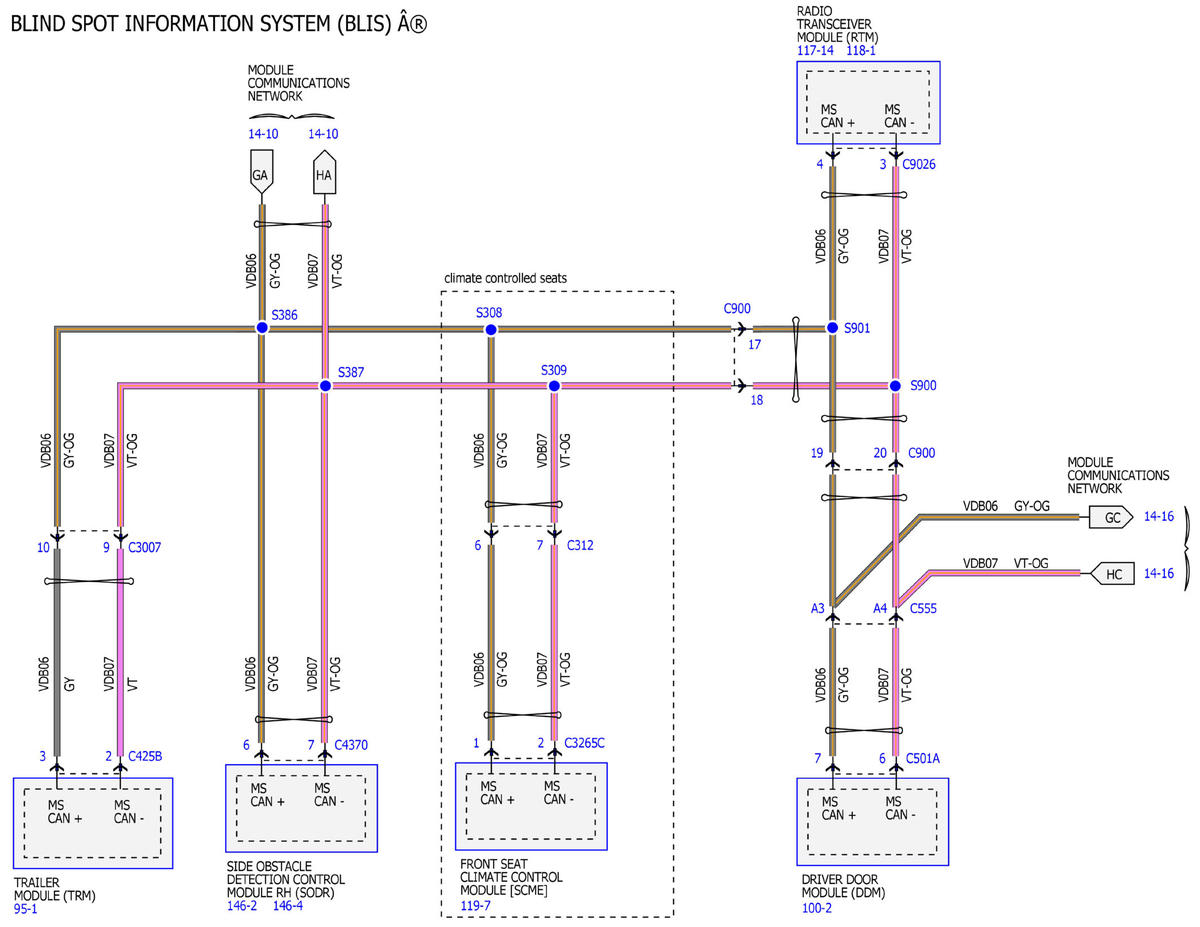

Fig 13: Module Communications Network Wiring Diagrams (13 of 16)

Courtesy of FORD MOTOR COMPANY

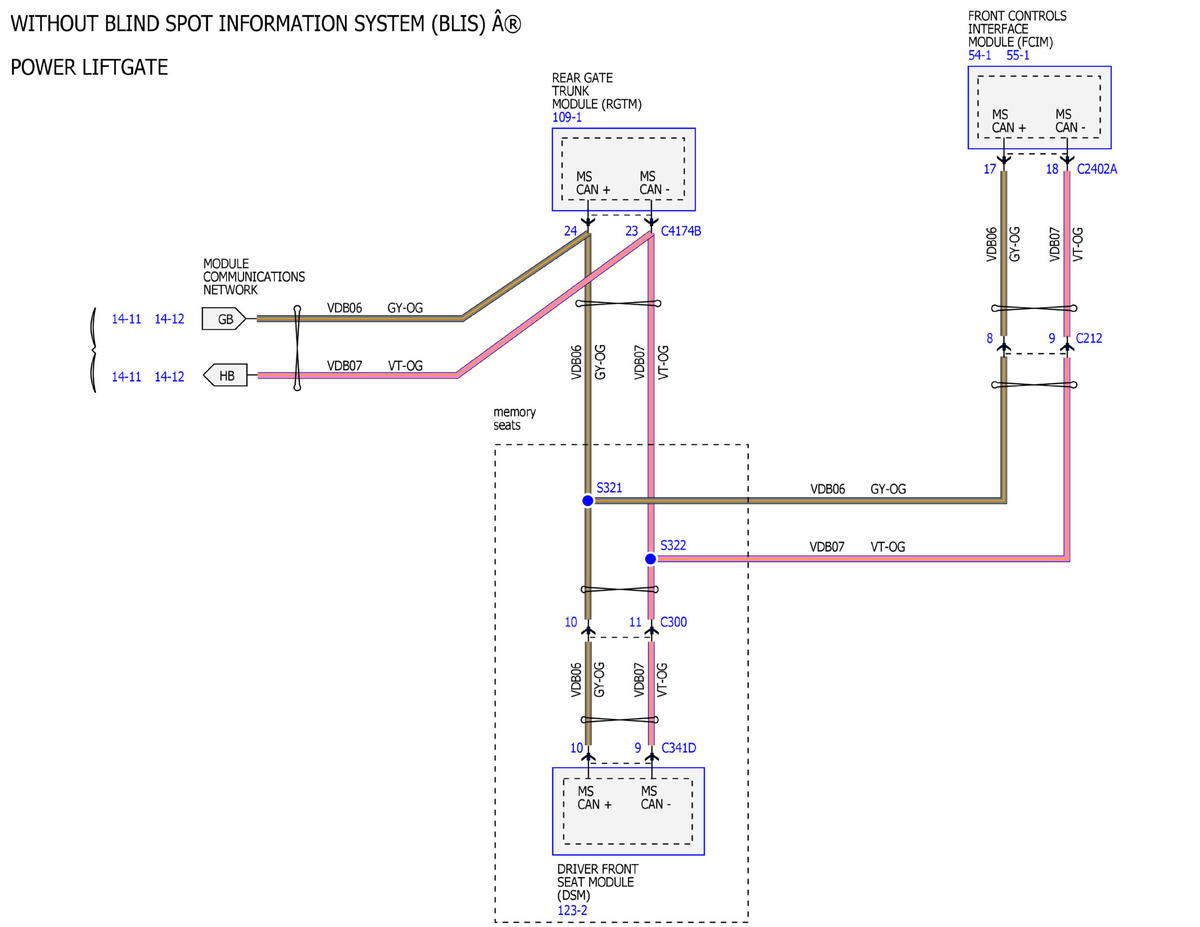

Fig 14: Module Communications Network Wiring Diagrams (14 of 16)

Courtesy of FORD MOTOR COMPANY

Fig 15: Module Communications Network Wiring Diagrams (15 of 16)

Courtesy of FORD MOTOR COMPANY

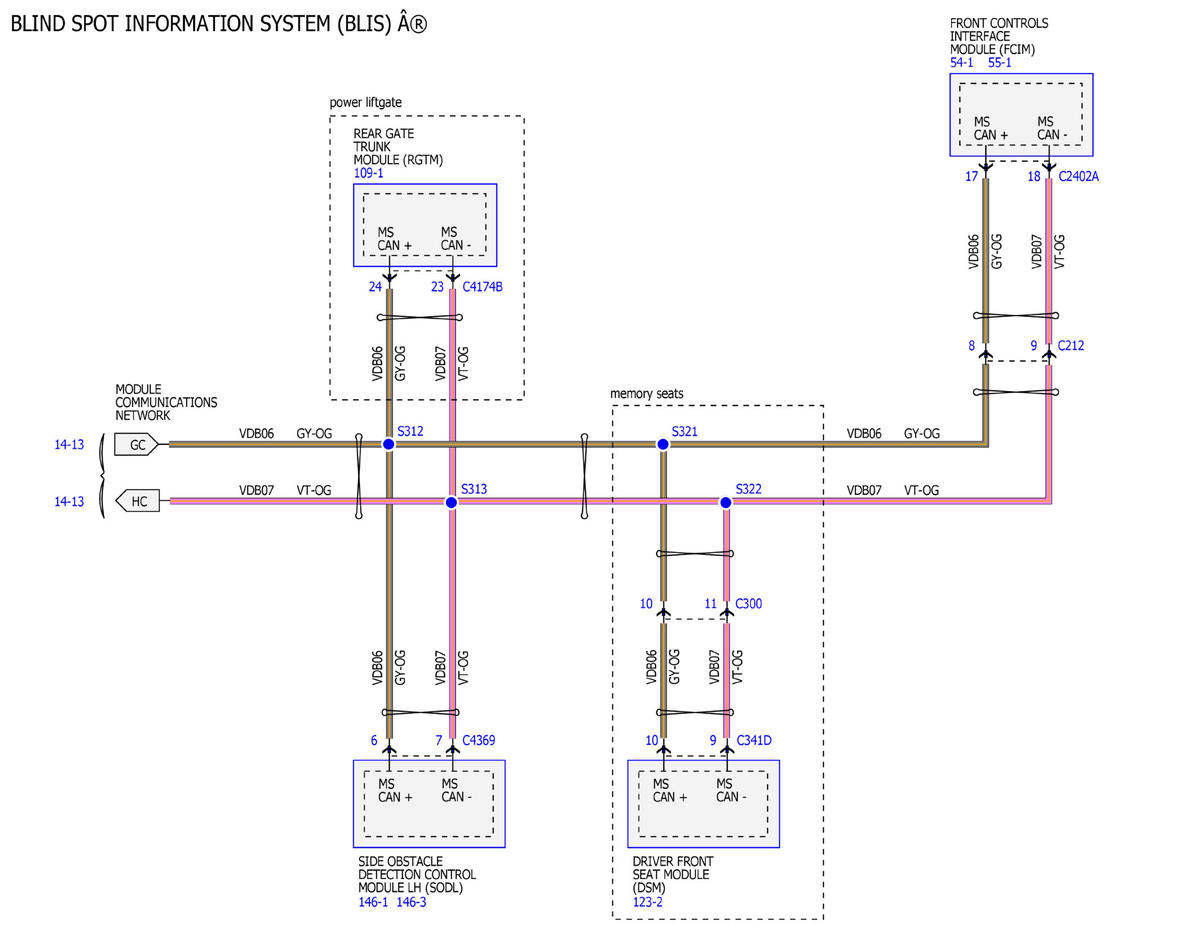

Fig 16: Module Communications Network Wiring Diagrams (16 of 16)

Courtesy of FORD MOTOR COMPANY
