Last Row Single Seat Backrest: Installation

1.

To install, reverse the removal procedure.

2.

NOTE: Be sure the shoulders of the bolts are correctly centered in the holes of the backrest frame.

Install and hand tighten the bolts in the sequence shown in illustration.

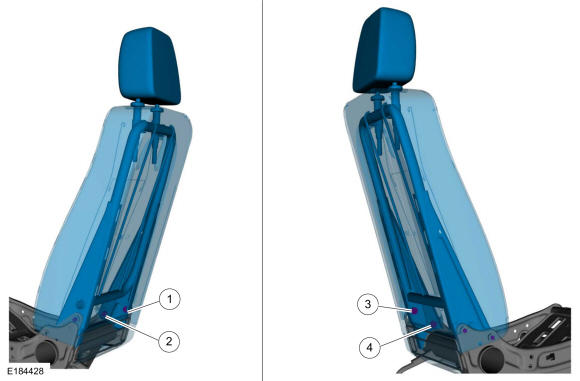

Fig 1: Last Row Single Seat Backrest Tightening Sequence

GFD146978

Courtesy of FORD MOTOR COMPANY

3.
- 1.

  Tighten the bolt.
  Torque: 47 lb.ft (64 Nm)
- 2.

  Tighten the bolt.
  Torque: 47 lb.ft (64 Nm)
- 3.

  Tighten the bolt.
  Torque: 47 lb.ft (64 Nm)
- 4.

  Tighten the bolt.
  Torque: 47 lb.ft (64 Nm)

GFD146978

Courtesy of FORD MOTOR COMPANY
