Starting System
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Starting System

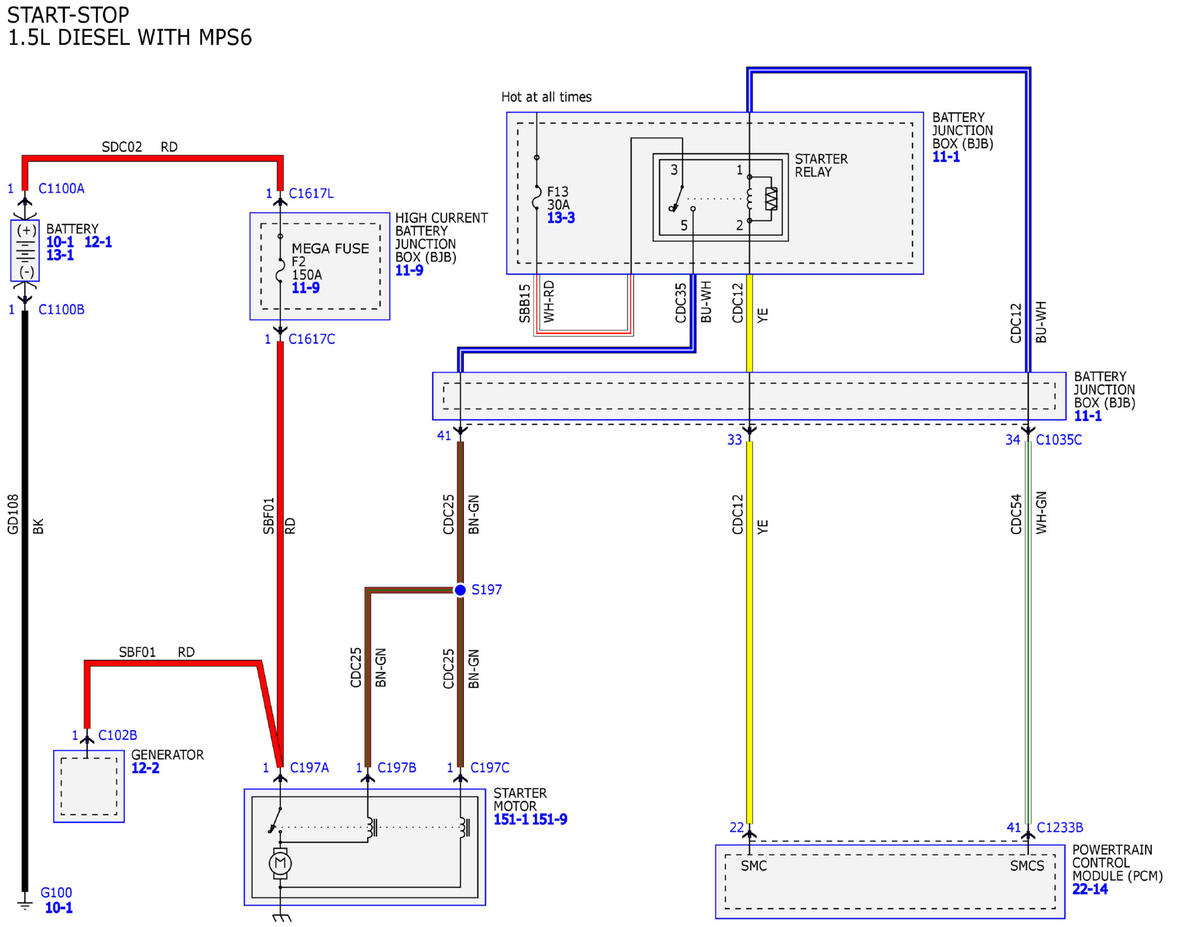

Fig 1: Starting System Wiring Diagram (1 of 3)
Courtesy of FORD MOTOR COMPANY

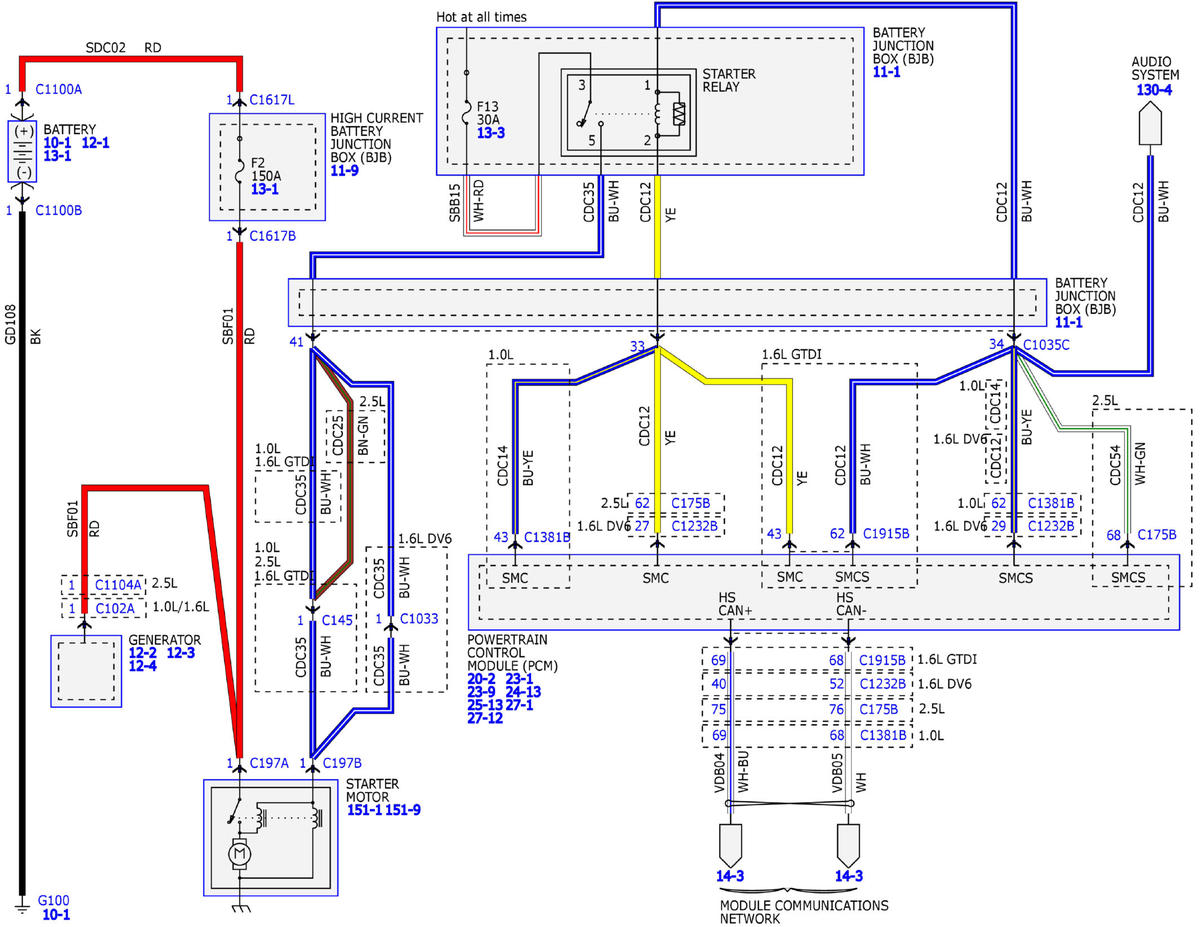

Fig 2: Starting System Wiring Diagram (2 of 3)
Courtesy of FORD MOTOR COMPANY

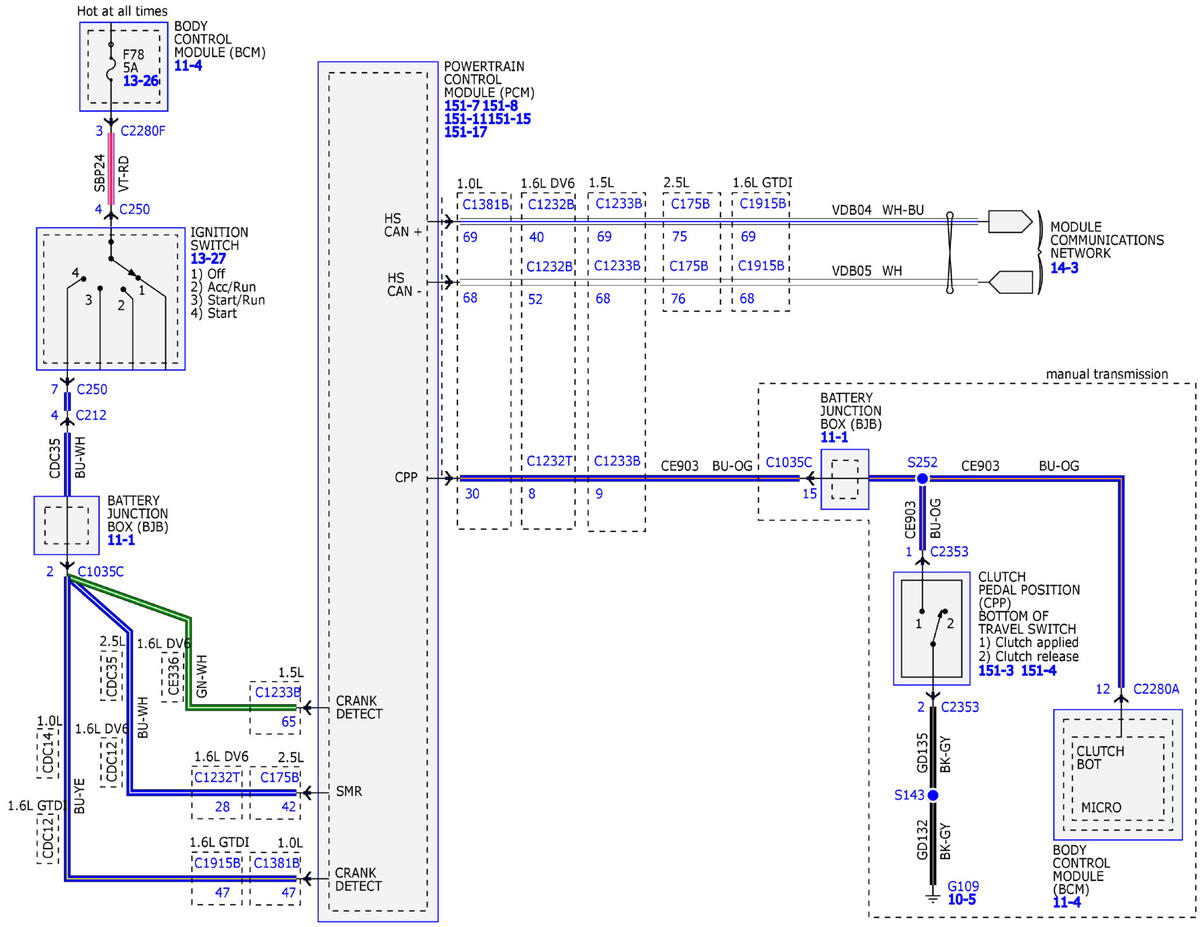

Fig 3: Starting System Wiring Diagram (3 of 3)
Courtesy of FORD MOTOR COMPANY
