Power Windows

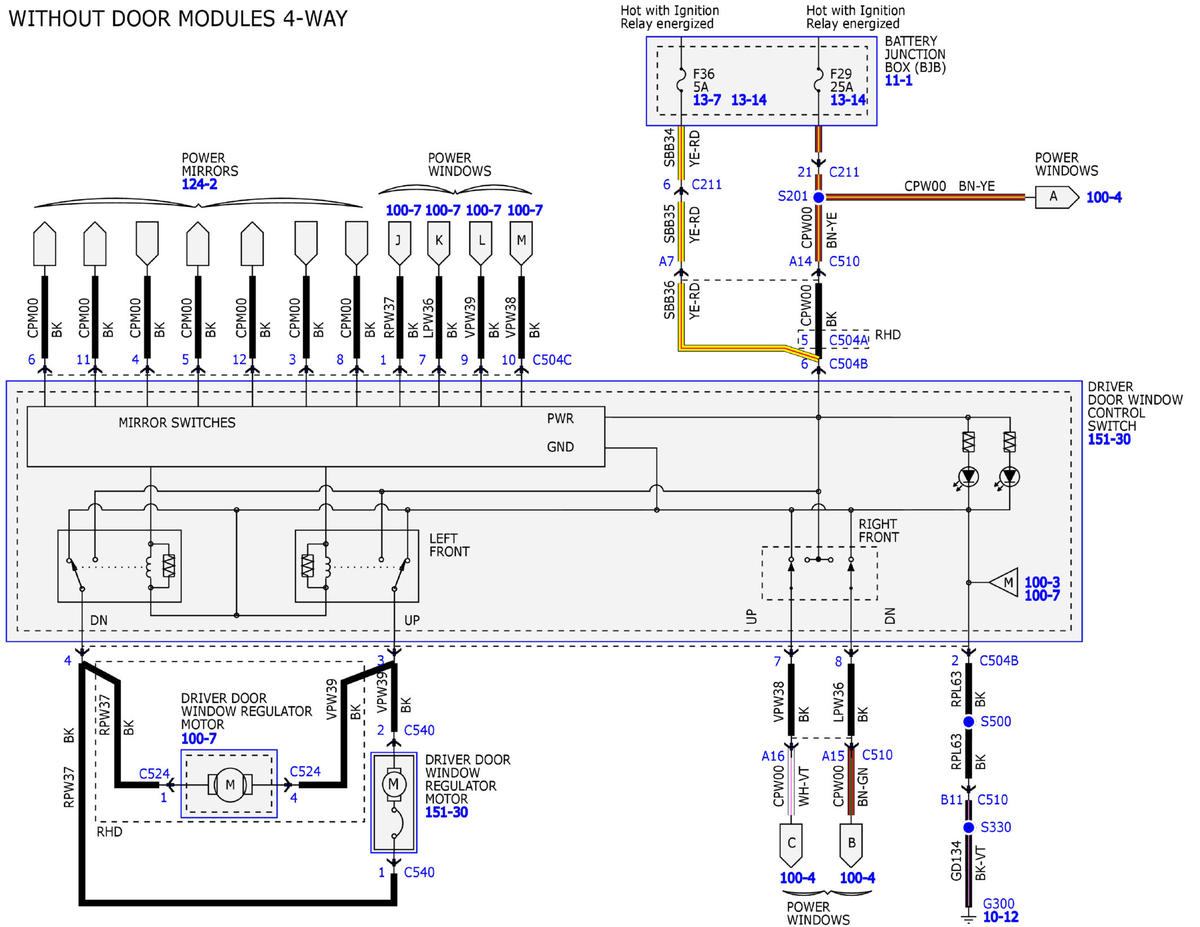

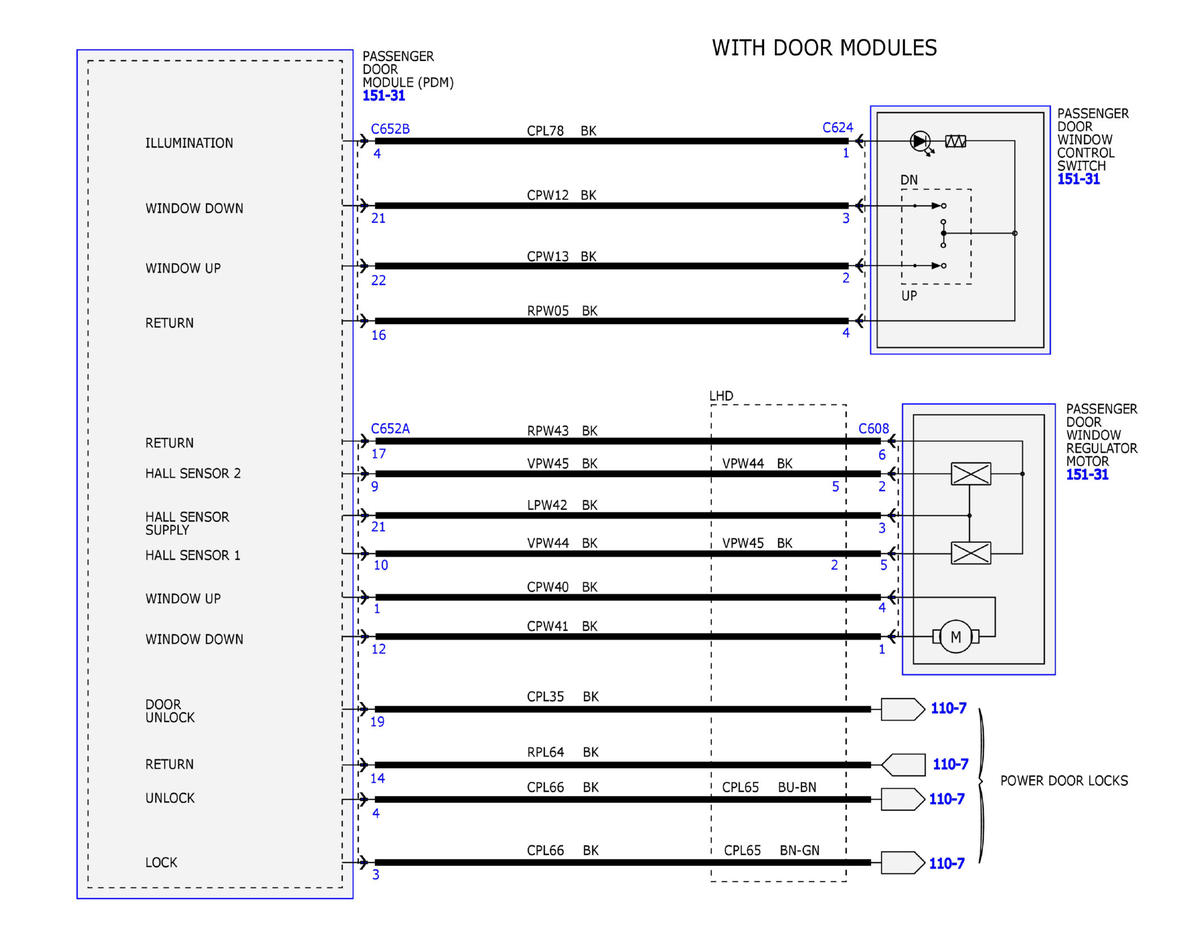

Fig 1: Power Windows Wiring Diagram (1 of 15)
Courtesy of FORD MOTOR COMPANY

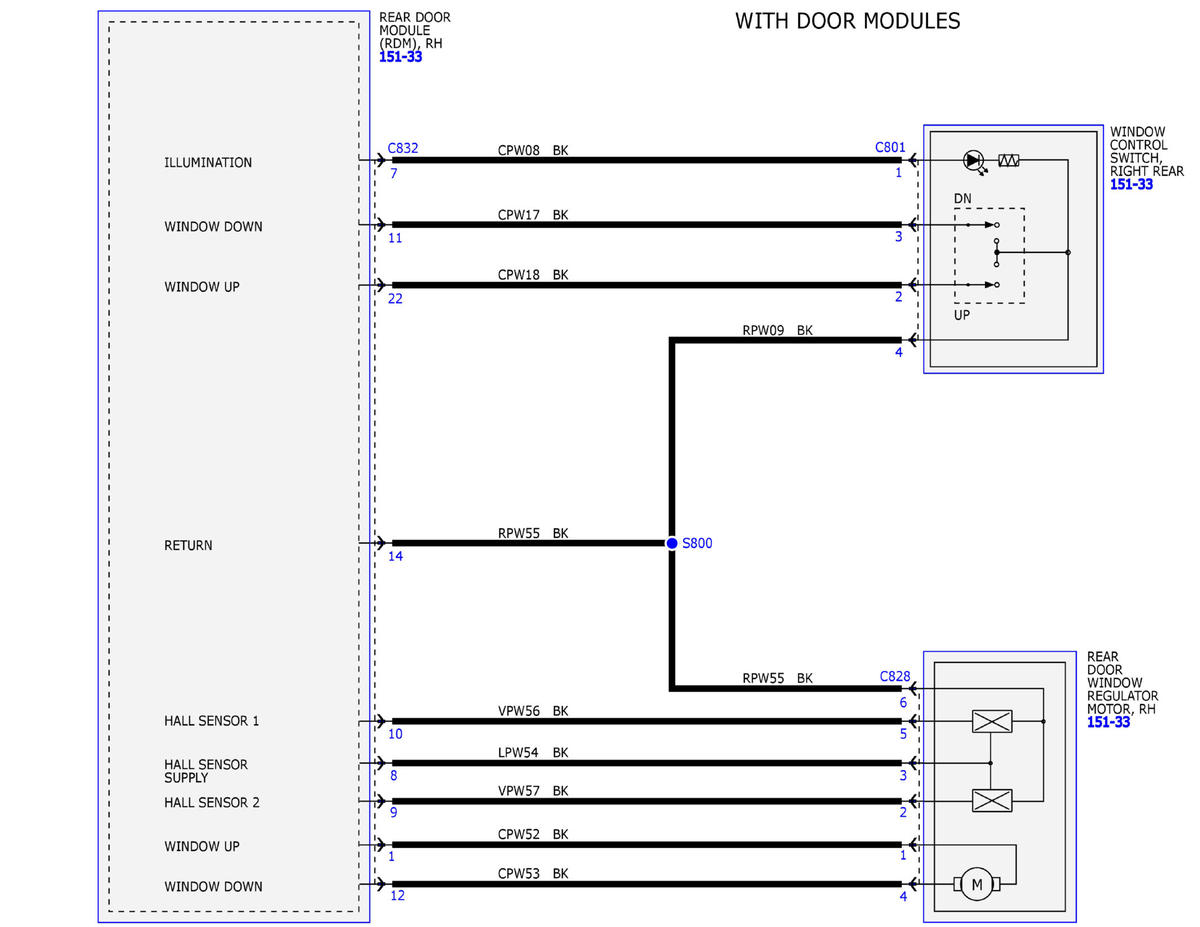

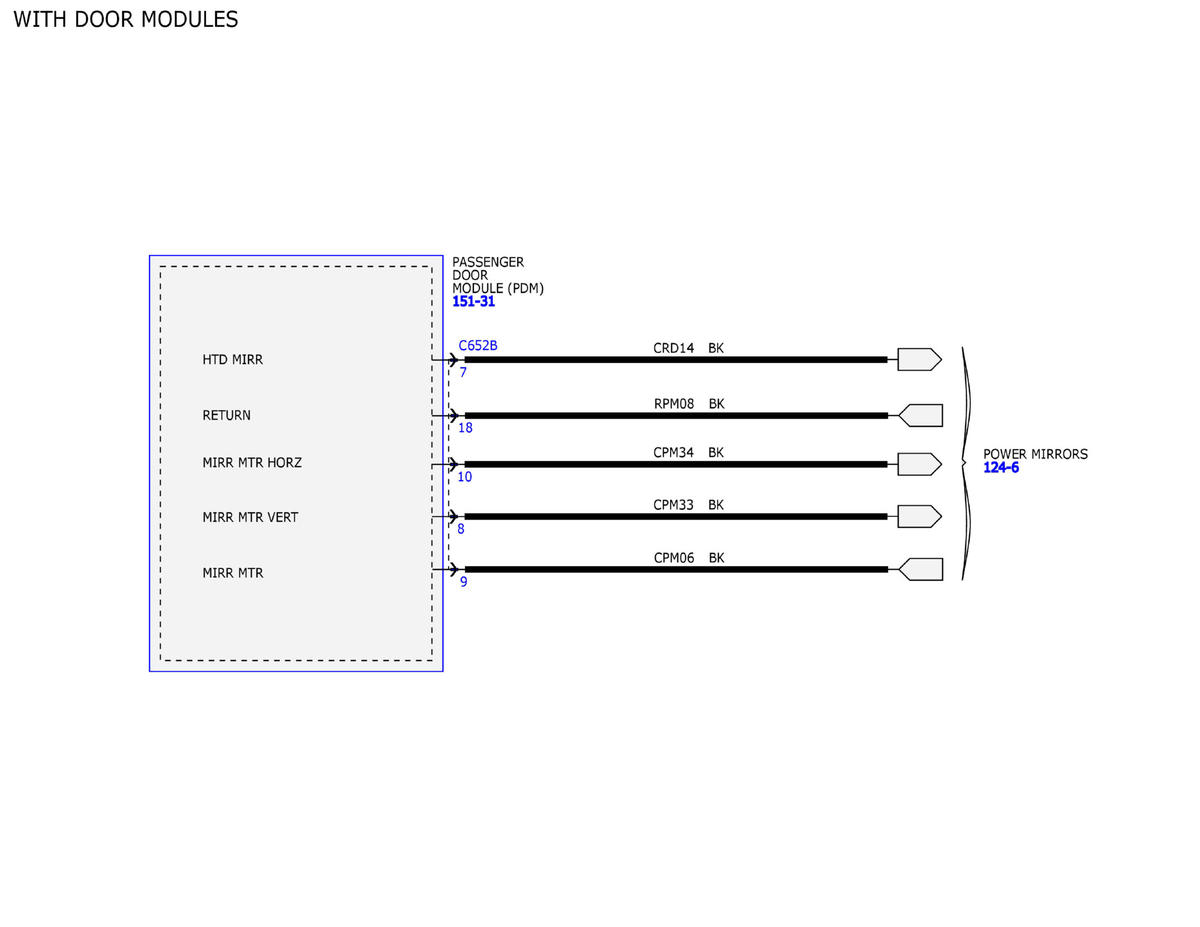

Fig 2: Power Windows Wiring Diagram (2 of 15)
Courtesy of FORD MOTOR COMPANY

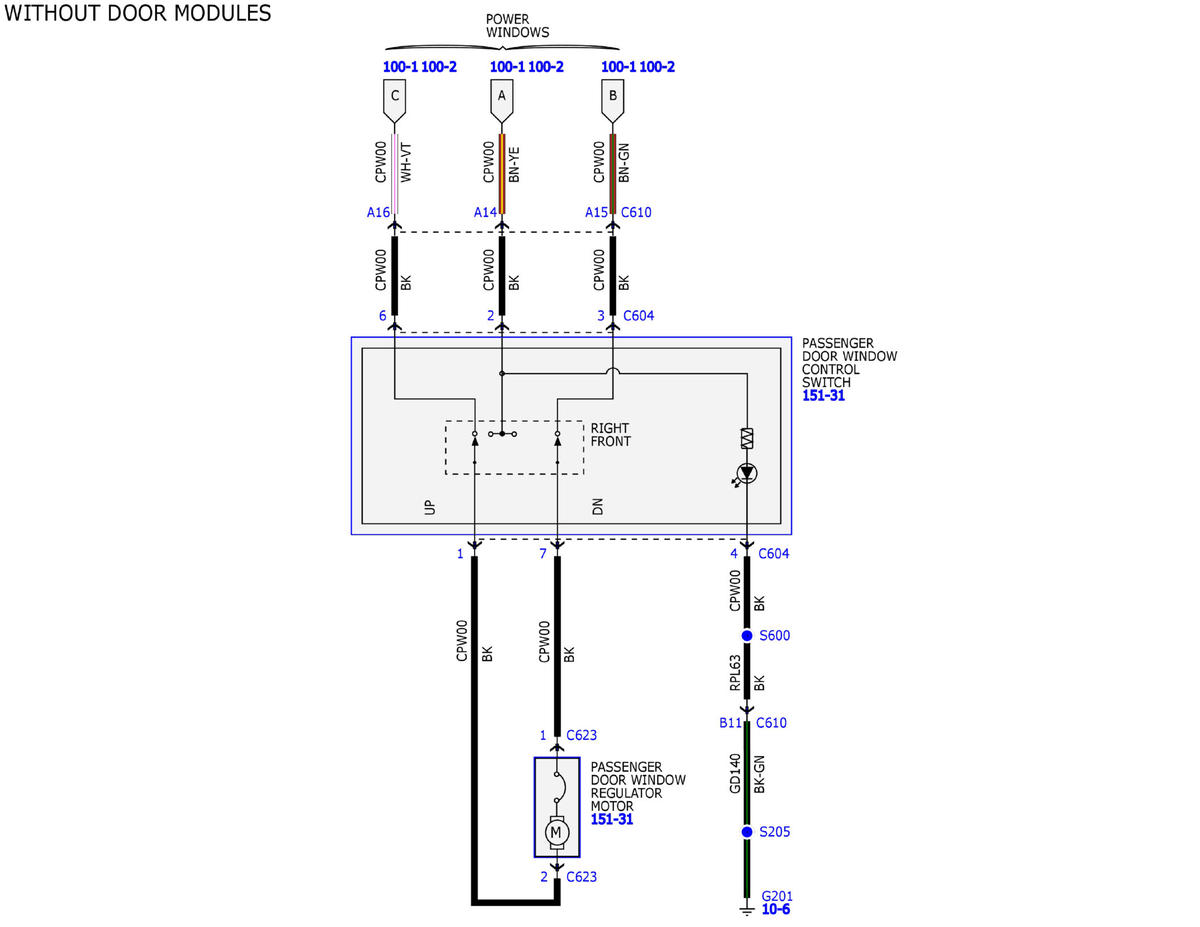

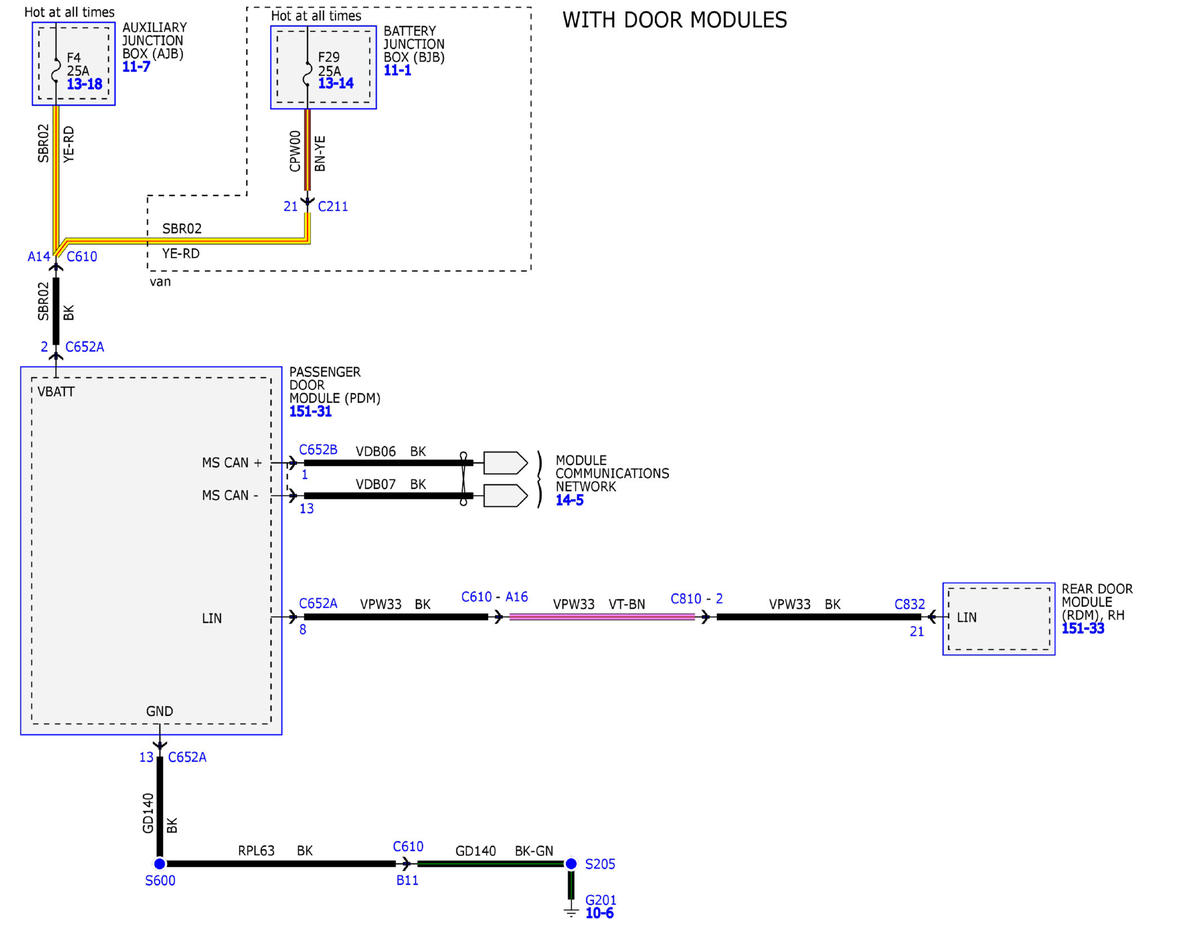

Fig 3: Power Windows Wiring Diagram (3 of 15)
Courtesy of FORD MOTOR COMPANY

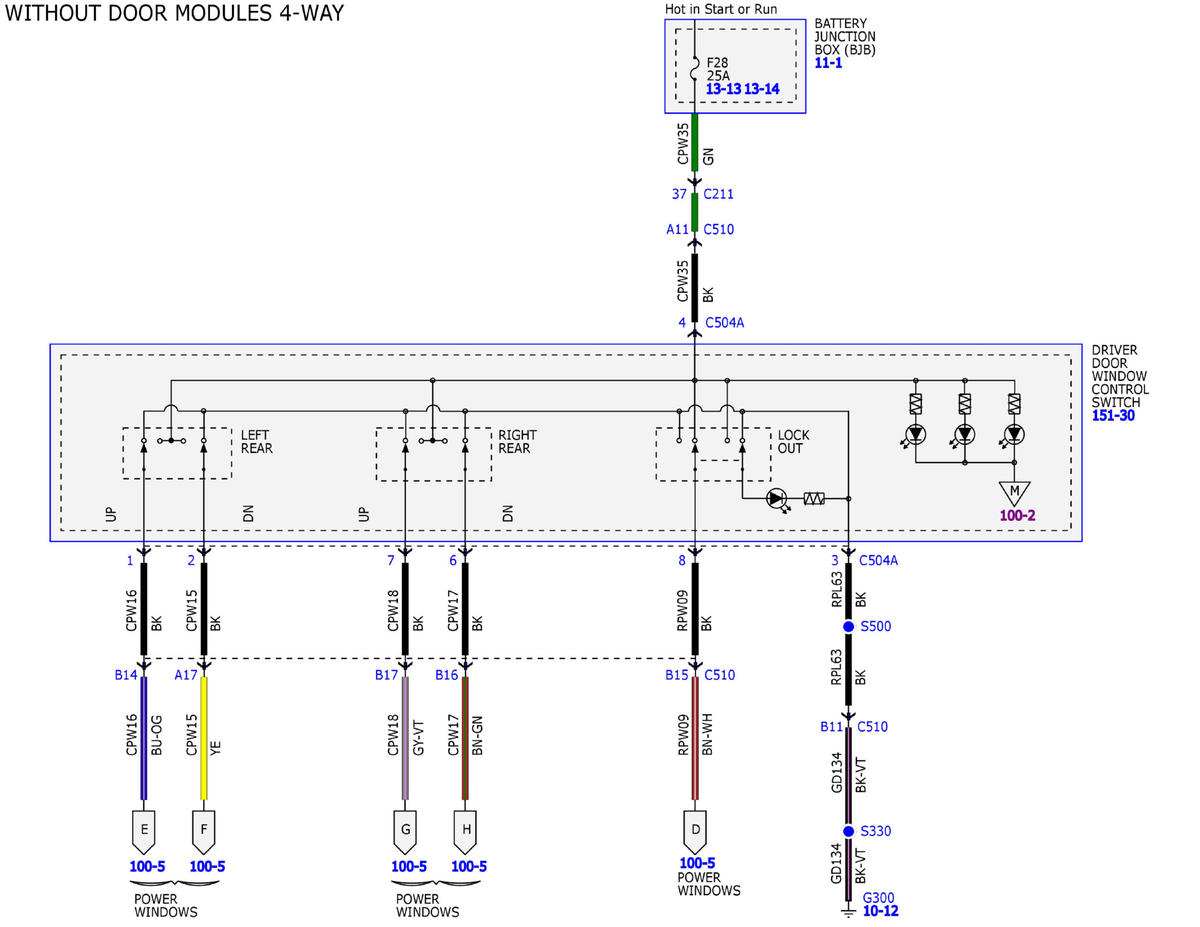

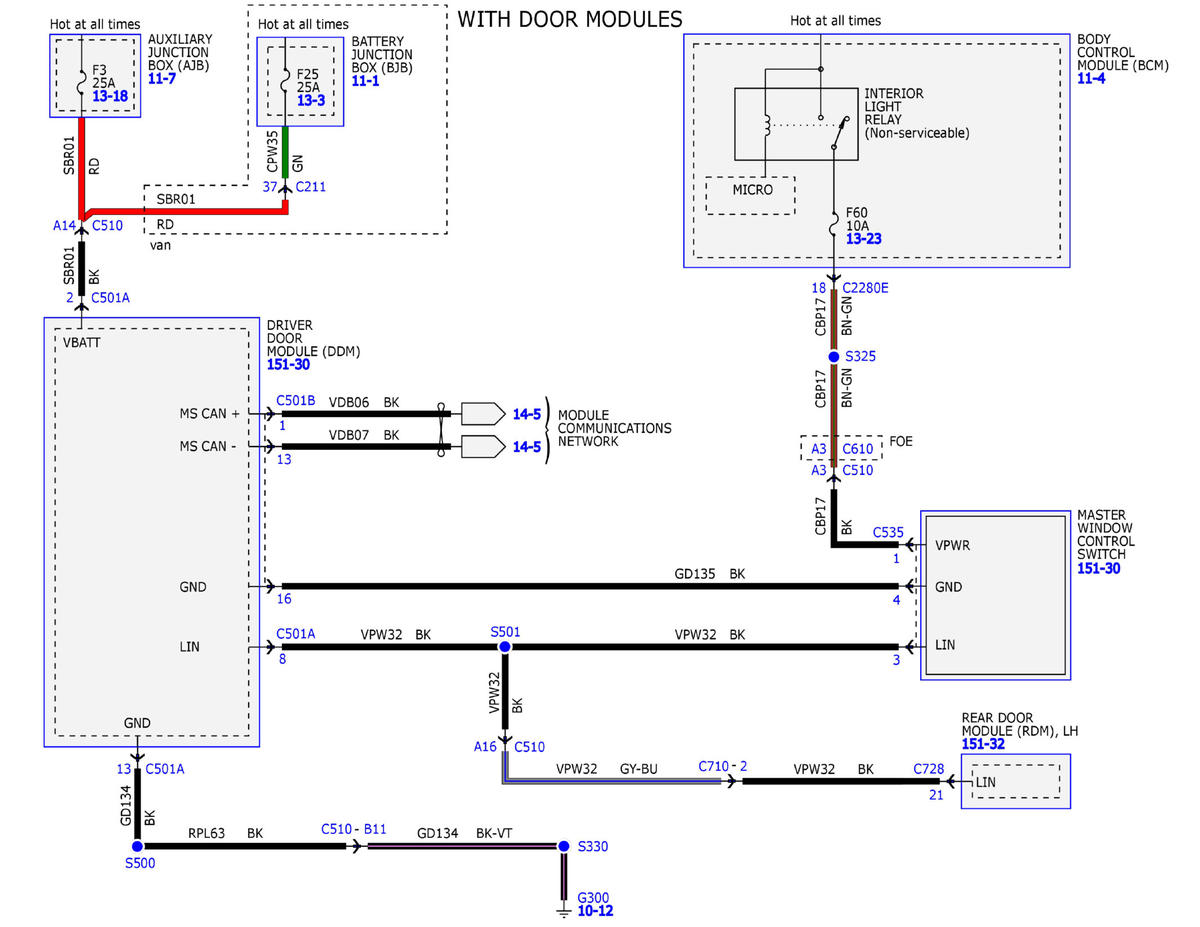

Fig 4: Power Windows Wiring Diagram (4 of 15)
Courtesy of FORD MOTOR COMPANY

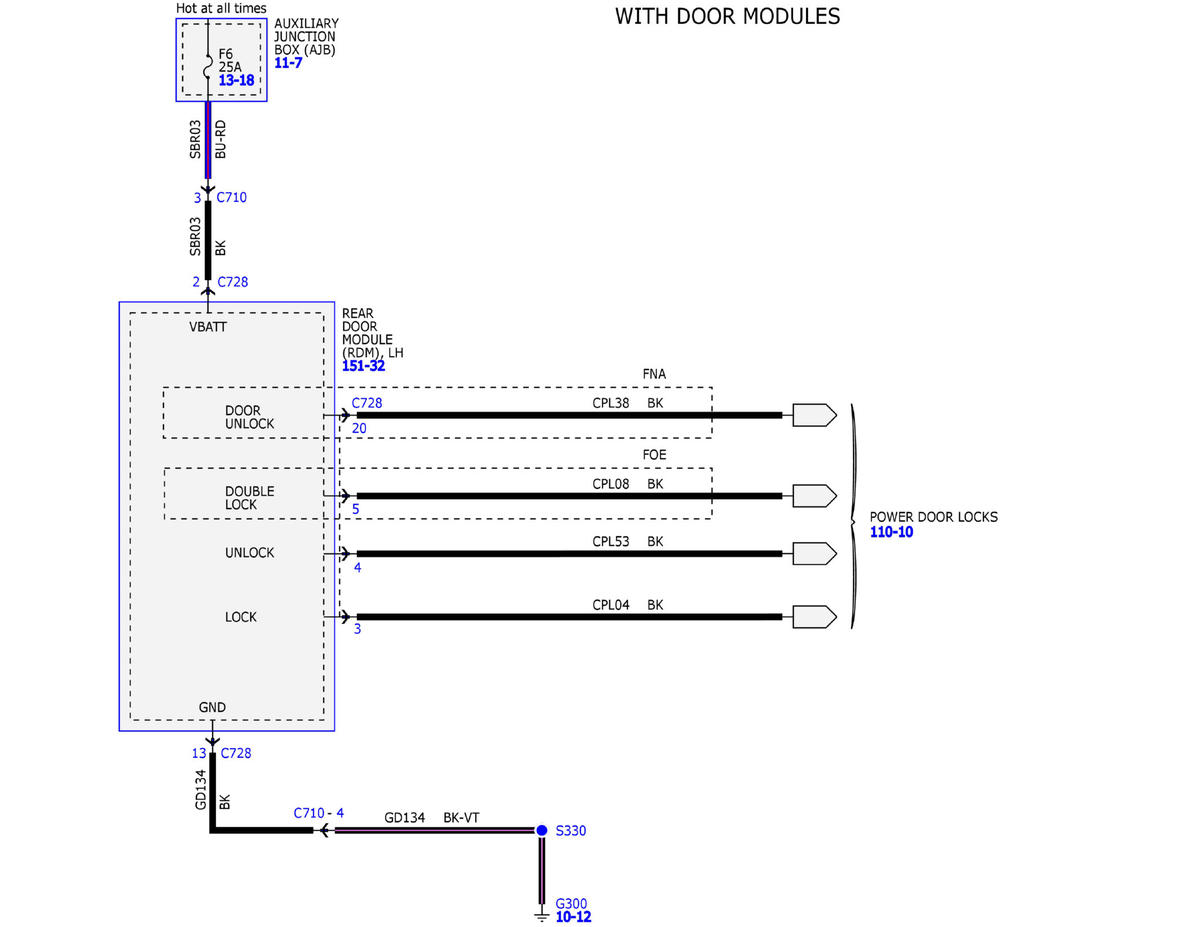

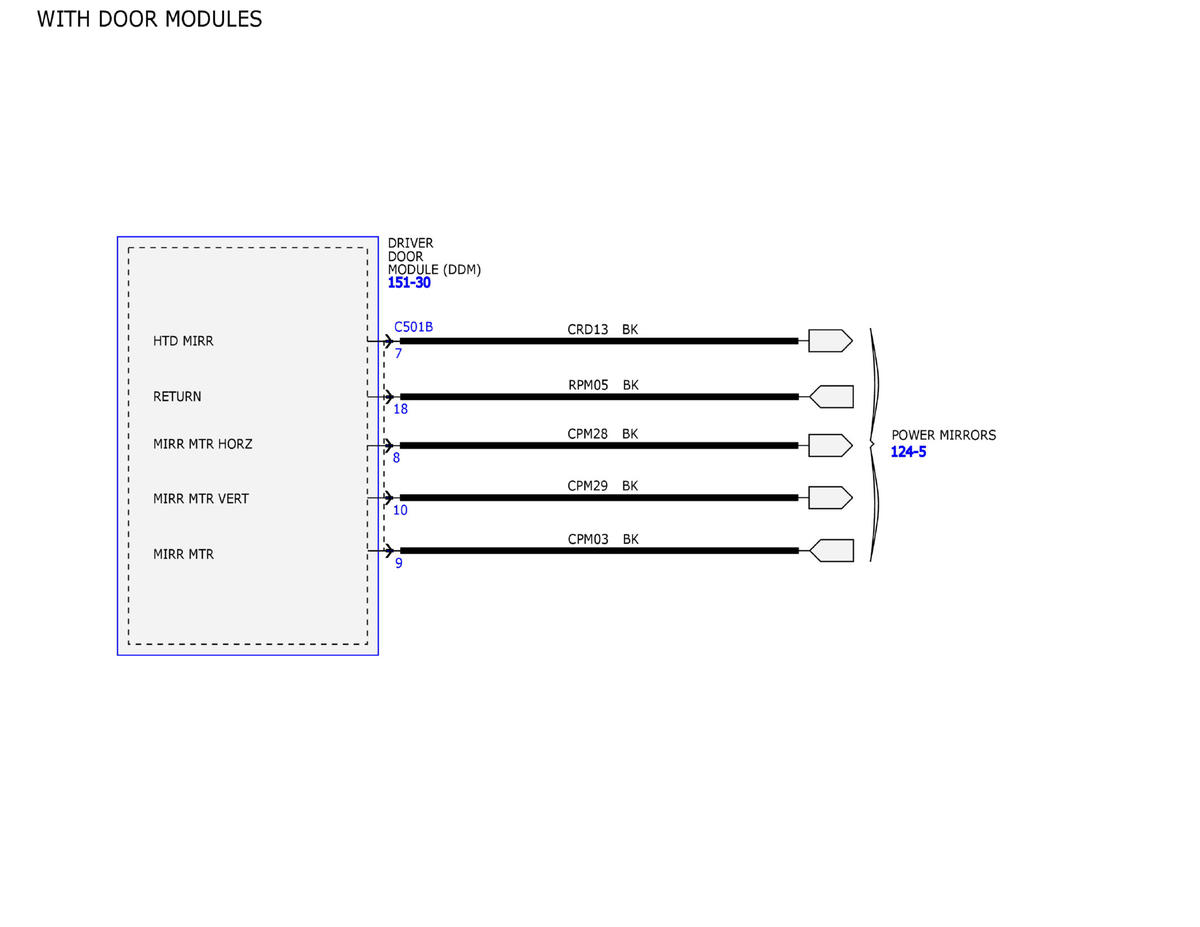

Fig 5: Power Windows Wiring Diagram (5 of 15)
Courtesy of FORD MOTOR COMPANY

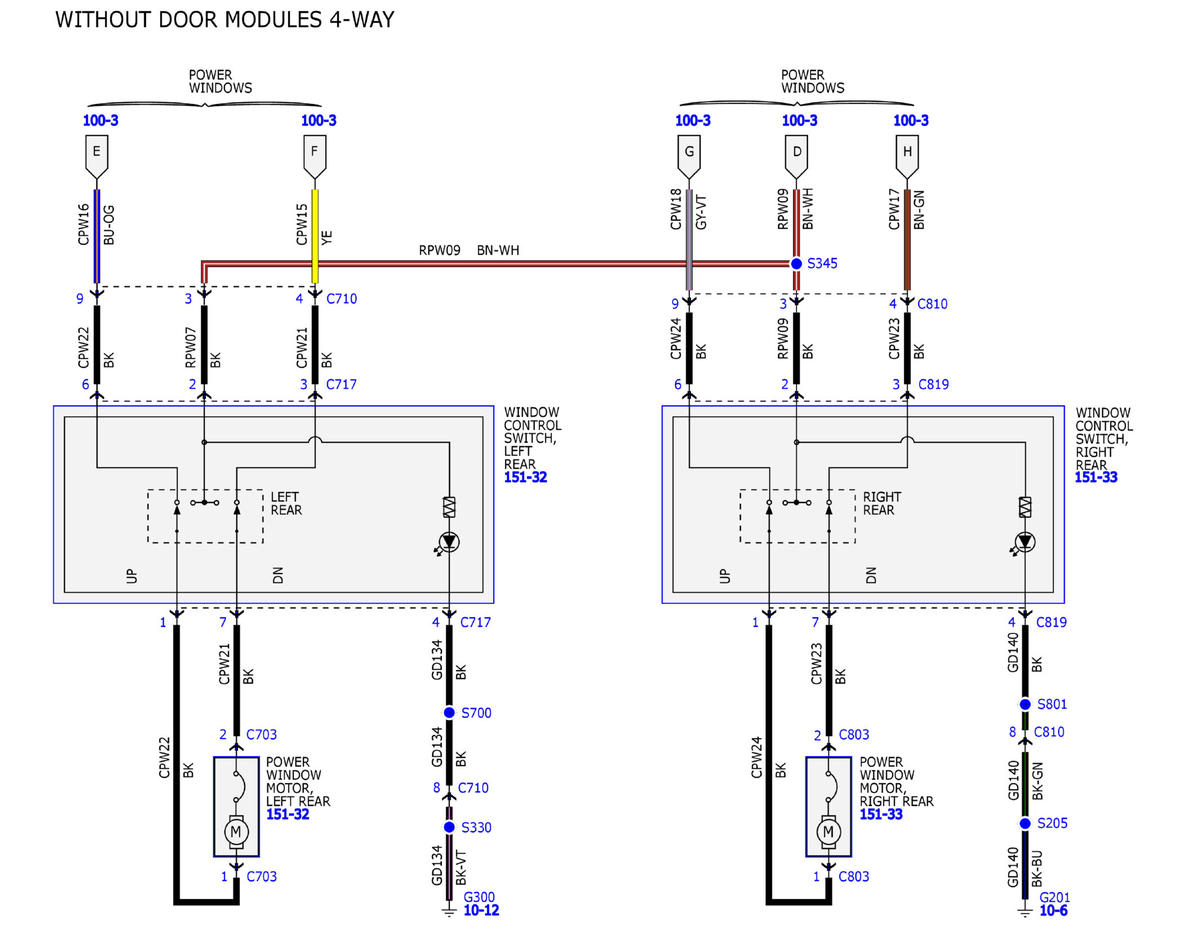

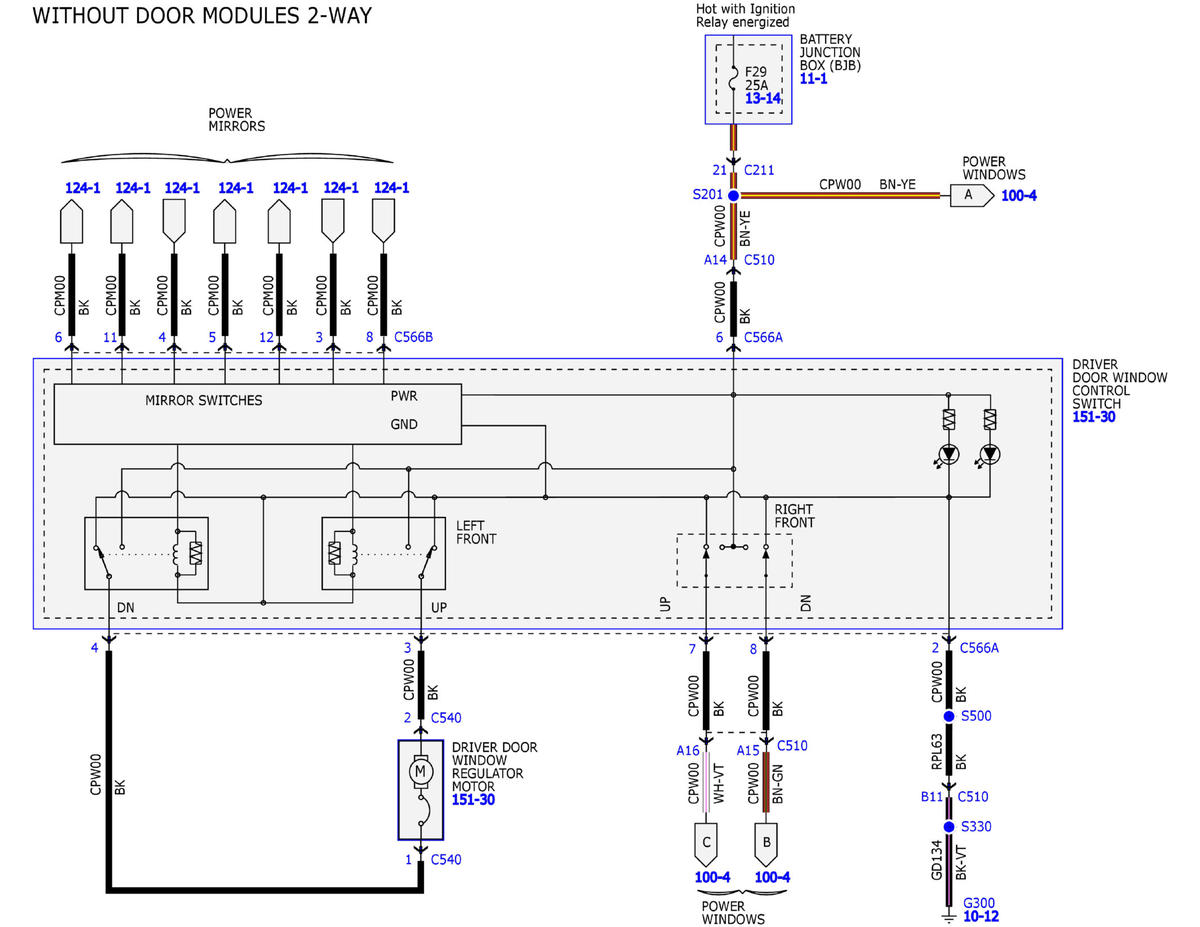

Fig 6: Power Windows Wiring Diagram (6 of 15)
Courtesy of FORD MOTOR COMPANY

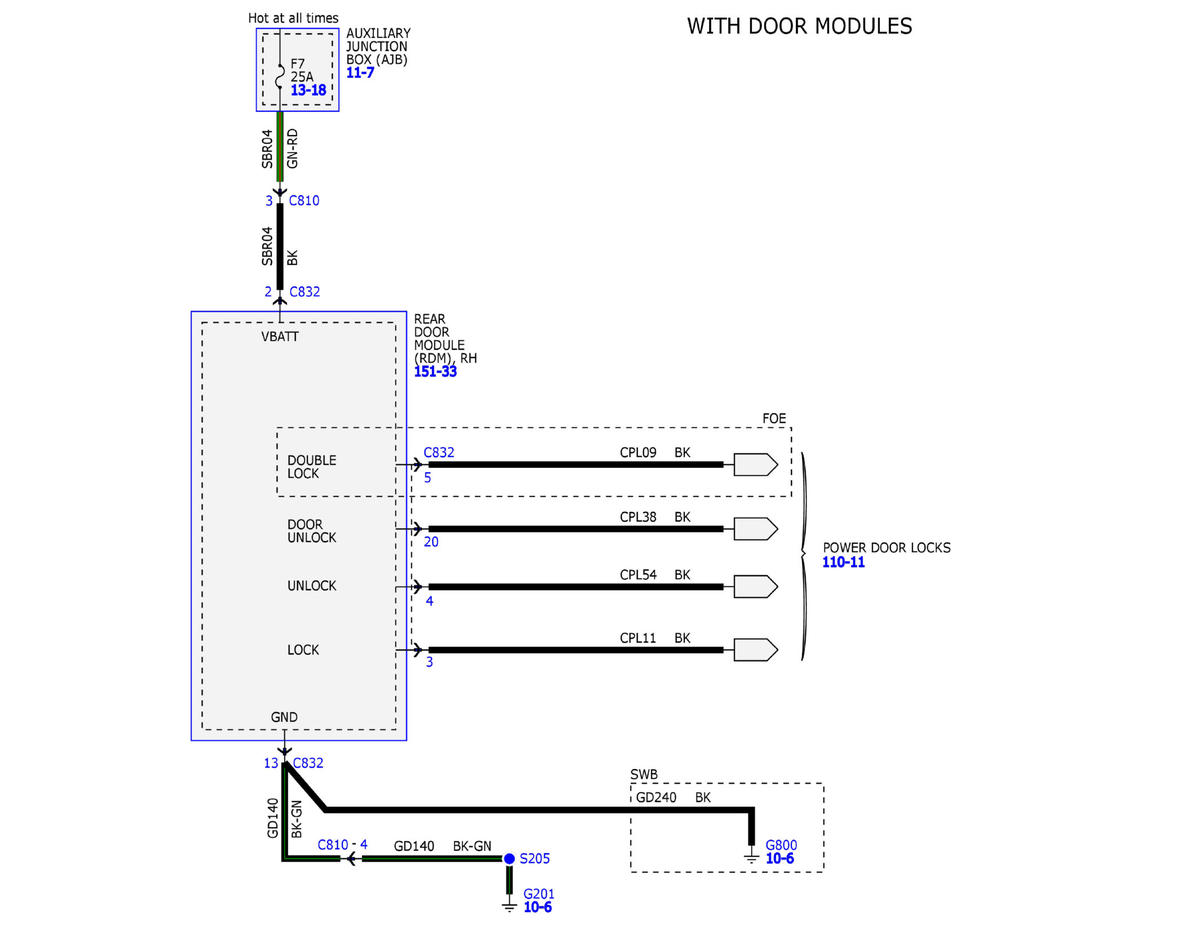

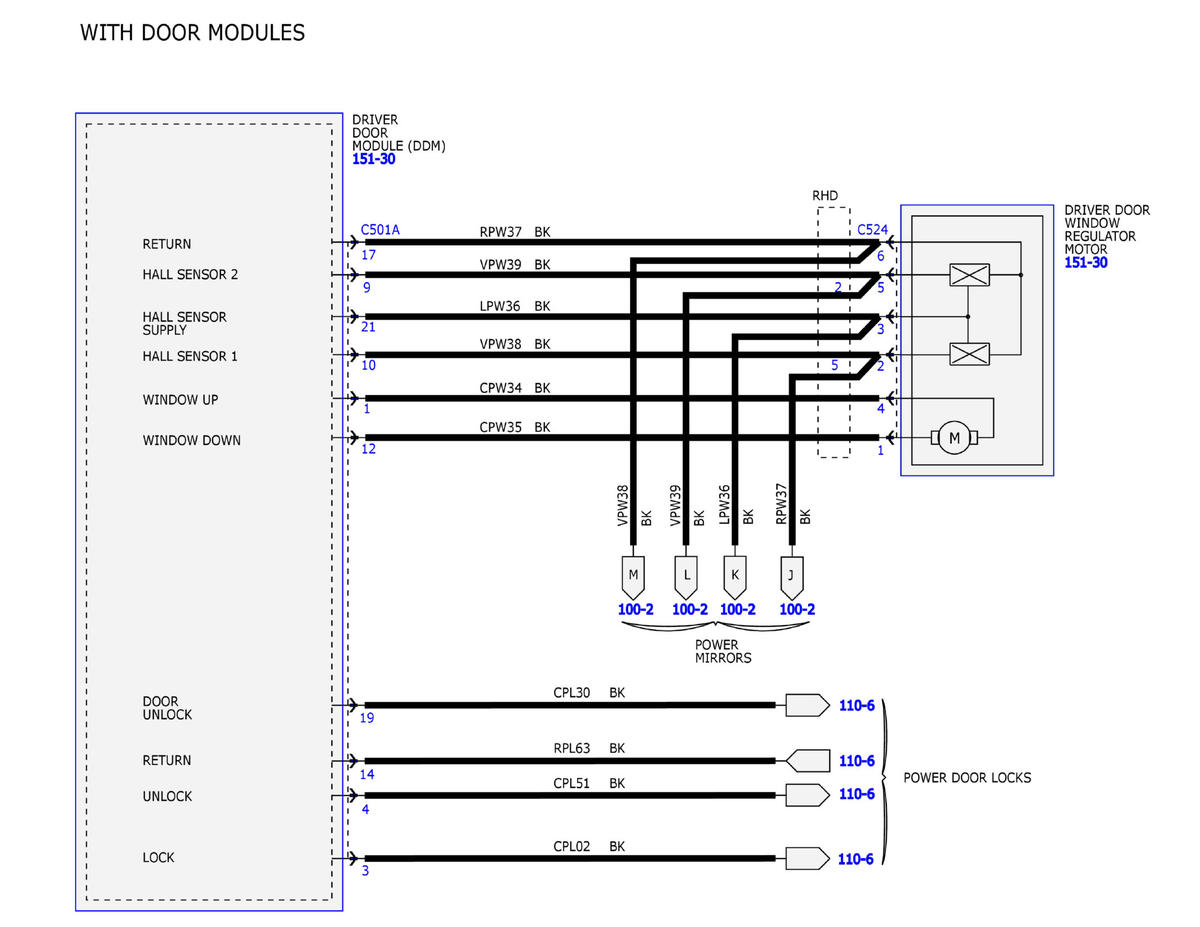

Fig 7: Power Windows Wiring Diagram (7 of 15)
Courtesy of FORD MOTOR COMPANY

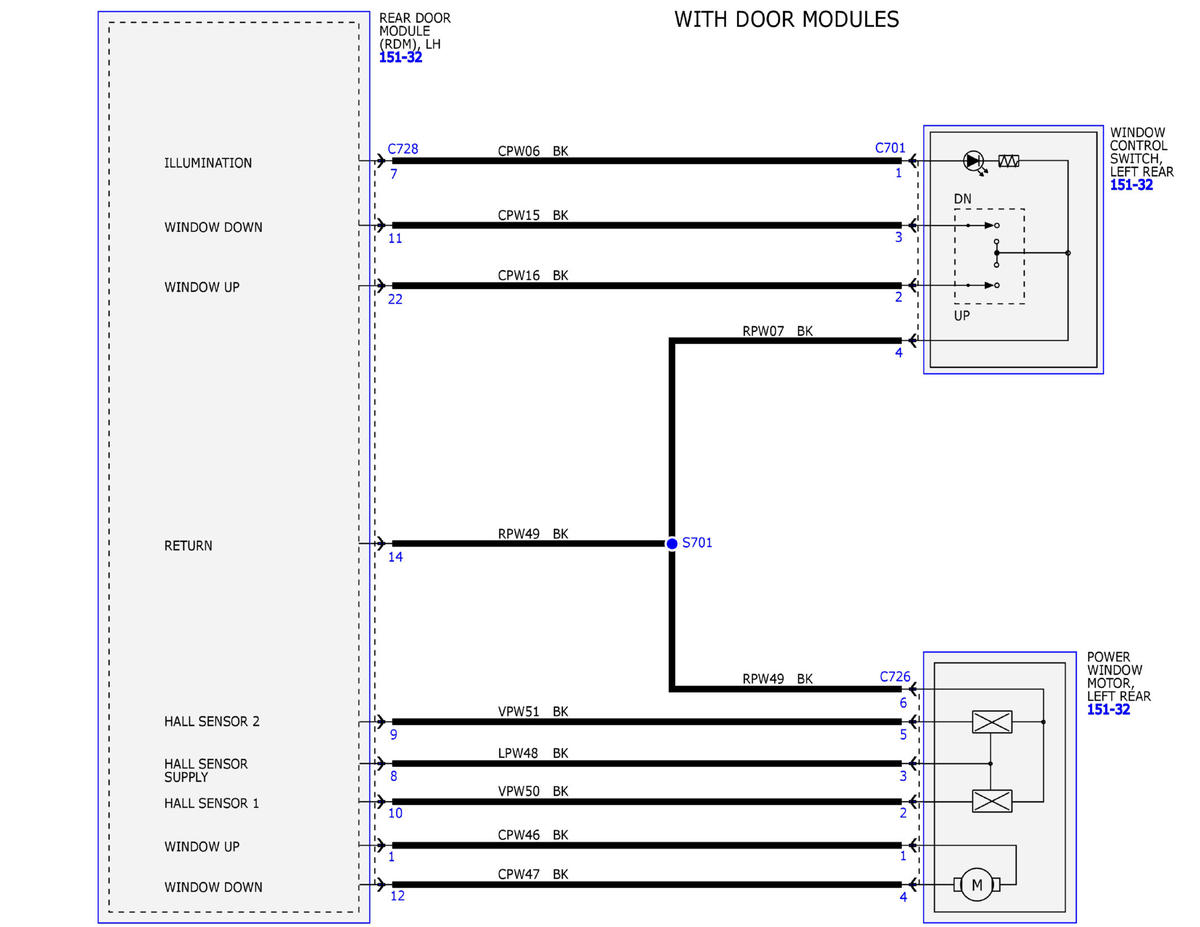

Fig 8: Power Windows Wiring Diagram (8 of 15)
Courtesy of FORD MOTOR COMPANY
Fig 9: Power Windows Wiring Diagram (9 of 15)
Courtesy of FORD MOTOR COMPANY
Fig 10: Power Windows Wiring Diagram (10 of 15)
Courtesy of FORD MOTOR COMPANY
Fig 11: Power Windows Wiring Diagram (11 of 15)
Courtesy of FORD MOTOR COMPANY
Fig 12: Power Windows Wiring Diagram (12 of 15)
Courtesy of FORD MOTOR COMPANY
Fig 13: Power Windows Wiring Diagram (13 of 15)
Courtesy of FORD MOTOR COMPANY
Fig 14: Power Windows Wiring Diagram (14 of 15)
Courtesy of FORD MOTOR COMPANY
Fig 15: Power Windows Wiring Diagram (15 of 15)
Courtesy of FORD MOTOR COMPANY
