Passive Anti-Theft System

WARNING: This page is about a different car, the 2016 Ford Transit Connect. However, it is still accessible from the selected car via links, so may be relevant.

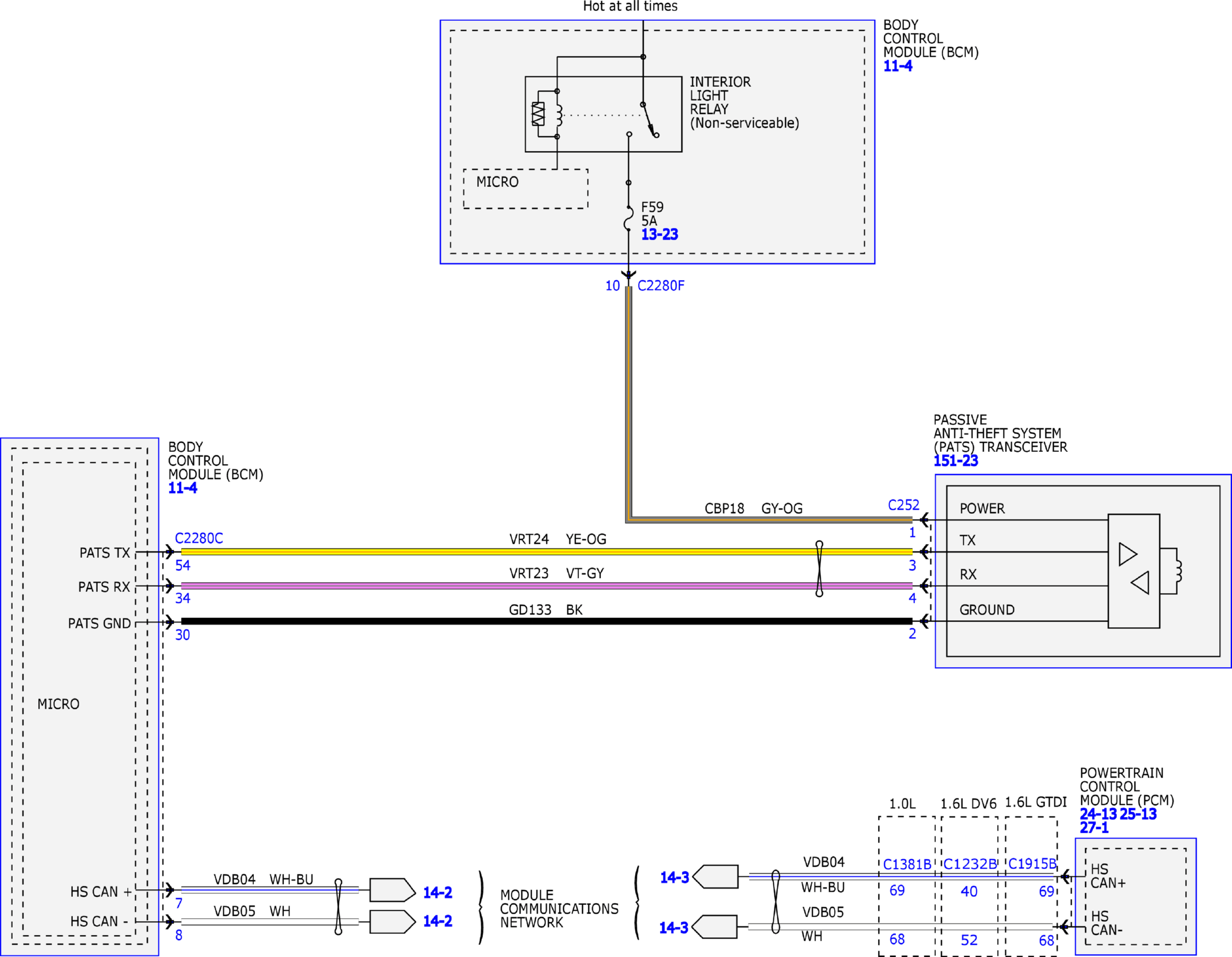

Fig 1: Passive Anti-Theft System Wiring Diagram
GFDW63604Courtesy of FORD MOTOR COMPANY
