Engine Emission Control System - 2.5L DURATEC (125KW/170PS)
>>
Description And Operation
>>
Engine Emission Control - Component Location
>>
2.5L Duratec
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

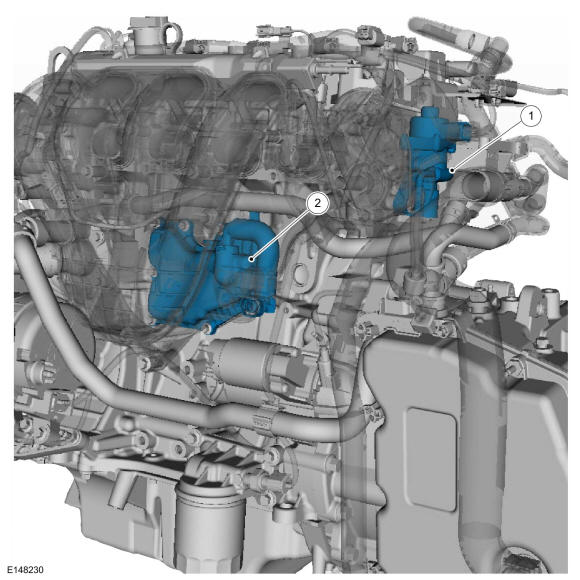

2.5L Duratec
Courtesy of FORD MOTOR COMPANY
Item
Description
1
EGR valve
2
Crankcase vent oil separator
