Driver Seat Track: Installation

  1. To install, reverse the removal procedure.

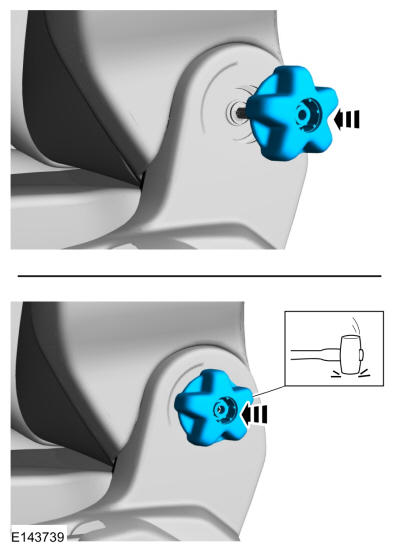

  2. Using rubber mallet, install the recliner handle knob. Use the General Equipment: Rubber Mallet
    GFD216383Courtesy of FORD MOTOR COMPANY

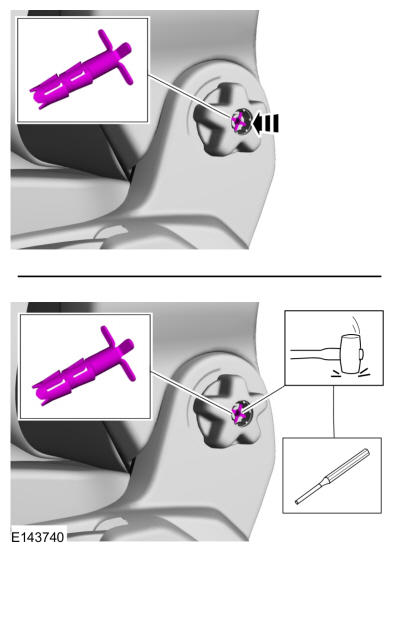

  3. Using rubber mallet, install the retaining clip. Use the General Equipment: Punch Use the General Equipment: Rubber Mallet
    GFD216384Courtesy of FORD MOTOR COMPANY

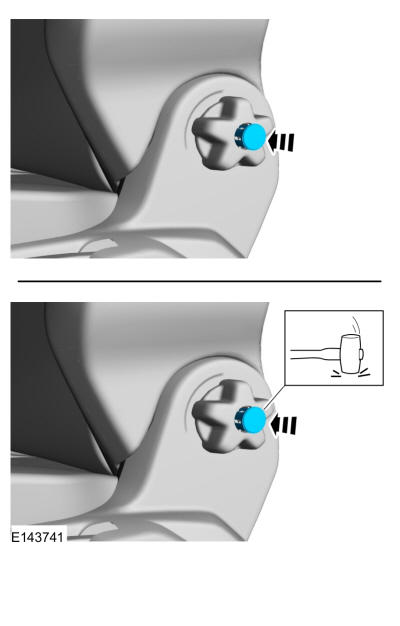

  4. Using rubber mallet, install the lumbar handle knob cap. Use the General Equipment: Rubber Mallet
GFD216385Courtesy of FORD MOTOR COMPANY
