Seat Control Switch, Driver Side (14-Way)

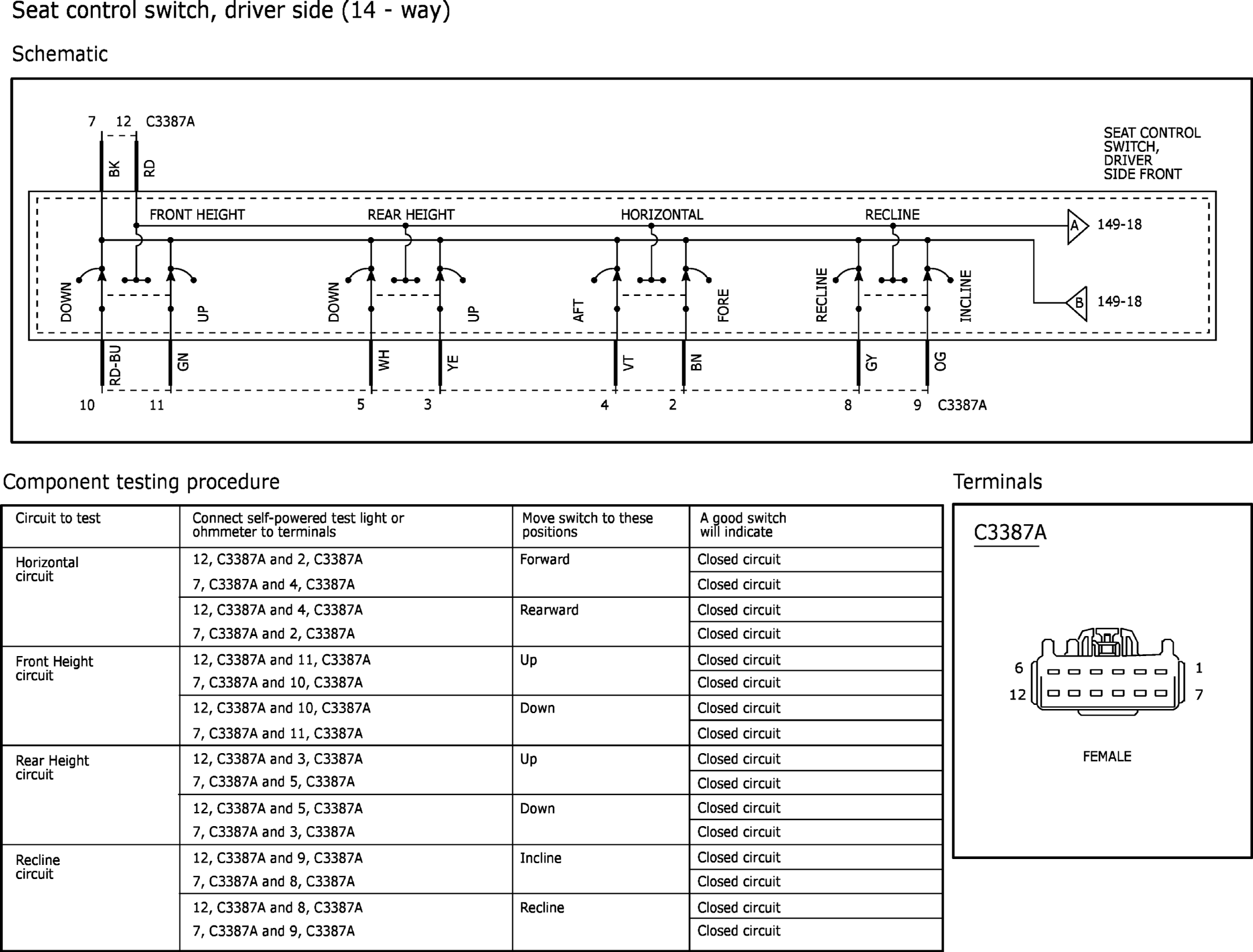

Fig 1: Seat Control Switch, Driver Side (14-Way) (1 of 2)
Courtesy of FORD MOTOR COMPANY

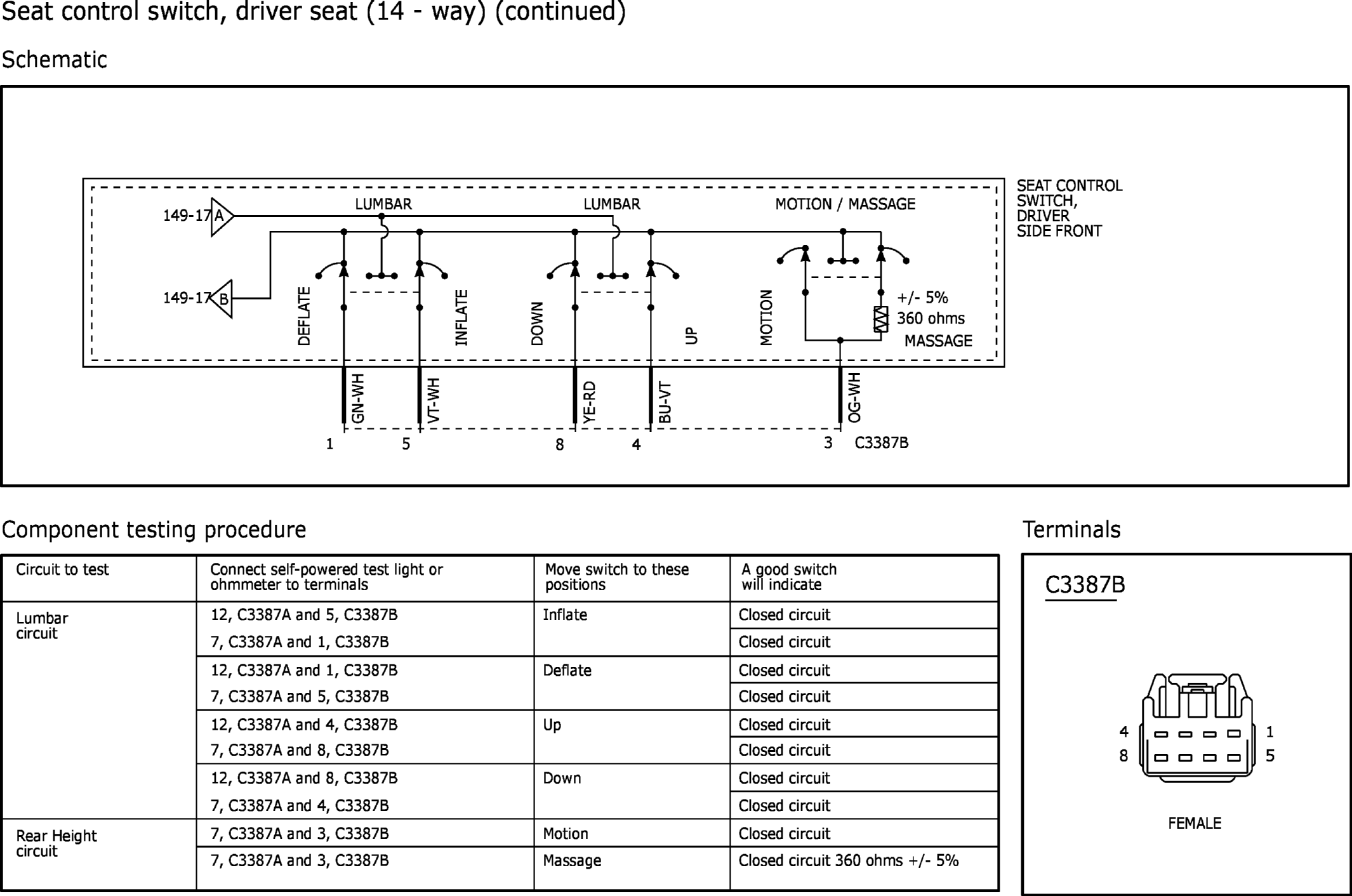

Fig 2: Seat Control Switch, Driver Side (14-Way) (2 of 2)
Courtesy of FORD MOTOR COMPANY
