In-Vehicle Repair: Flexplate: Installation
WARNING: This page is about a different variant/trim than selected.
- 1.NOTE: Special bolts are used for installation. Do not use standard bolts.

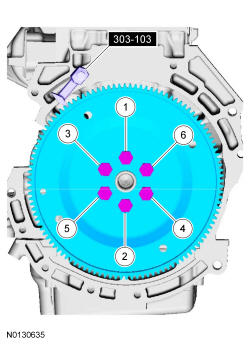

Install the flexplate, the 6 new bolts and the Flywheel Holding Tool.
- Tighten in the sequence shown in 3 stages:
- Stage 1: Tighten to 50 Nm (37 lb-ft).
- Stage 2: Tighten to 80 Nm (50 lb-ft).
- Stage 3: Tighten to 112 Nm (83 lb-ft).
- Tighten in the sequence shown in 3 stages:
- 2.
Install the transaxle. For additional information, refer to Automatic Transmission 6F35 .
