Engine Emission Control - Component Location

3.5L EcoBoost

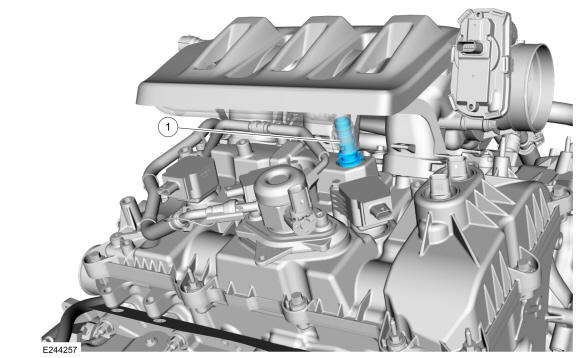

GFD345234Courtesy of FORD MOTOR COMPANY
Item Description
1 PCV (positive crankcase ventilation) valve. Refer to: Positive Crankcase Ventilation (PCV) Valve  .
