Oil Pressure Control Solenoid: Removal

NOTE: Removal steps in this procedure may contain installation details.

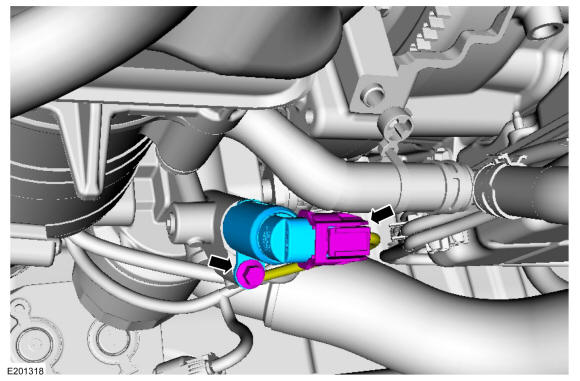

  1. Disconnect the electrical connector, remove the bolt and the oil pressure control solenoid.

    Torque: 97 lb.in (11 Nm)

GFD193913Courtesy of FORD MOTOR COMPANY
