Electronic Engine Controls Component Location - LH

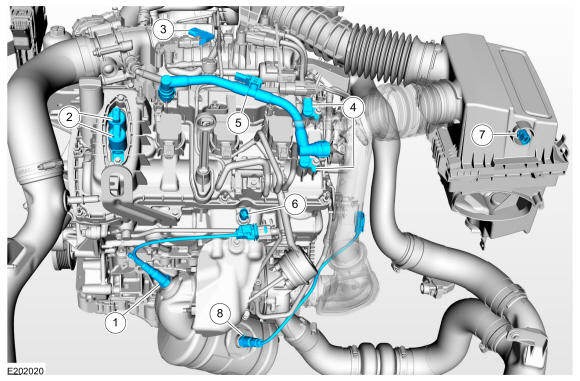

GFD193943Courtesy of FORD MOTOR COMPANY
Item Description
1 Left hand HO2S
2 Left hand VCT oil control solenoids
3 MAP sensor
4 Left hand CMP sensors
5 Crankcase pressure sensor
6 CHT sensor
7 IAT sensor
8 Left hand Catalyst monitor sensor
