Connector Repair Procedures

WARNING: This page is about a different variant/trim than selected.

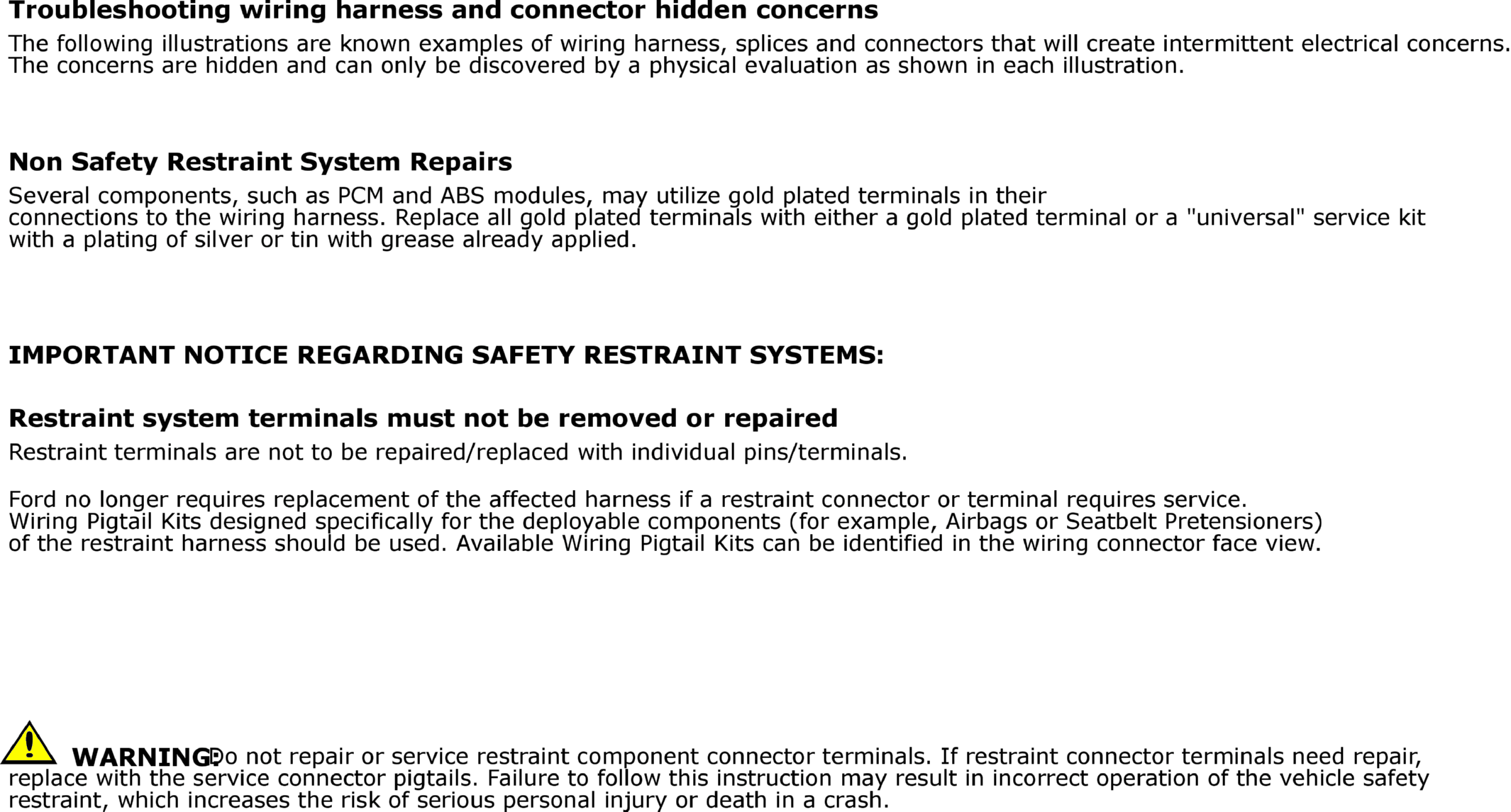

GFDW53619Courtesy of FORD MOTOR COMPANY

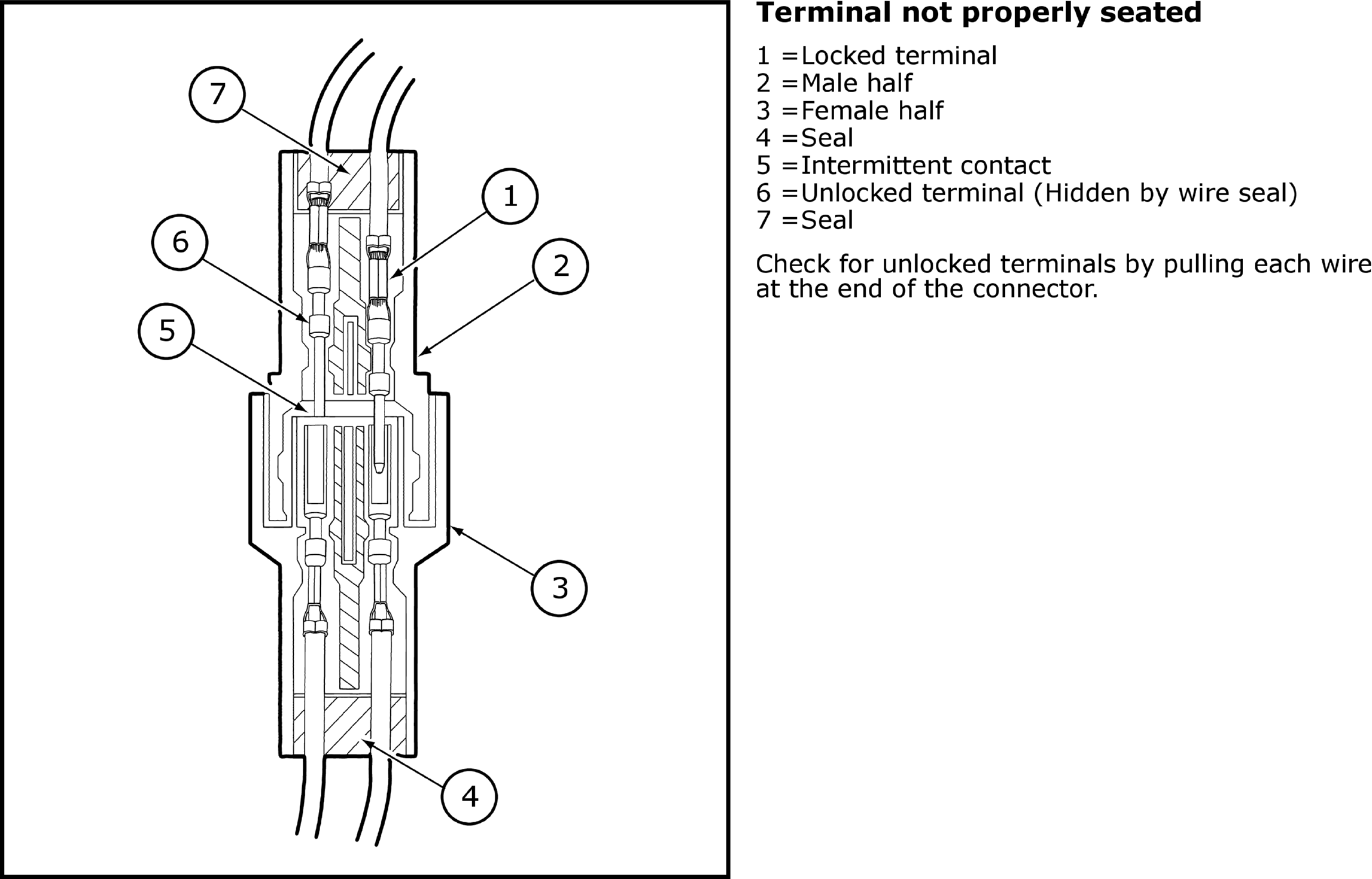

GFDW53620Courtesy of FORD MOTOR COMPANY

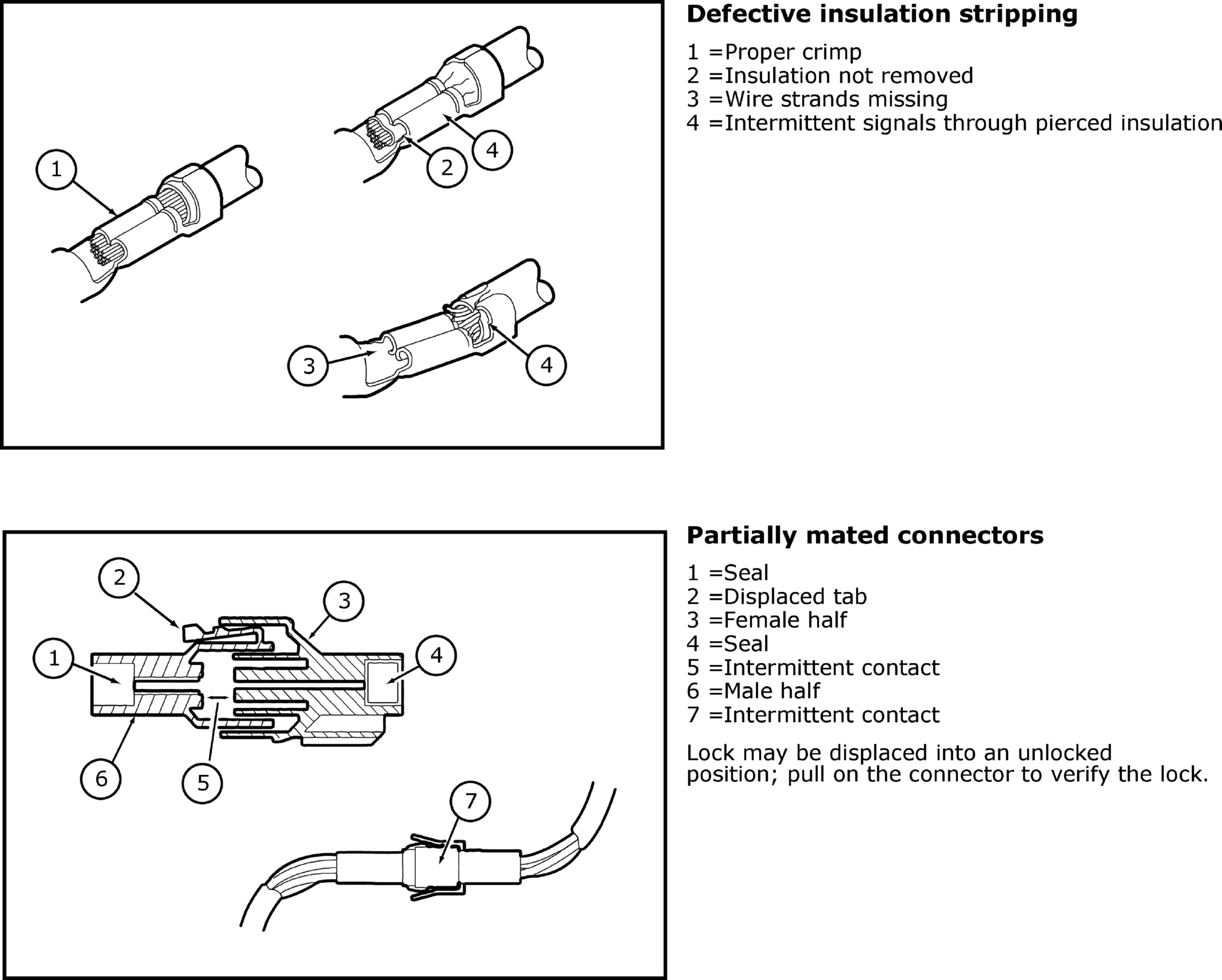

GFDW53621Courtesy of FORD MOTOR COMPANY

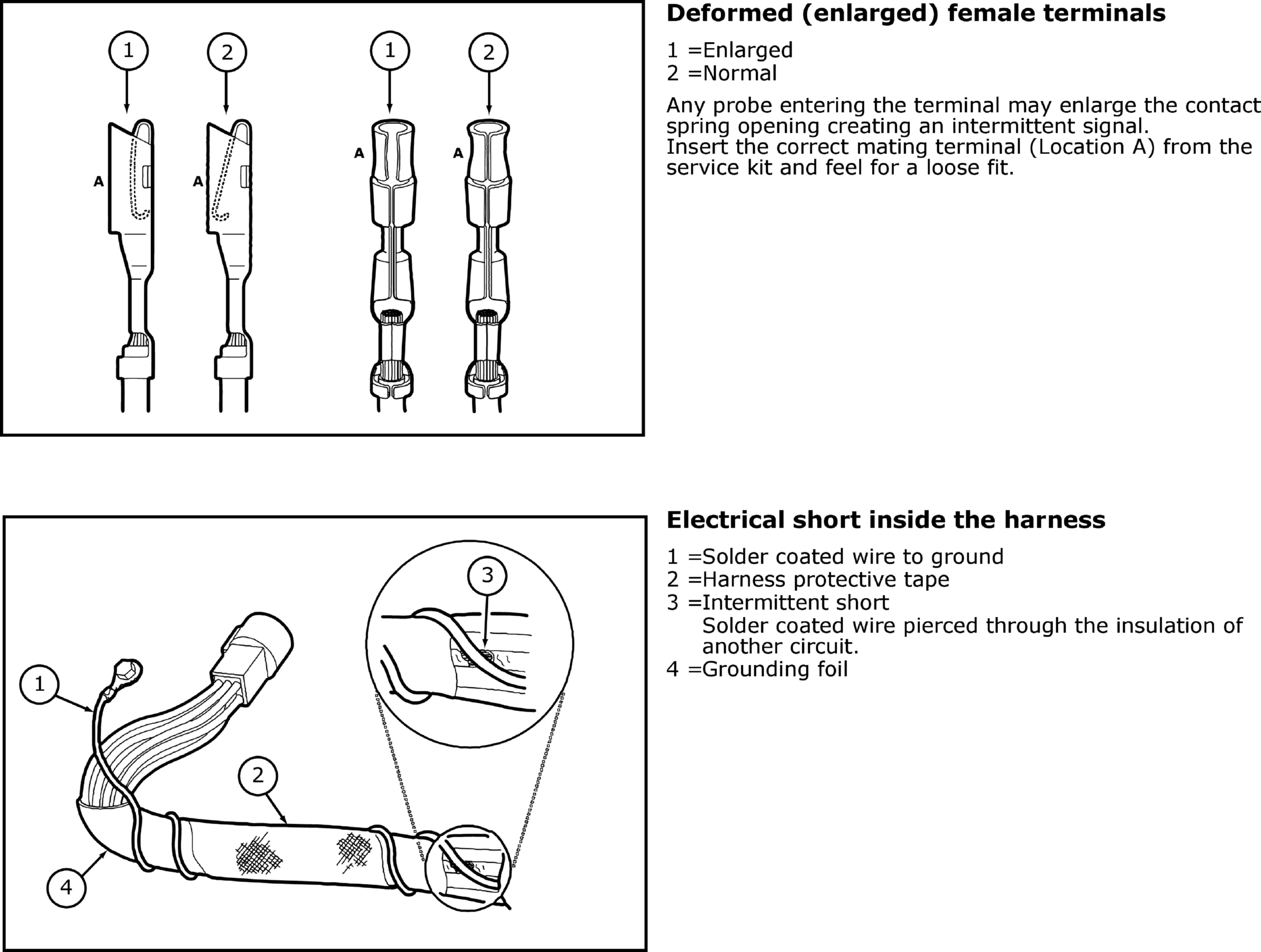

GFDW53622Courtesy of FORD MOTOR COMPANY

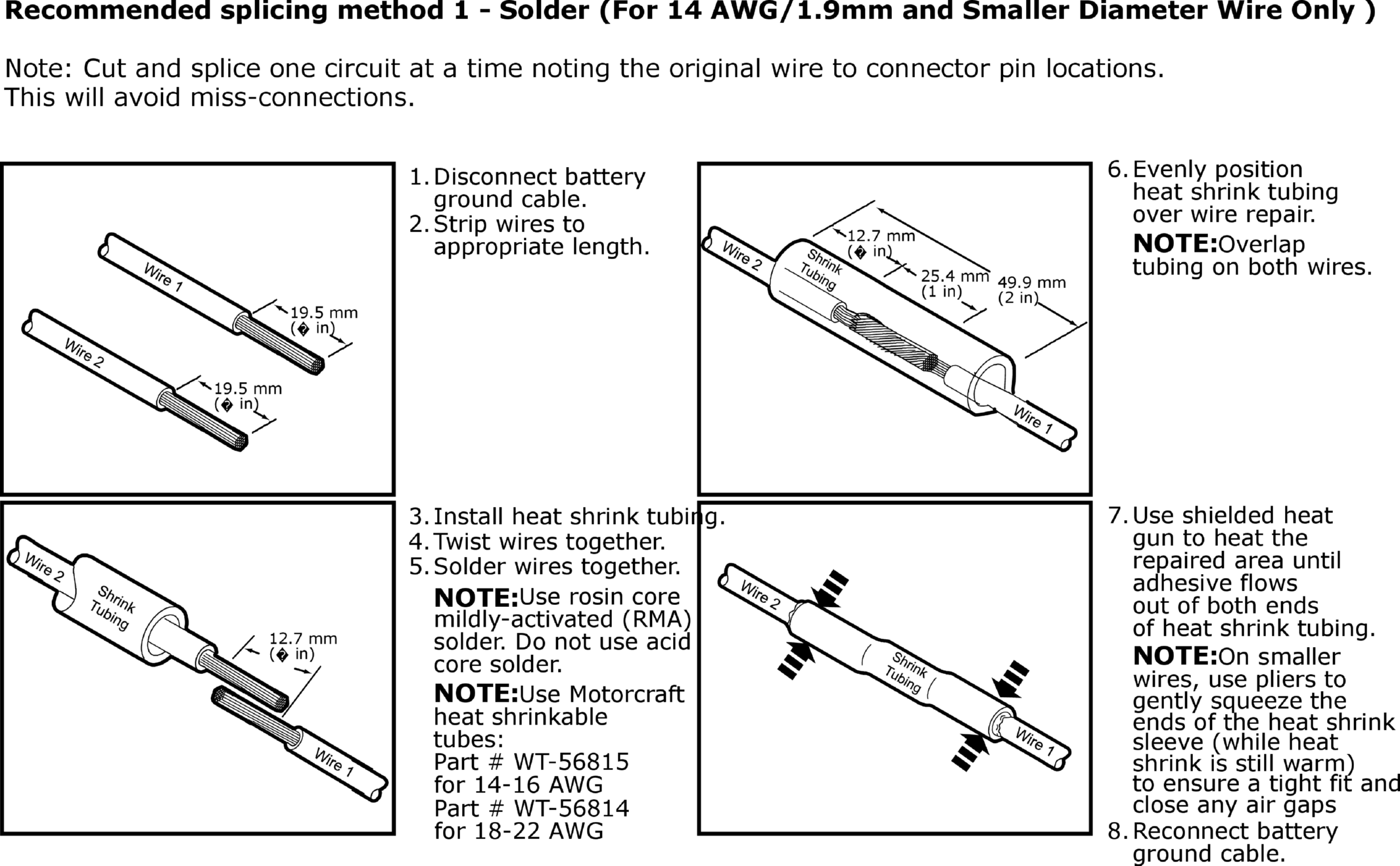

GFDW53623Courtesy of FORD MOTOR COMPANY

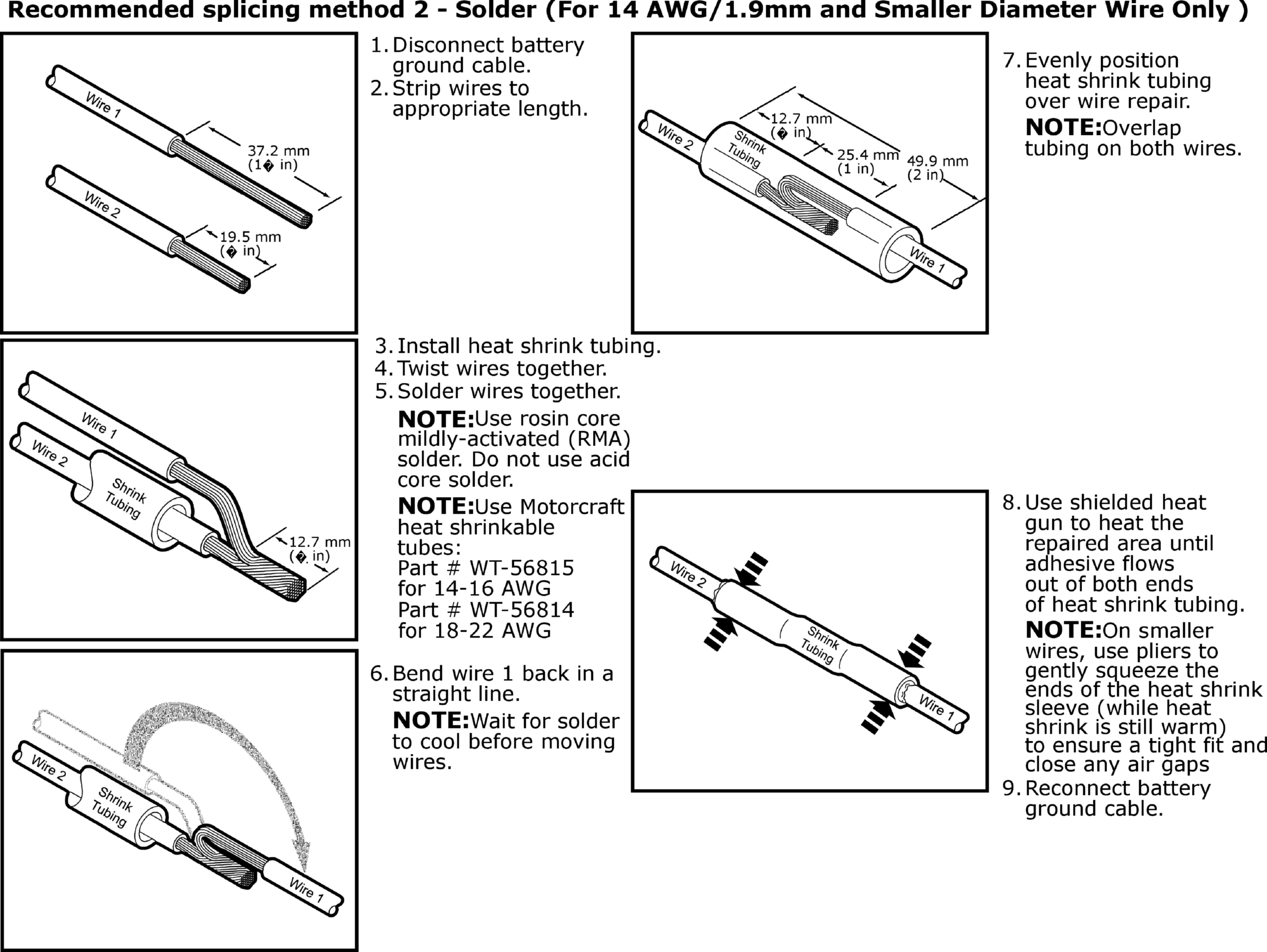

GFDW53624Courtesy of FORD MOTOR COMPANY

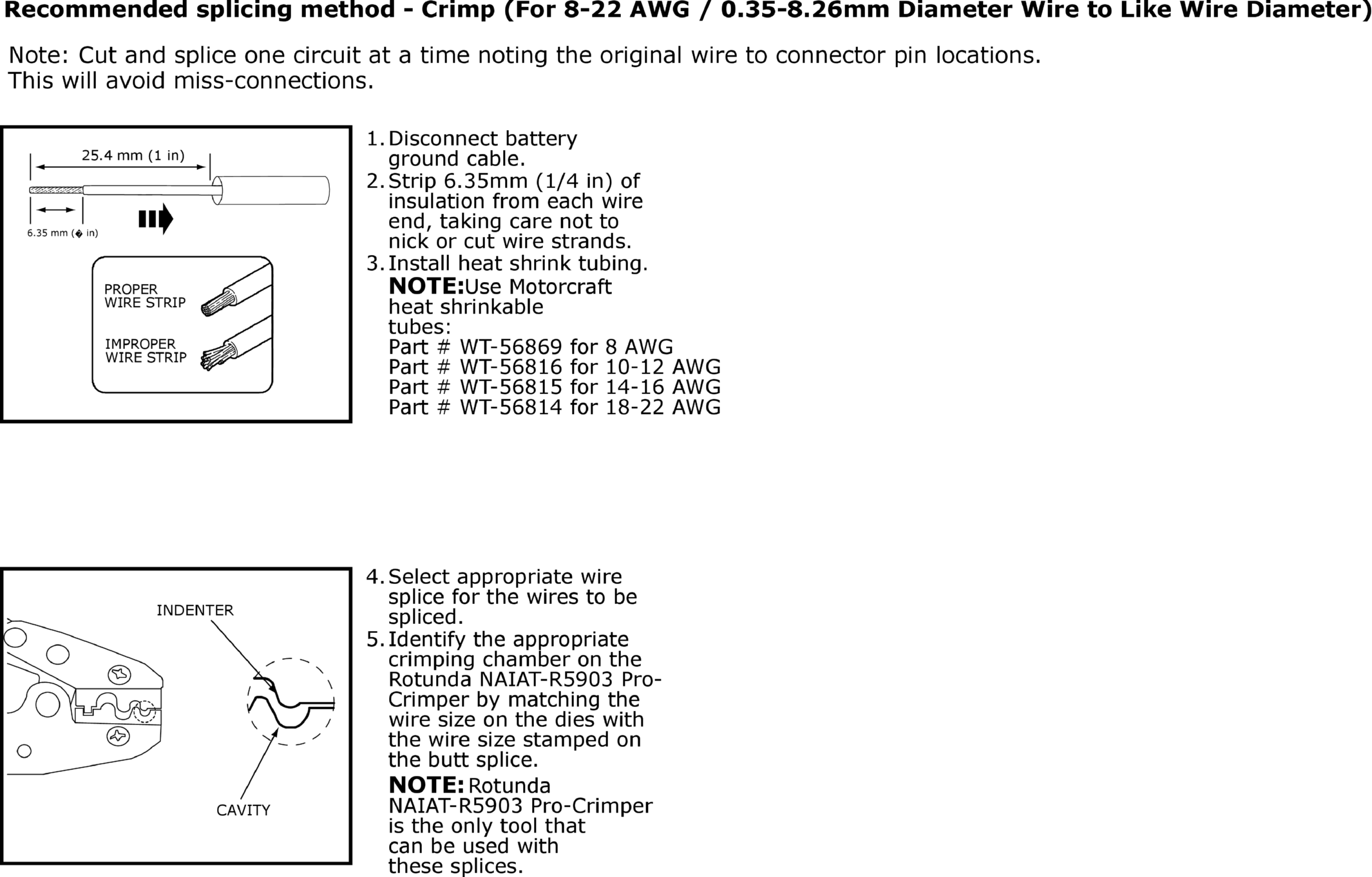

GFDW53625Courtesy of FORD MOTOR COMPANY

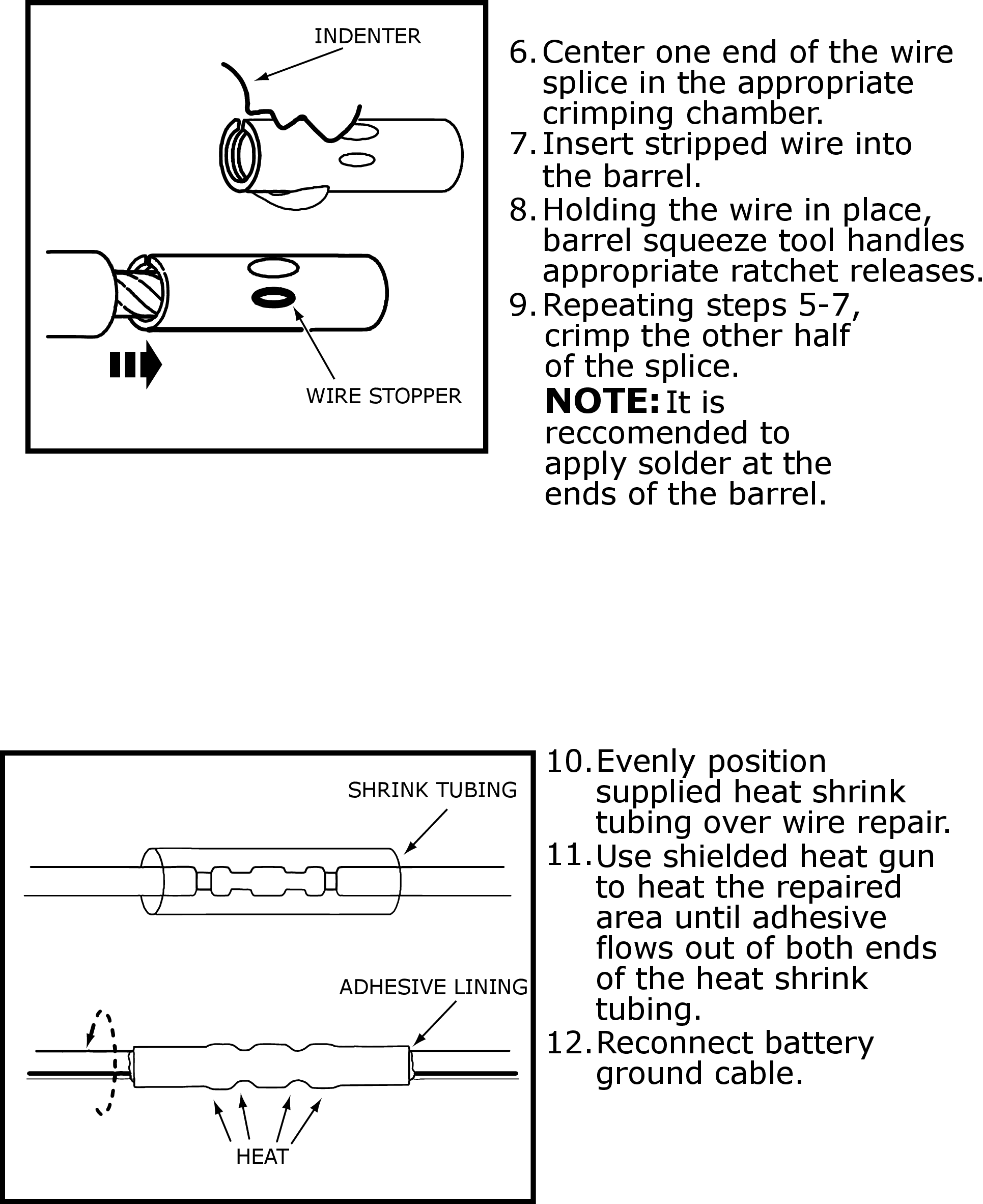

GFDW53626Courtesy of FORD MOTOR COMPANY

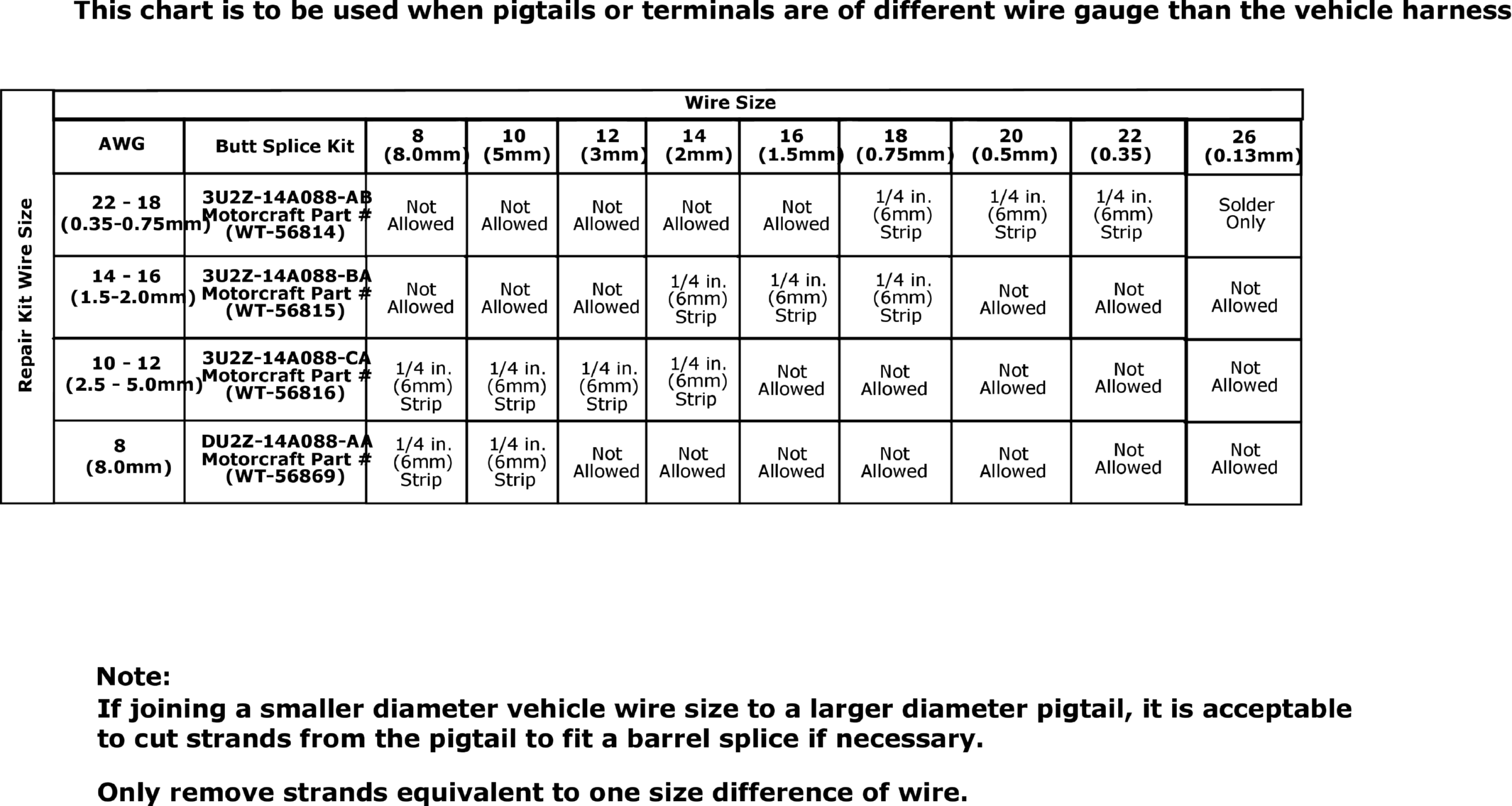

GFDW53627Courtesy of FORD MOTOR COMPANY
