Auxiliary Climate Control Assembly: Notes

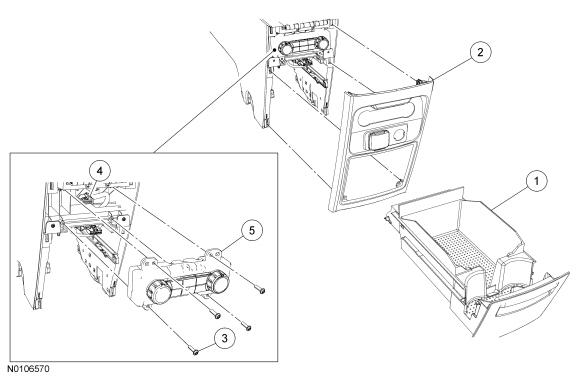

GFD58634Courtesy of FORD MOTOR COMPANY
Item Part Number Description
1 7413530 Floor console utility tray
2 74045E24 Floor console rear trim panel
3 - Auxiliary climate control assembly screw (4 required)
4 - Auxiliary climate control assembly electrical connector (part of 14B079)
5 19980 Auxiliary climate control assembly
