Axle Assembly: Notes
WARNING: This page is about a different variant/trim than selected.

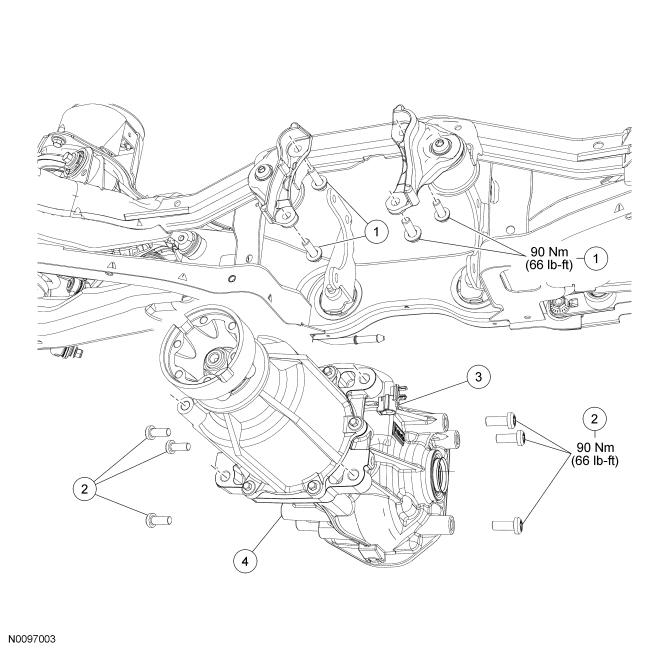

Rear Drive Unit (RDU) with stamped steel differential cover shown in illustration, RDU with aluminum cover similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | W713482 | Differential housing-to-front insulator bracket bolts (4 required) |
| 2 | W709862 | Side insulator bracket-to-rear axle differential bolts (6 required) (aluminum rear cover) |
| 2 | W716158 | Side insulator bracket-to-rear axle differential bolts (6 required) (stamped steel rear cover) |
| 3 | - | Active Torque Coupling (ATC) electrical connector (part of 4000) |
| 4 | 4000 | Rear axle assembly |
