Side Obstacle Detection (SOD) Module: Removal

NOTE: Module configuration is required when a new Side Obstacle Detection Control Module - Left (SOD-L) or Side Obstacle Detection Control Module - Right (SOD-R) is being installed. Upload the SOD-L or the SOD-R module configuration information to the scan tool. For additional information, refer to Programmable Module Installation (PMI) in Module Configuration .

1.

With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to Jacking and Lifting .

2.

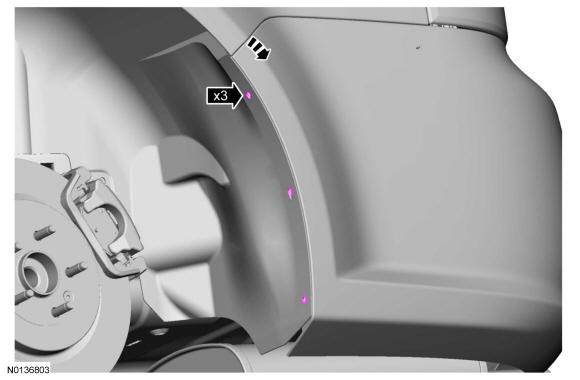

NOTE: Gently flex and pry away the rear bumper cover to access the SOD-L or the SOD-R.

Courtesy of FORD MOTOR COMPANY

3.

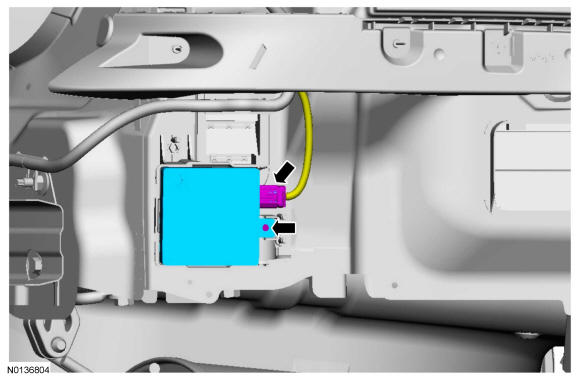

NOTE: RH side is shown in illustration, LH side is similar.

Courtesy of FORD MOTOR COMPANY

4.

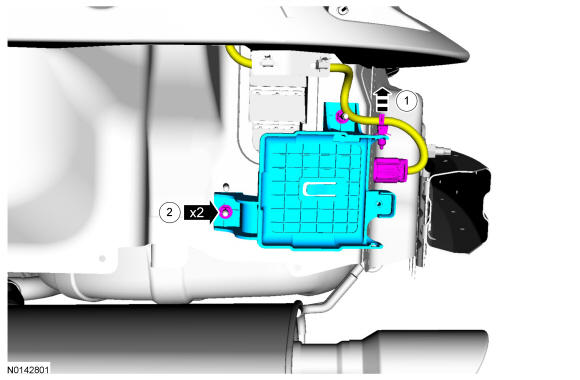

NOTE: RH side.

If required.

Courtesy of FORD MOTOR COMPANY

5.

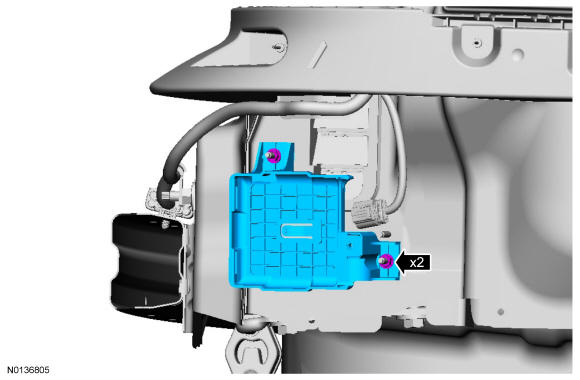

NOTE: LH side.

Courtesy of FORD MOTOR COMPANY
