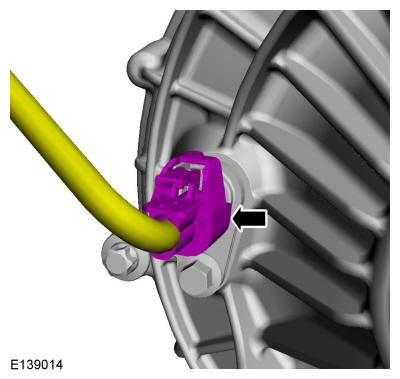

Transmission Control Module (TCM) Wiring Harness: Installation
- 2.NOTE: Make sure that the surface is clean and free of foreign material before taping around the component.

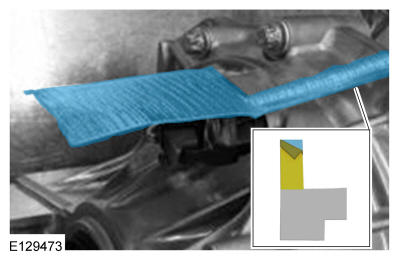

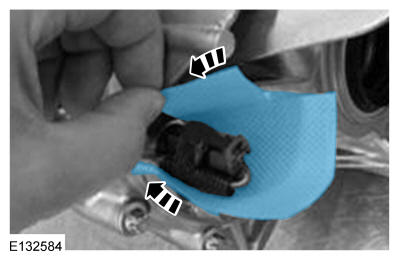

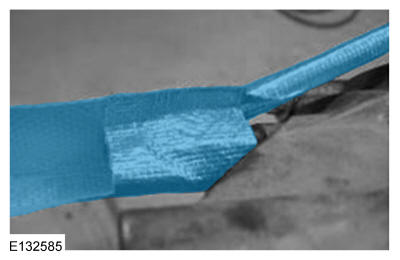

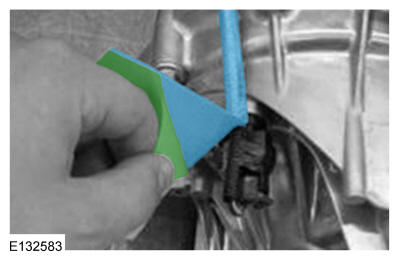

Remove the foil tape backing and wrap the foil tape around the OSS sensor wiring harness.
- 6.

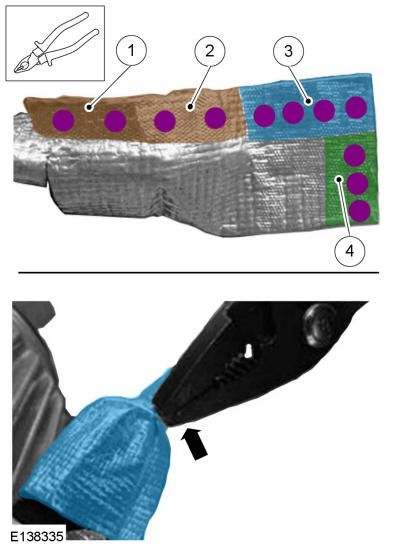

Using the locking plier, crimp around the edge starting from the sensor portion. Use the General Equipment: Locking Pliers
- 8.

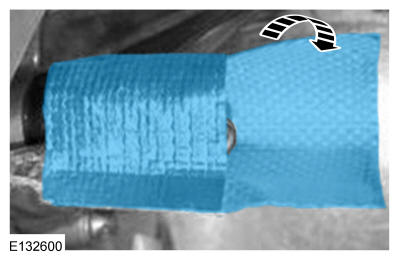

Using the locking plier, crimp around the edge starting from the sensor portion moving around. Use the General Equipment: Locking Pliers
