Multifunction Switch, Wiper/Washer Switch

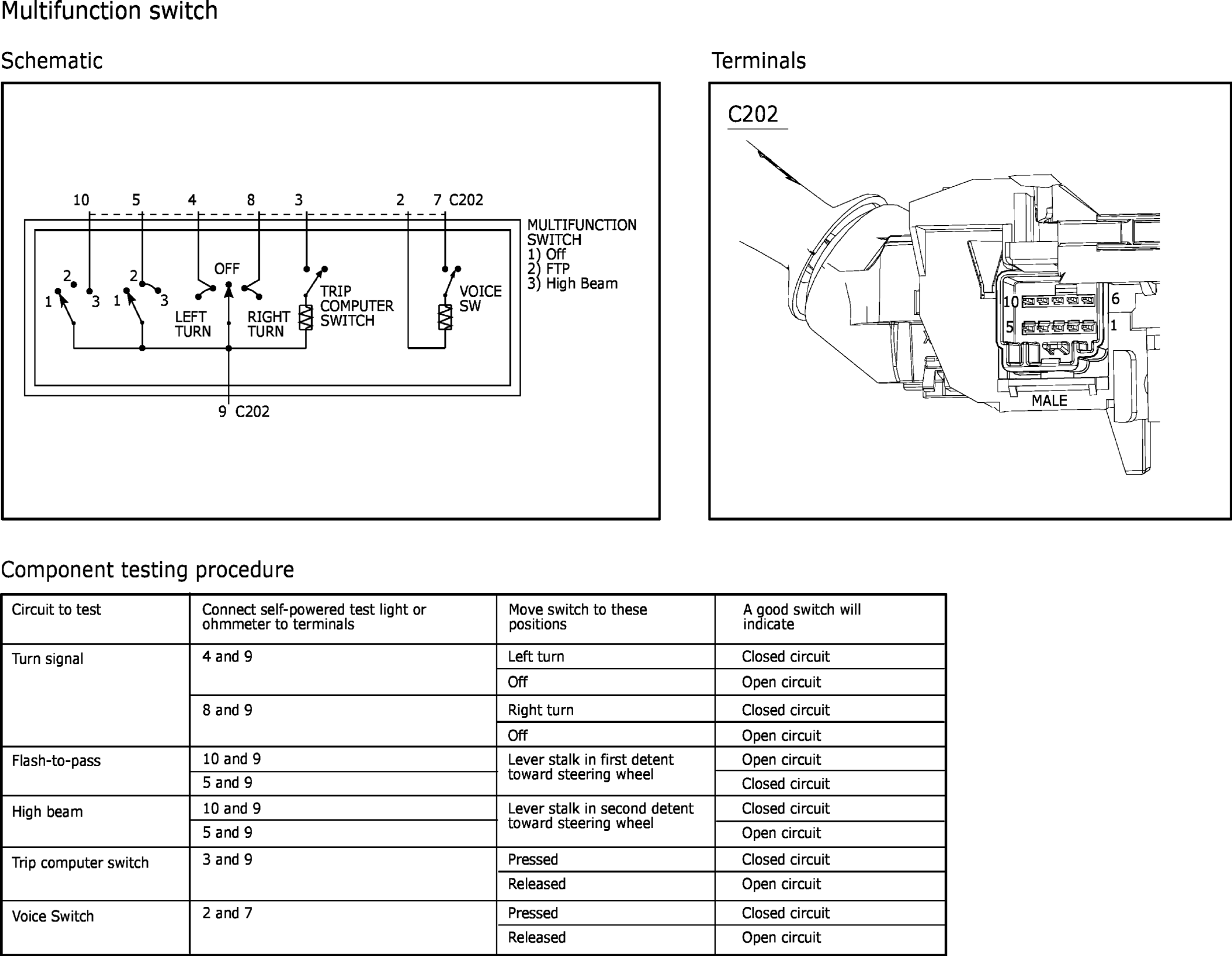

GFDW60990Courtesy of FORD MOTOR COMPANY

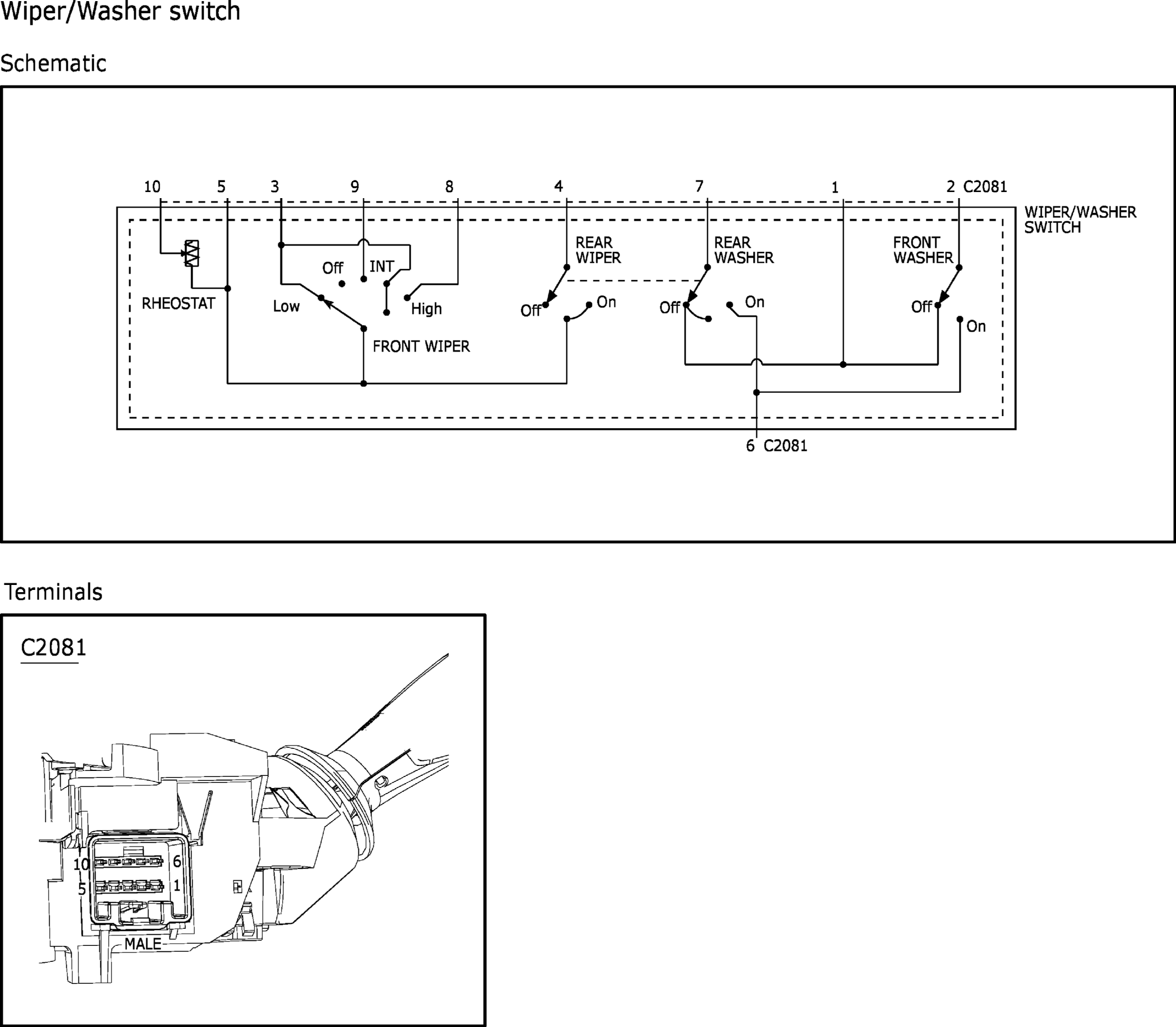

GFDW60991Courtesy of FORD MOTOR COMPANY

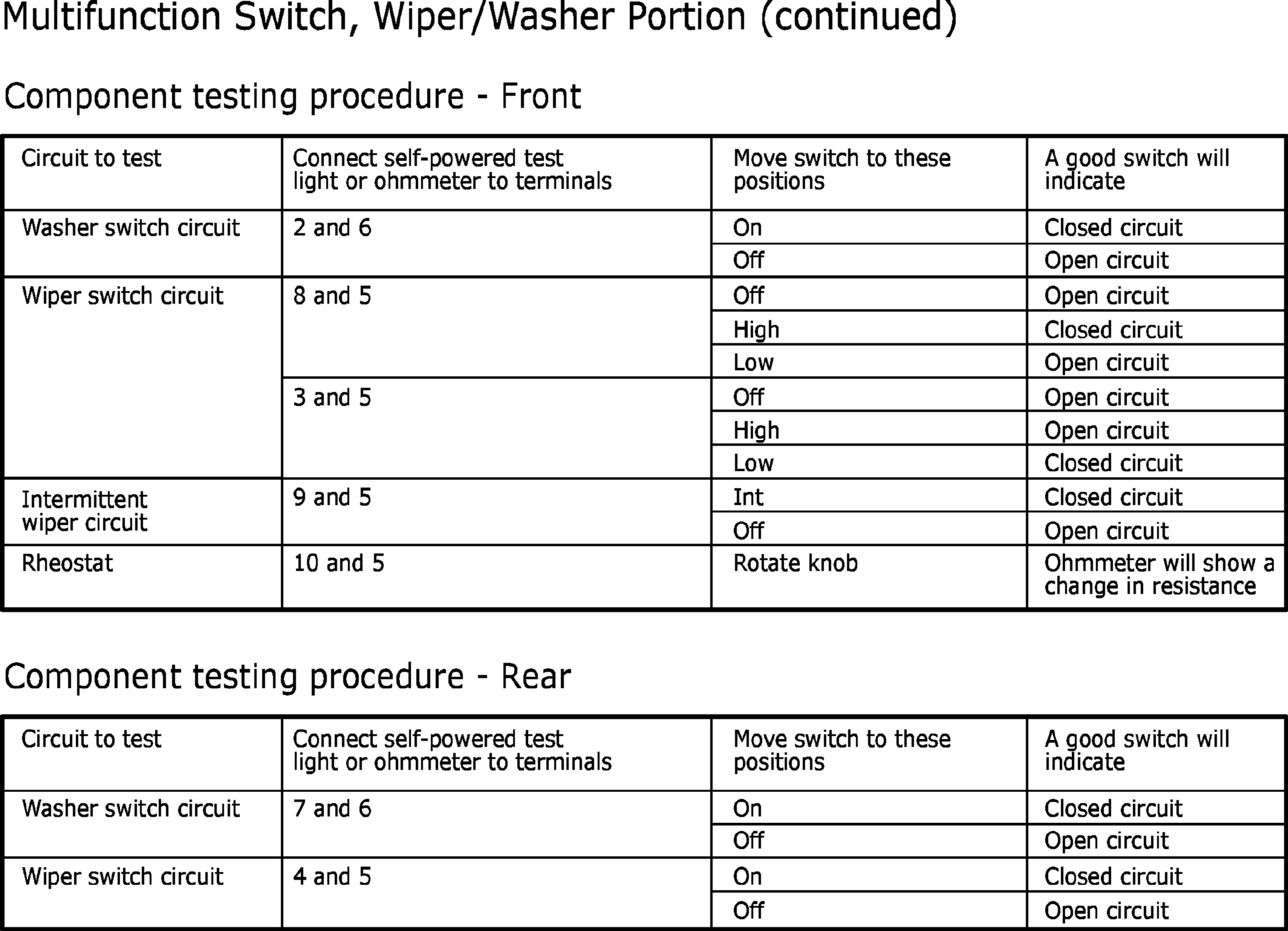

GFDW60992Courtesy of FORD MOTOR COMPANY
