Component Testing
>>
Ignition Switch
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

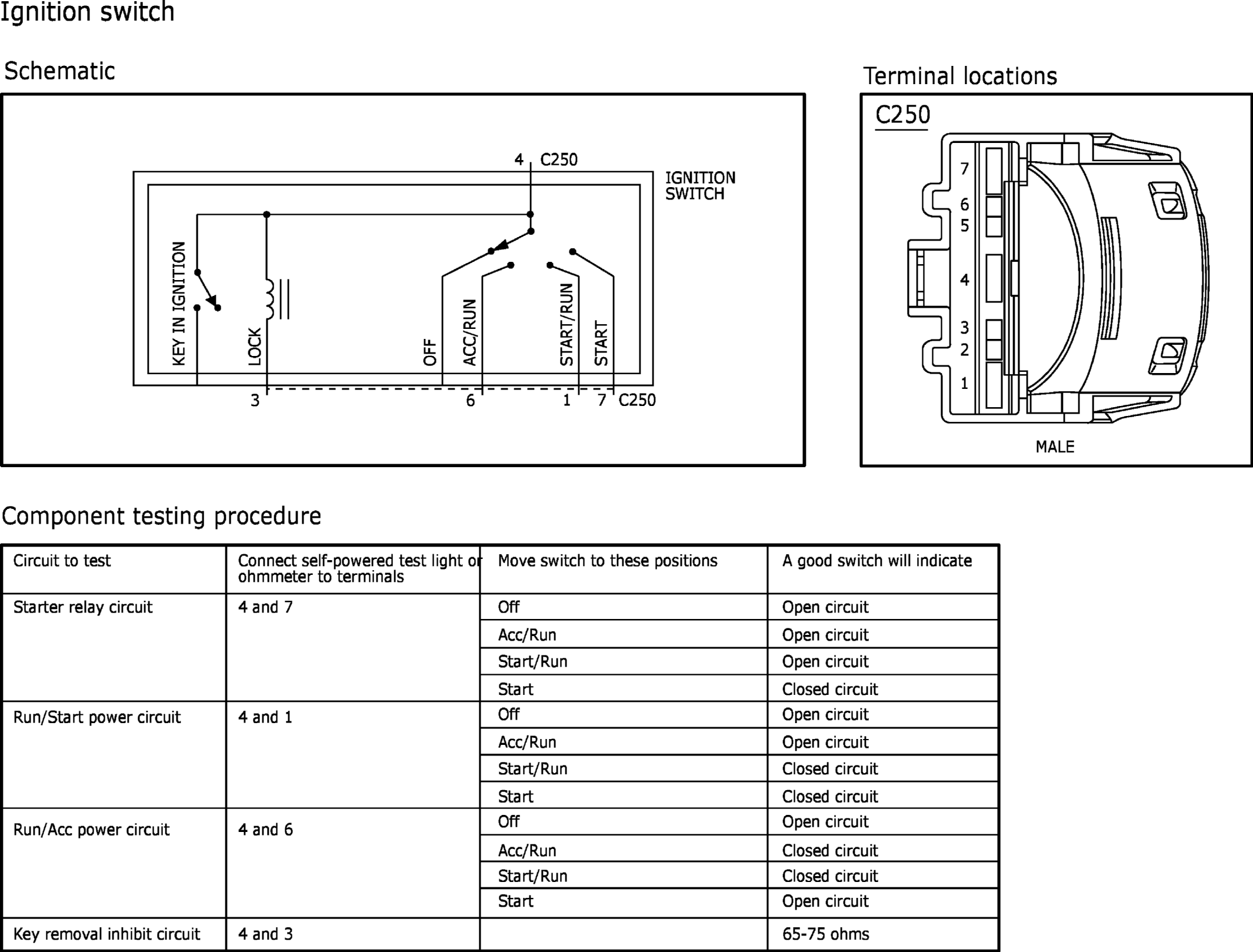

Ignition Switch
Courtesy of FORD MOTOR COMPANY
