Front Seat Backrest: Removal

NOTE: Driver seat shown, passenger seat similar.

1.

Remove the front seat. Refer to: Front Seat .

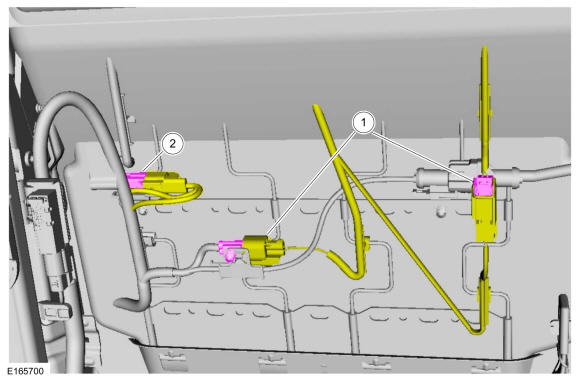

2.
- 1.

  If equipped.Disconnect the heated seat electrical connectors and position the wiring harness aside.
- 2.

  Disconnect the electrical connector and position the wiring harness aside.

GFD141619

Courtesy of FORD MOTOR COMPANY

3.

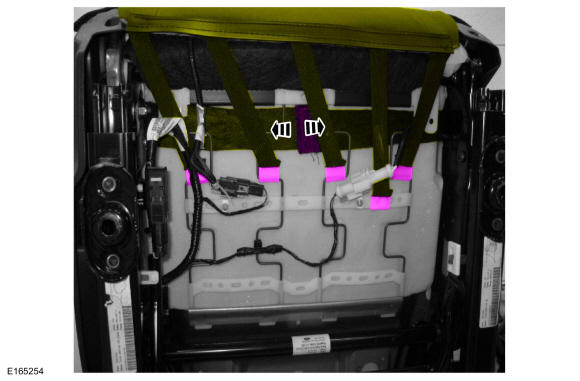

NOTE: Base seat shown, Recaro seat similar.

Detach the backrest cover straps and position the backrest cover aside.

GFD141598

Courtesy of FORD MOTOR COMPANY

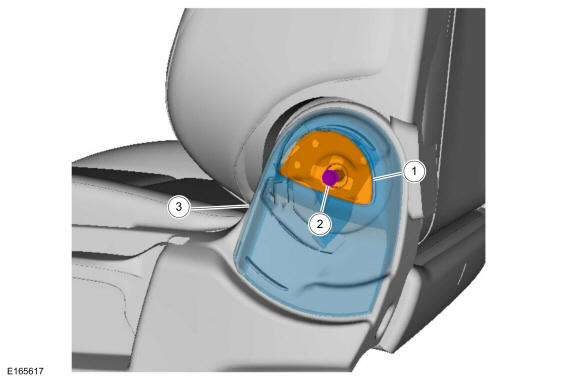

4.
- 1.

  Remove the bolt cover.
- 2.

  Remove the bolt.
- 3.

  Remove the recline handle.

GFD141608

Courtesy of FORD MOTOR COMPANY

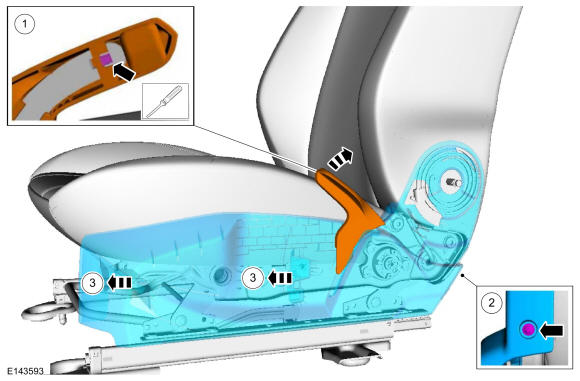

5.
- 1.

  If equipped.Release the tab and remove the height adjustment handle.Use the General Equipment: Flat Headed Screw Driver
- 2.

  Remove the screw.
- 3.

  Slide forward and remove the side shield.

GFD141609

Courtesy of FORD MOTOR COMPANY

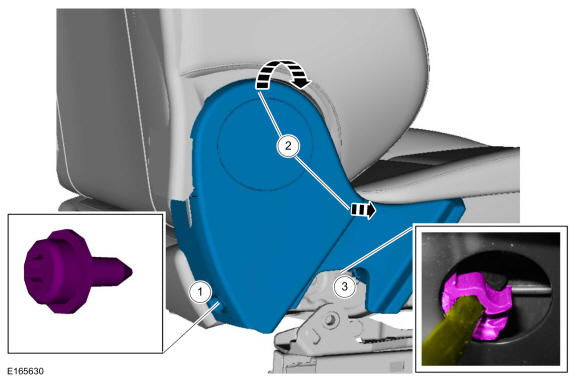

6.
- 1.

  Remove the screw.
- 2.

  Pull the recliner cover up then out.
- 3.

  Release the clip and remove the recliner cover.

GFD141610

Courtesy of FORD MOTOR COMPANY

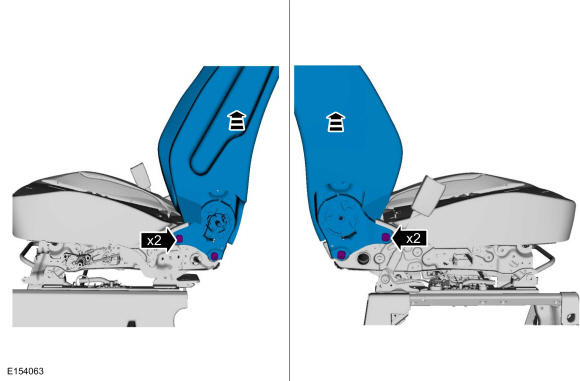

7.

Remove the bolts and the front seat backrest.

GFD141620

Courtesy of FORD MOTOR COMPANY
