Power Fold Seat Control Switch: Removal

NOTE: LH side shown in illustration, RH side similar.

  1. 1.

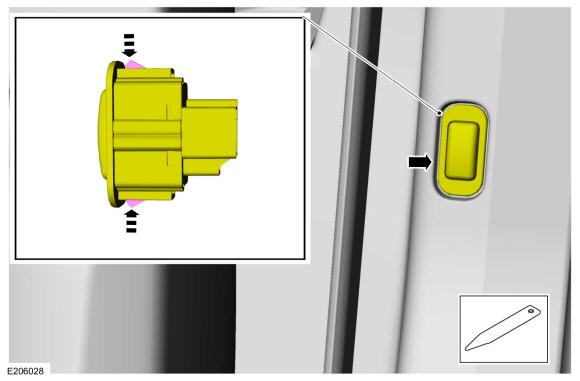

    Pry the power fold seat switch out of the load space trim panel.

    Use the General Equipment: Interior Trim Remover

GFD125652Courtesy of FORD MOTOR COMPANY

  1. 2.

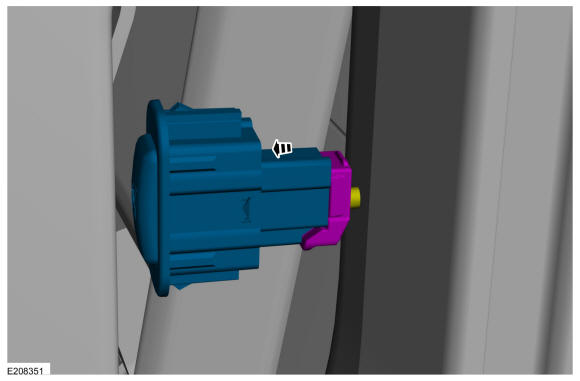

    Disconnect the electrical connector and remove the switch.
GFD125653Courtesy of FORD MOTOR COMPANY
