Windshield Wiper Motor: Installation
WARNING: This page is about a different car, the 2018 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

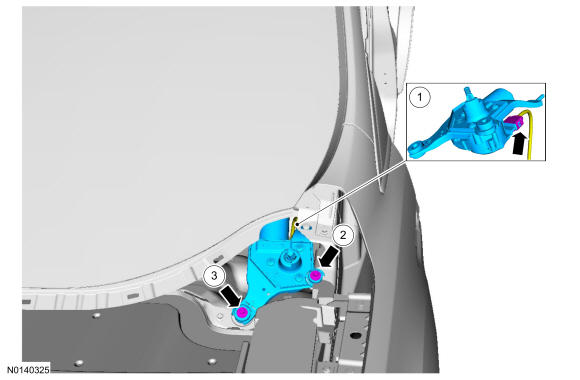

- Connect the windshield wiper motor electrical connector and install the windshield wiper motor bolts.
Torque
:2: 80 lb.in (9 Nm)
3: 80 lb.in (9 Nm)
- Install the cowl panel grille. REFER to: COWL PANEL GRILLE .
