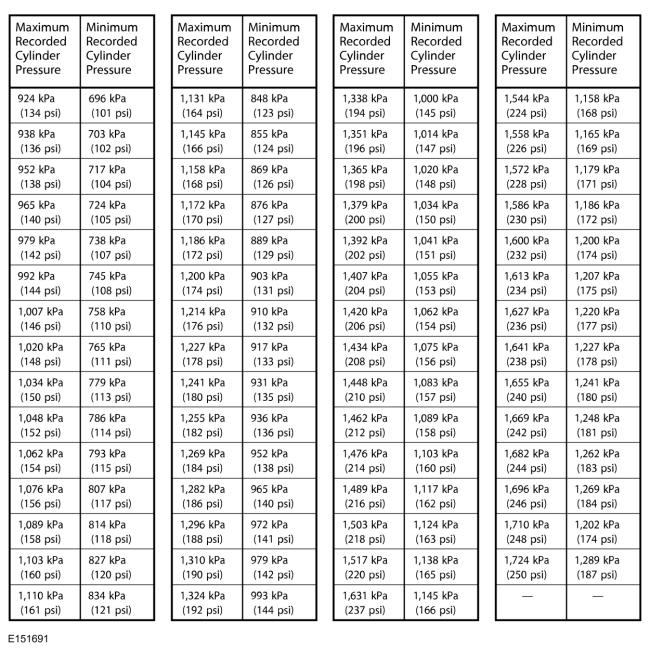

Compression Pressure Limit Chart

GFD223183Courtesy of FORD MOTOR COMPANY

If one or more cylinders reads low, squirt approximately one tablespoon of engine oil meeting Ford specification on top of the pistons in the low-reading cylinders. Repeat the compression pressure check on these cylinders.
