Removal And Installation: Solenoid: Installation

1.

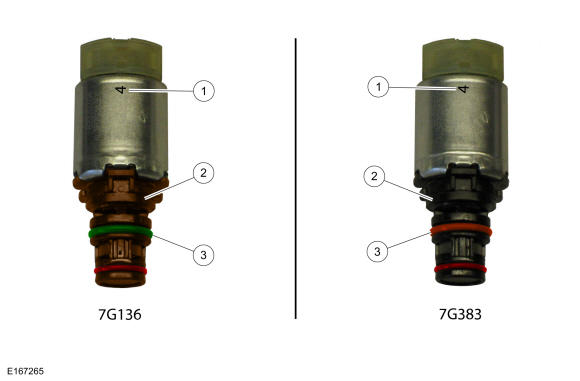

NOTE: Verify replacement component matches original component:
1. 1.

  Number
1. 2.

  Color
1. 3.

  Color

GFD149789

Courtesy of FORD MOTOR COMPANY

2.

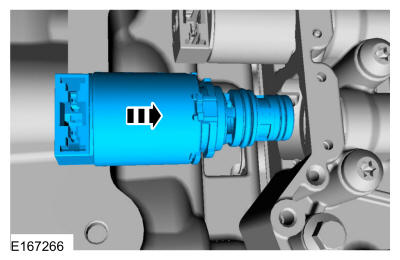

NOTE: Make sure the component is installed in the position noted before removal.

Install the solenoid(s) in the solenoid body.

GFD149790

Courtesy of FORD MOTOR COMPANY

3.

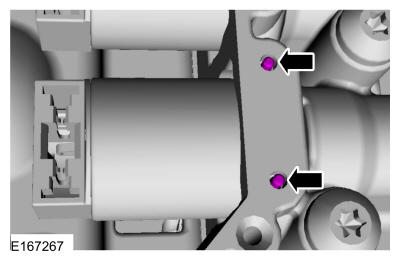

Install the solenoid retaining pin(s).

GFD149791

Courtesy of FORD MOTOR COMPANY

4.

Install the transmission internal wiring harness frame. Refer to: Transmission Internal Wiring Harness Frame .
