Third Row Seat Backrest Cover: Removal

NOTE: Removal steps in this procedure may contain installation details.

1.

Remove the seat head restraint guide sleeve. Refer to: Third Row Seat Head Restraint Guide Sleeve .

Courtesy of FORD MOTOR COMPANY

3.

On both sides. Remove the bolts and the seat backrest cover.
Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

4.

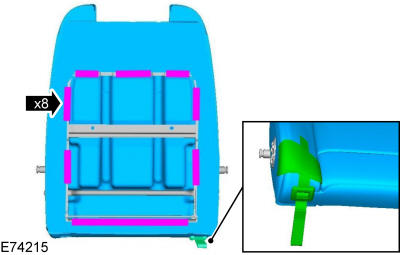

Position the backrest latch strap the backrest cover. Detach the J-clips and remove the seat backrest cover and foam as an assembly.

Courtesy of FORD MOTOR COMPANY

5.

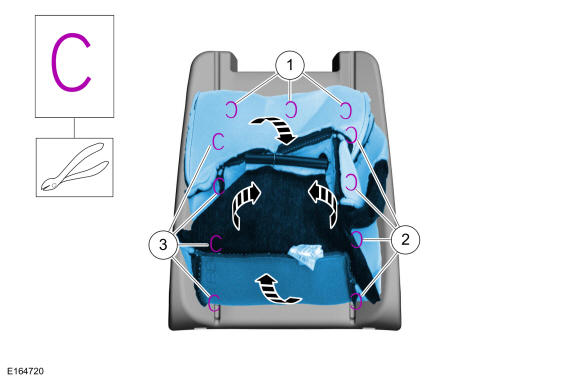

Invert the seat backrest cover. Remove the hog rings and remove the backrest cover from the foam pad.

Courtesy of FORD MOTOR COMPANY
