Rear Blower Motor Control Module

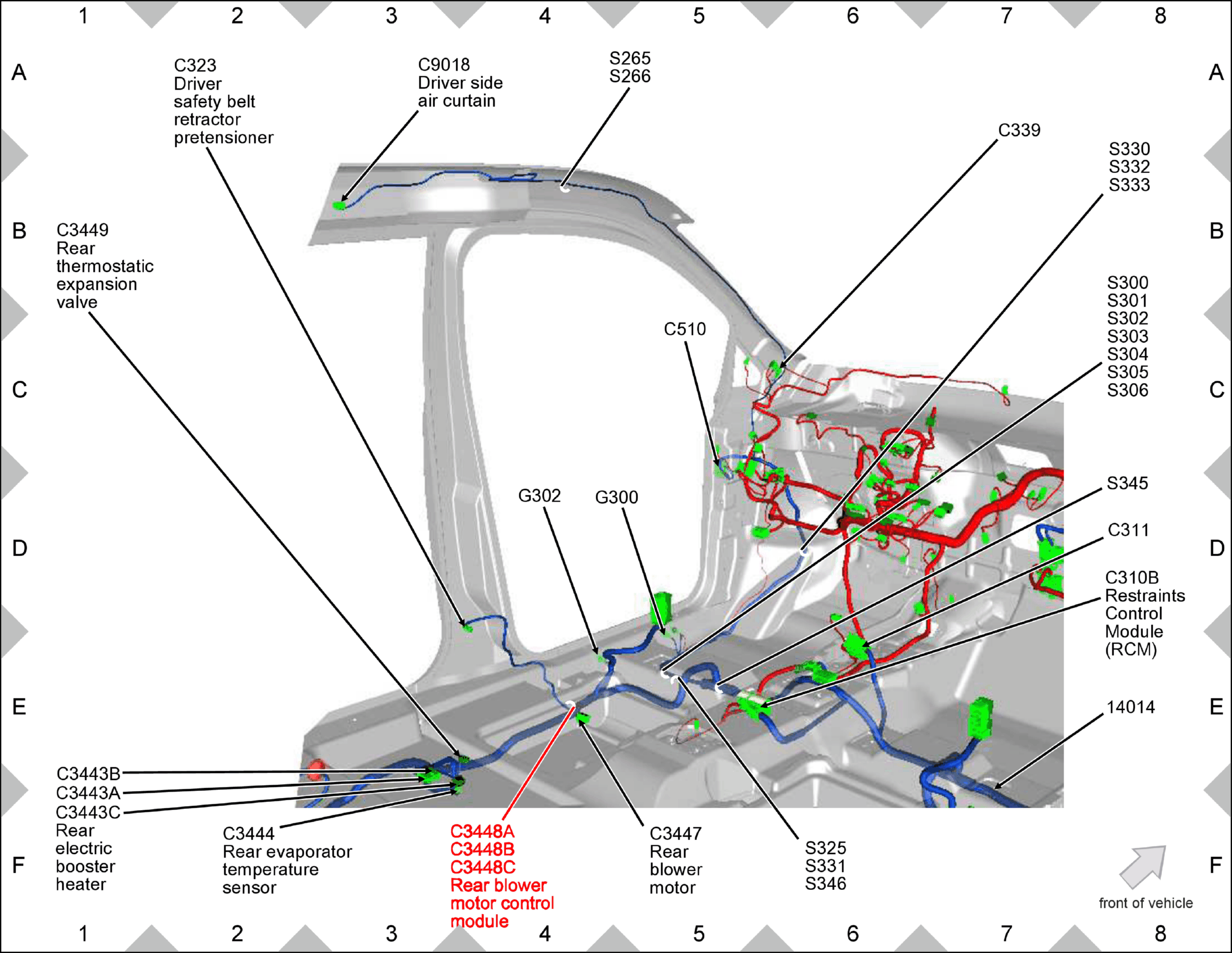

Fig 1: Rear Blower Motor Control Module Component Location
GFDW64353Courtesy of FORD MOTOR COMPANY
