Selector Lever Cable Adjustment

Adjustment

All vehicles

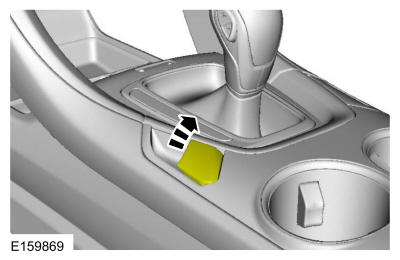

1. 1.

   Apply the parking brake.

Courtesy of FORD MOTOR COMPANY

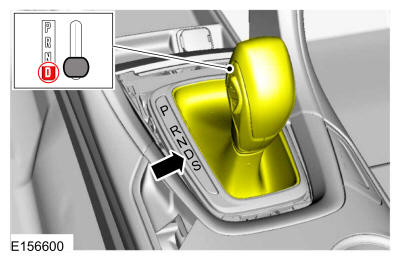

1. 2.

   Position the selector lever in D.

Courtesy of FORD MOTOR COMPANY

1.5L

1. 3.

   Remove the air cleaner. REFER to: Air Cleaner - 1.5L EcoBoost (118kW/160PS) - I4.

All vehicles

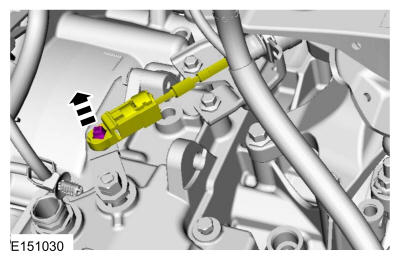

1. 4.

   Disconnect the selector lever cable from the manual lever.

Courtesy of FORD MOTOR COMPANY

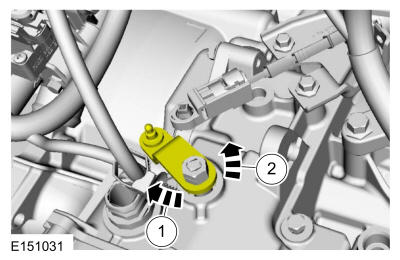

1. 5.



   1. 1.

      Rotate the manual control lever clockwise until it stops.

   1. 2.

      Rotate the manual control lever counterclockwise 1 detent.

Courtesy of FORD MOTOR COMPANY

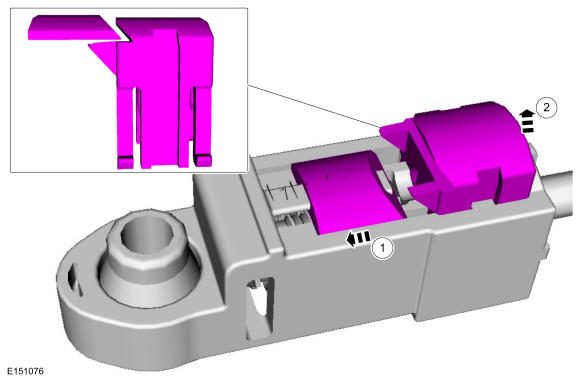

1. 6.

   Unlock the adjuster.

   1. 1.

      Move the slide to the left.

   1. 2.

      While holding the slide, position the adjuster lock upward.

Courtesy of FORD MOTOR COMPANY

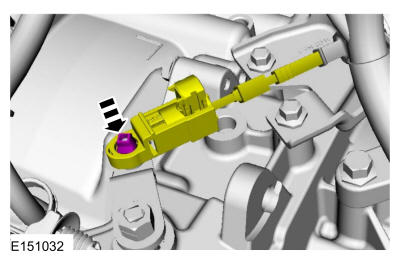

1. 7.

   Connect the selector lever cable to the manual lever.

Courtesy of FORD MOTOR COMPANY

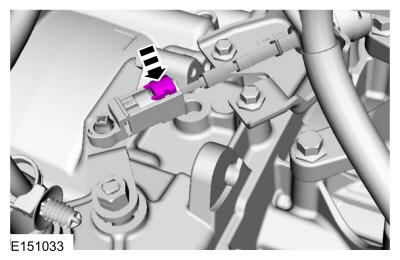

1. 8.

   Push the adjuster lock into place.

Courtesy of FORD MOTOR COMPANY

1.5L

1. 9.

   Install the air cleaner. REFER to: Air Cleaner - 1.5L EcoBoost (118kW/160PS) - I4.

All vehicles

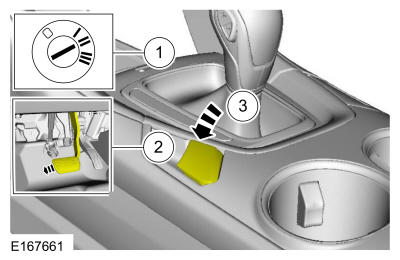

1. 10.


   • Set the ignition switch to the II position (Ignition ON).
   • Apply the brake.
   • Release the parking brake.

Courtesy of FORD MOTOR COMPANY

1. 11.

   Verify that the vehicle starts only in P and N and the reverse lamps illuminate in R.
