Lighting Switch Inspection

WARNING: This page is about a different car, the 2014 Hyundai Elantra GT and 2013 Hyundai Elantra GT. However, it is still accessible from the selected car via links, so may be relevant.

With the multifunction switch in each position, make sure that continuity exists between the terminals below. If continuity is not as specified, replace the multi-function switch.

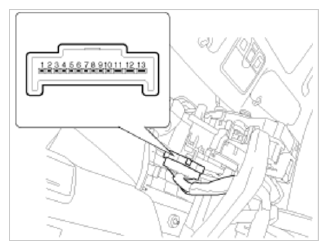

Fig 1: Identifying Lighting Switch Connector Pins
G09887298Courtesy of HYUNDAI MOTOR AMERICA
