Repair Procedures: Inspection
WARNING: This page is about a different car, the 2014 Hyundai Elantra GT and 2013 Hyundai Elantra GT. However, it is still accessible from the selected car via links, so may be relevant.

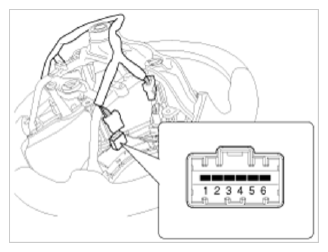

- Check the hands free remote control switch for resistance between terminals in each switch position.
Courtesy of HYUNDAI MOTOR AMERICA
| Switch |
Connector terminal |
Resistance (±1%) |
| Voice |
3 - 4 |
3.9 kΩ |
| End of call |
3 - 4 |
12.1 kΩ |
| Send |
3 - 4 |
34.1 kΩ |
