Repair procedures: Removal

WARNING: This page is about a different car, the 2014 Hyundai Elantra GT and 2013 Hyundai Elantra GT. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the crash pad center lower panel.

    (Refer to "MAIN CRASH PAD ASSEMBLY ")

  2. Loosen 2 screws after disconnecting the crash pad center lower panel connector (A).

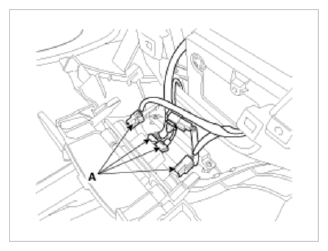

    Fig 1: Identifying Crash Pad Center Lower Panel Connector Screws
    G09887282Courtesy of HYUNDAI MOTOR AMERICA
  3. Remove the multimedia jack (B) after releasing the fixed hooks (A).
    Fig 2: Removing Multimedia Jack
    G09887283Courtesy of HYUNDAI MOTOR AMERICA
