Removal And Installation: Condenser: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removal steps in this procedure may contain installation details.
- 1.
Recover the refrigerant. Refer to: Air Conditioning (A/C) System Recovery, Evacuation and Charging .
- 2.
Remove the front bumper cover. Refer to: Front Bumper Cover
.

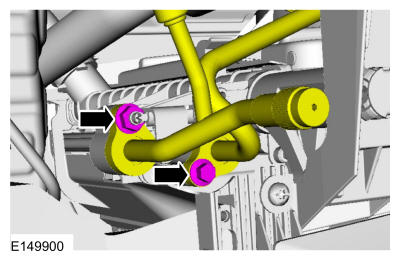

- 3.
Remove the nut, bolt and position the A/C lines aside.Torque: 133 lb.in (15 Nm)
 Courtesy of FORD MOTOR COMPANY
|

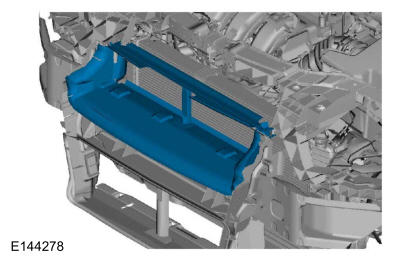

- 4.
Remove the bezel.
 Courtesy of FORD MOTOR COMPANY
|

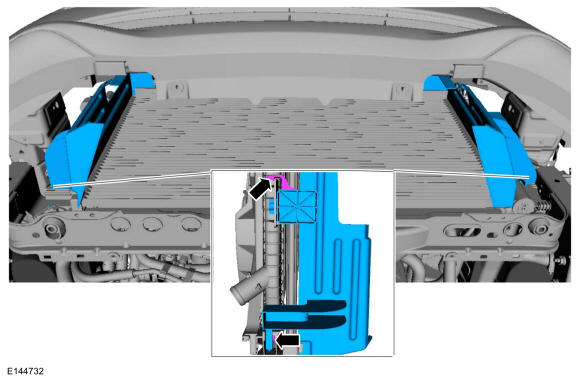

- 5.
Release the tabs and remove the side air deflectors.
 Courtesy of FORD MOTOR COMPANY
|

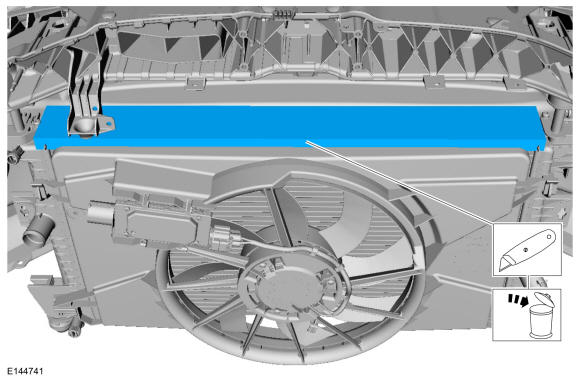

- 6.
Remove the foam seal.
 Courtesy of FORD MOTOR COMPANY
|

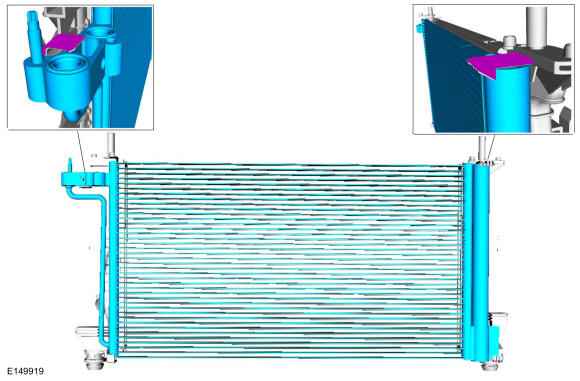

- 7.
Release the tabs and remove the condenser.
 Courtesy of FORD MOTOR COMPANY
|
