Component Locations

3.5L Ti-VCT

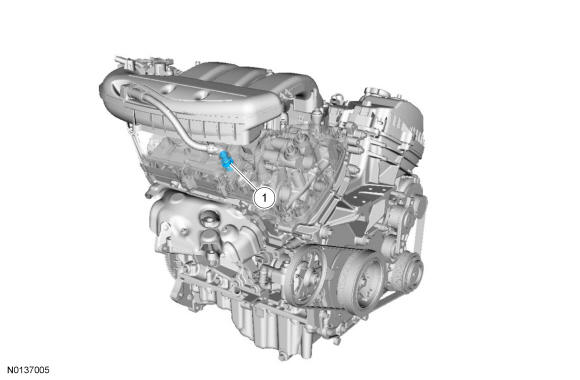

GFD57615Courtesy of FORD MOTOR COMPANY
Item Description Comments
1 PCV valve -

3.5L GTDI

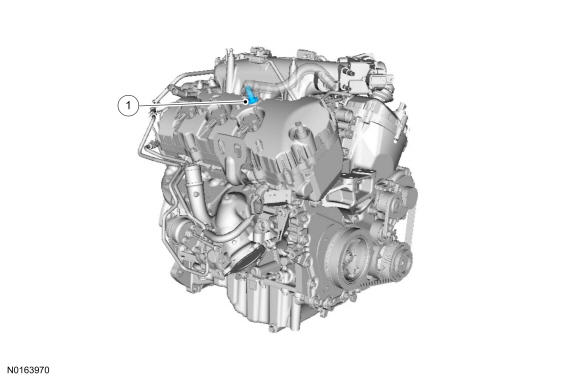

GFD57616Courtesy of FORD MOTOR COMPANY
Item Description Comments
1 PCV valve -
