Removal And Installation

RH side

• 1.


  NOTE: The upper intake manifold must be removed to access the RH ignition coil-on-plugs.

  Remove the upper intake manifold. For additional information, refer to Engine 3-5L Ti-VCT .

Both sides

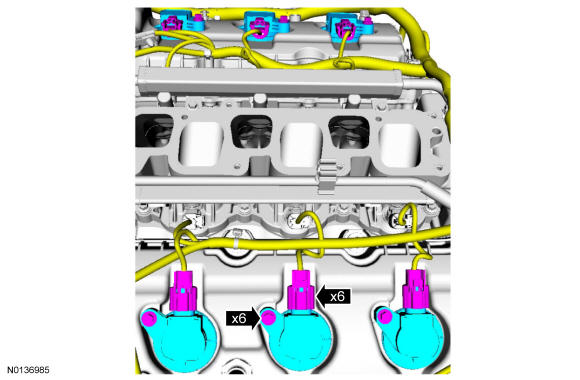

• 2.


  NOTE: When removing the ignition coil-on-plugs, a slight twisting motion will break the seal and ease removal.
  NOTE: Before installing the ignition coil-on-plug apply a small amount of dielectric grease to the inside of the ignition coil-on-plug boots.
  • Tighten to 7 Nm (62 lb-in).

Courtesy of FORD MOTOR COMPANY

• 3.

  Inspect the ignition coil-on-plug rubber seals and boots for cracks, rips, or tears. Replace any damaged coil-on-plug rubber seals or boots.

Courtesy of FORD MOTOR COMPANY

• 4.

  To install, reverse the removal procedure.
